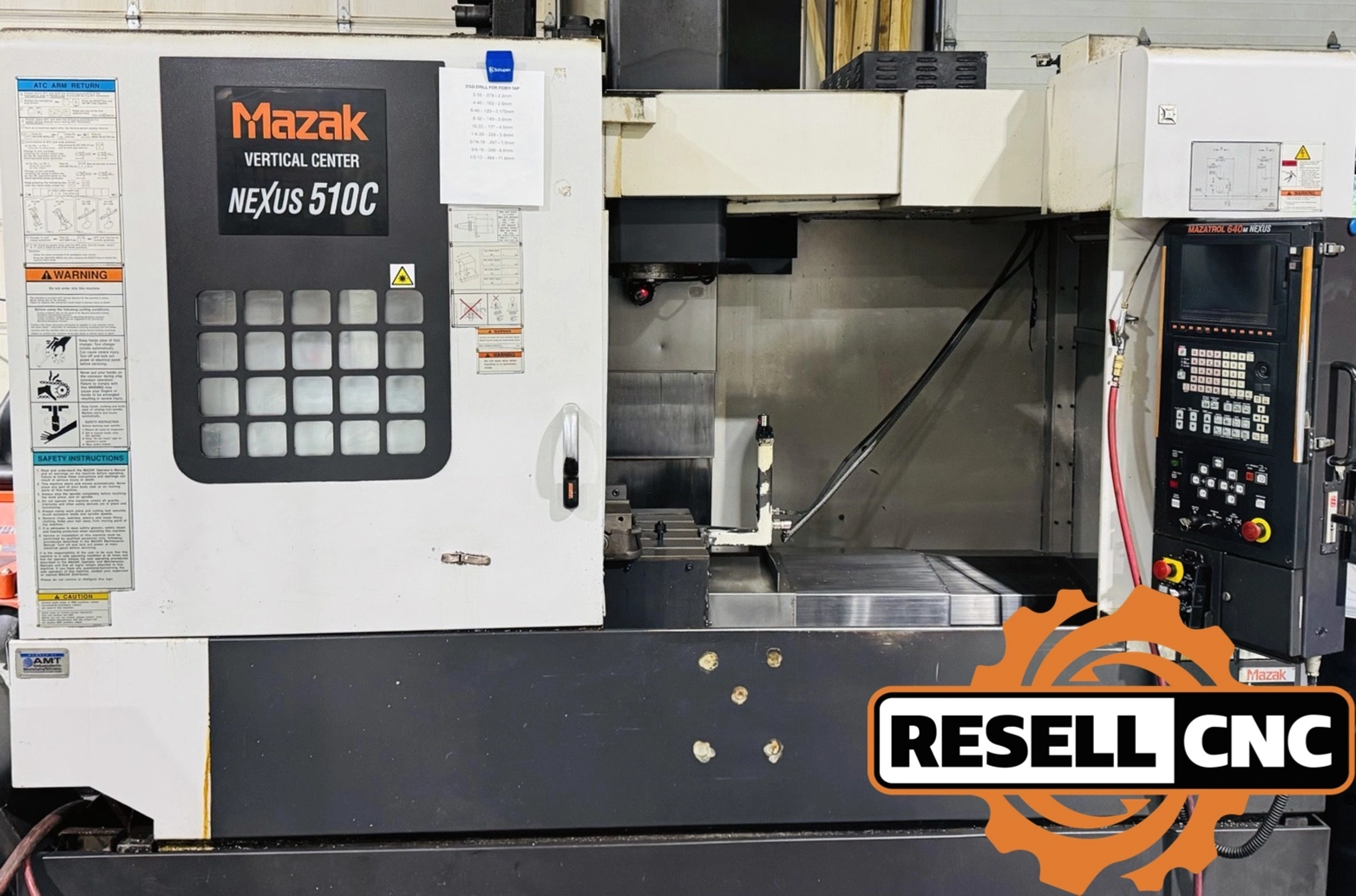

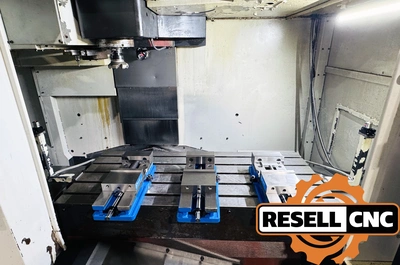

USED 2004 Mazak VCN-510C

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Tool Setter

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Control Make Model: Mazatrol 640MN CNC Control
Coolant Type S: Thru-Spindle Coolant
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 2646.0
Max Tool Diameter: 3.15
Max Tool Diameter Adjacent: 4.92
Max Tool Length: 13.78
Max Tool Weight: 17.64
Number Of Pallets: 2.0
Programmable Tailstock: false
Rapid Traverse: 1417
Rotary Table Trunnion: None
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 30
Spindle Nose To Table Top: 5.90-25.98
Spindle Speed: 12000.0
Spindle Taper Type: CAT#40
Sub Spindle: false
Tailstock: false
Tool Changer Type: Side Mount
Tool Change Time: 1.3
Tool Magazine Capacity: 30.0
Twin Turret: false
Vertical Table Pallet Size: 51.2" x 21.6
X Travel: 41.3
Y Axis: false
Y Travel: 20.08
Z Travel: 20.08
