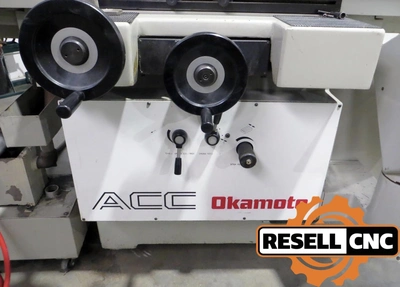

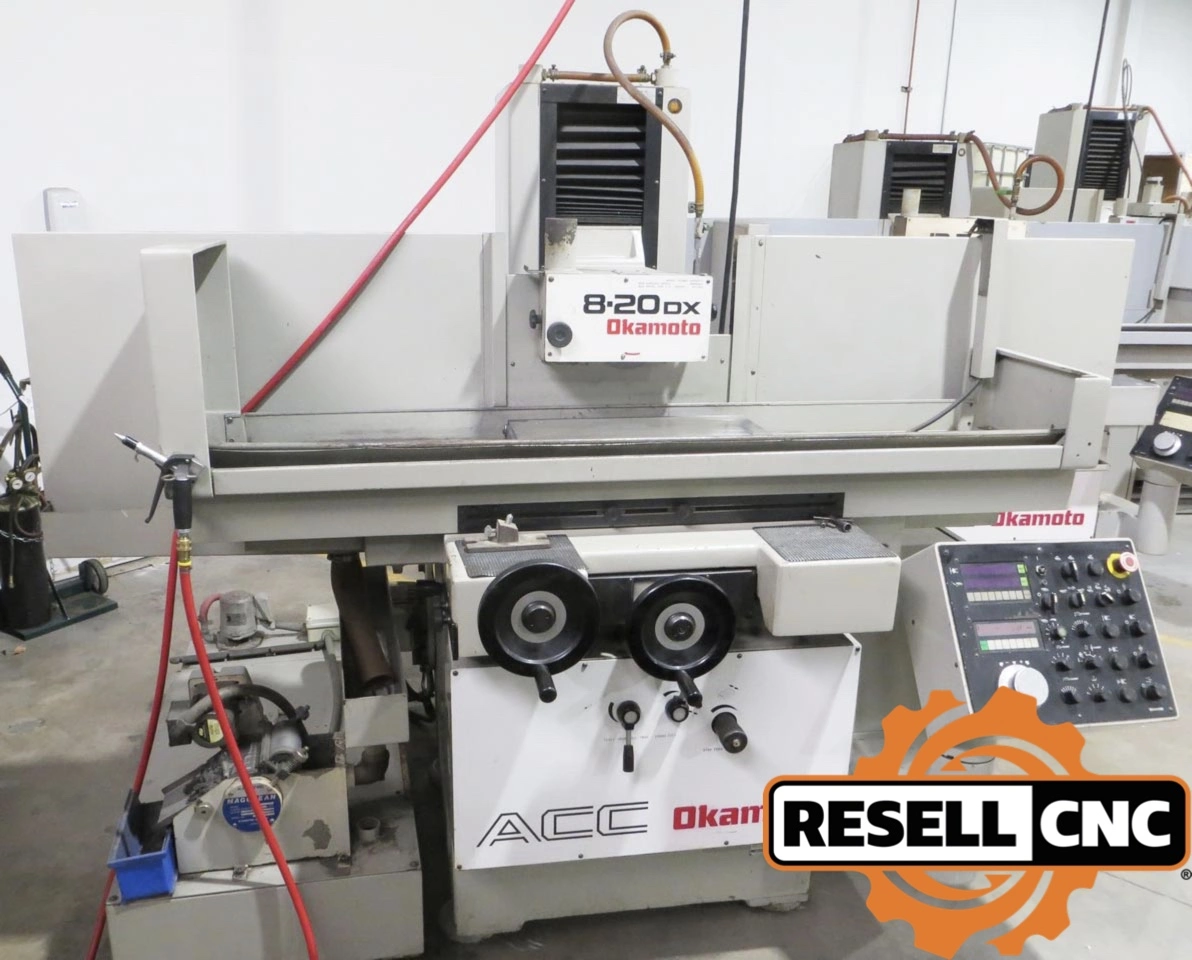

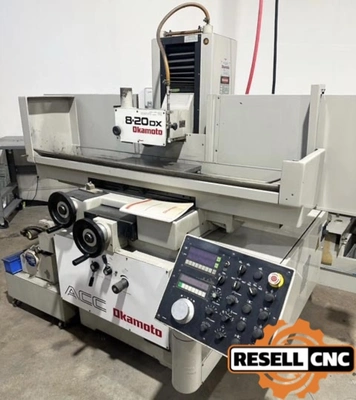

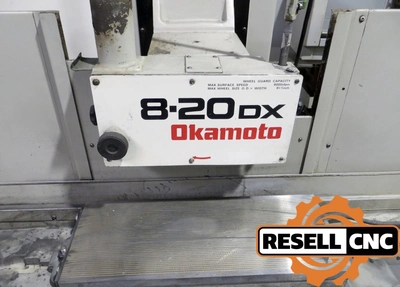

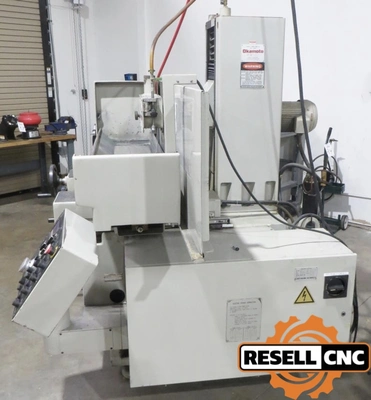

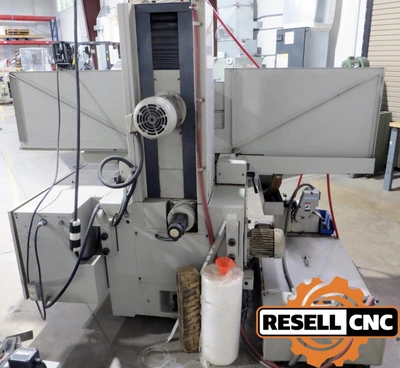

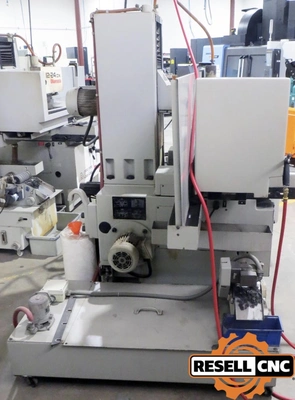

USED Okamoto ACC8-20DX

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false

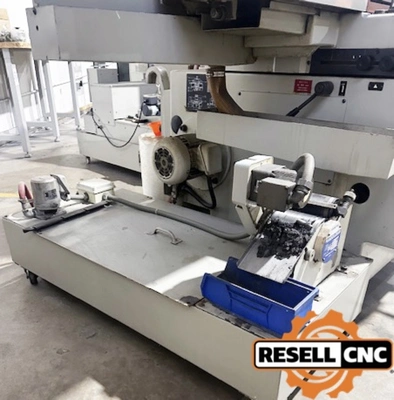

Additional Machine Specs: Filtration Unit with Kanetec Magclean Magnetic Separator

Maximum Table Movement (Manual): 25.6”

Maximum Distance from Spindle/Grinding Wheel to Table: 15.7”

Maximum Table Load (Including Chuck): 440 lbs

Grinding Wheel Size: 8” diameter x 1” width x 1.25” bore

Wheel Speed: 3,600 RPM

Spindle Motor: 2 HP

Hydraulic Motor: 1 HP

Vertical Rapid Feed and Downfeed Motor: 0.5 HP AC Servo

Power Consumption (with chuck and coolant): 4.5 kVA



Auto Longitudinal Feed Rate: 3 – 82 FPM

Rapid Wheelhead Feed Rate: 40 IPM

Auto Wheelhead Downfeed Increments: 0.00005” – 0.0015”

Manual Downfeed (Micro Feed): 0.00001”/0.0001”/0.001”

Manual Downfeed (Hand Feed per Revolution): 0.001”/0.01”/0.1”

Number of Spark-Out Times: 0 – 5

Auto Cross Feed (Intermittent): 0.02 – 0.4”

Auto Cross Feed (Continuous): 4 – 40 FPM

Cross Manual Feed (Hand Feed per Revolution): 0.25”

Cross Manual Feed (Graduation of Handwheel): 0.001”

B Axis: false
Capacity: 440.0
C Axis: false
Electrical: 230V
Grinder Type: Surface Reciprocating
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 2
Sub Spindle: false
Tailstock: false
Twin Turret: false
Vertical Table Pallet Size: 8" x 21.6"
Y Axis: false
