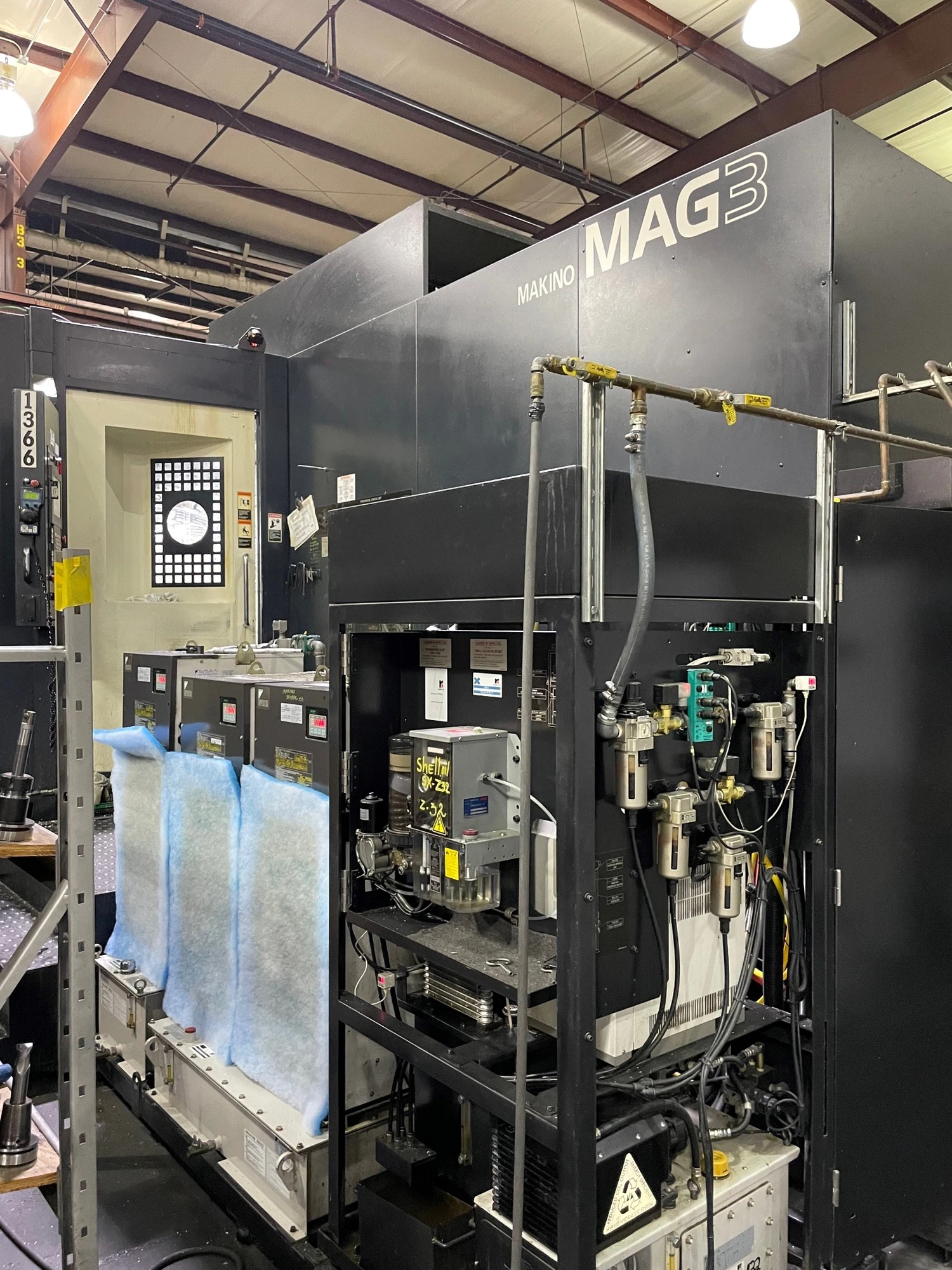

Professional 5 5-Axis Control, 118.1” x 59.1” x 39.4” Travels, +/- 110, Continuous 360 Deg., 118” x 59” Pallets, HSK 63, 33k RPM, 60 ATC, 80 HP, CTS, Part Probing
| X Axis Travel | 118.1" | 2,999.7 mm |
| Y Axis Travel | 59.1" | 1,501.1 mm |
| Z Axis Travel | 39.4" | 1,000.8 mm |
| A Axis | 220 degrees [+/-110] | 220 degrees [+/-110] |
| C Axis | 360 degrees continuous | 360 degrees continuous |
| Spindle Motor | 80 hp | 59.7 kW |
| Spindle Speed | 33,000 RPM | 33,000 RPM |
| ATC Capacity | 60 | 60 |
| Spindle Taper | HSK-63 | HSK-63 |
| Control | CNC (Makino Professional 5) | CNC (Makino Professional 5) |
Specifications:
Travels - X Axis: 118.1"
- Y Axis: 59.1"
- Z Axis: 39.4"
- A Axis: 220 DEG (+110/-110)
- C Axis: 360 DEG, CONTINUOUS
Pallet size: 118" x 59"
Max. spindle speed: 20,000 or 33,000 RRPM
Spindle taper: HSK63
Spindle motor: 80 HP
Tool change capacity: 120 tools apiece
Rapid traverse rate: 1000 IPM
Equipped with:
Makino Professional 5 5-AXIS CNC CONTROL
Coolant thru the spindle
Part probing
