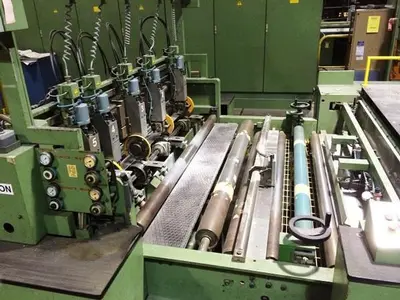

Paper Mill Liquidation- Bielomatik Folio Sheeters

BielomatikFolioSheeters

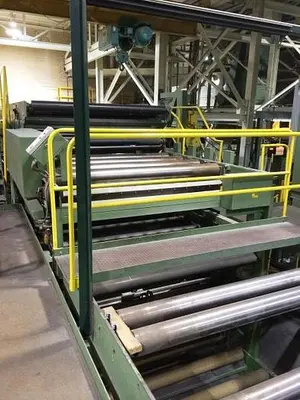

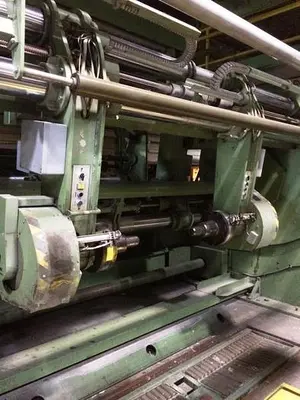

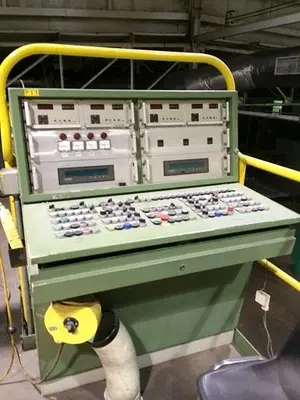

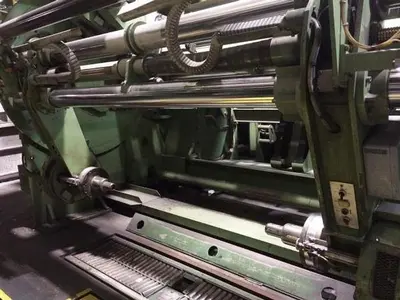

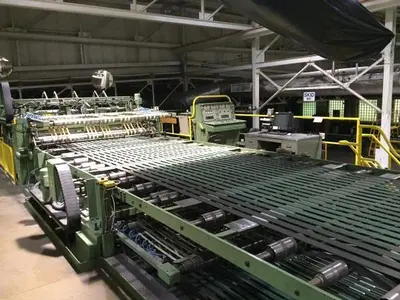

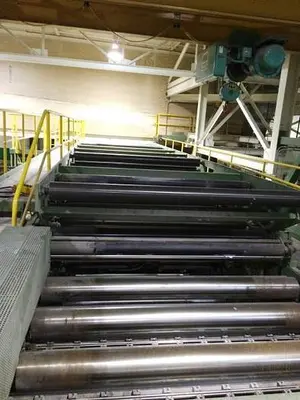

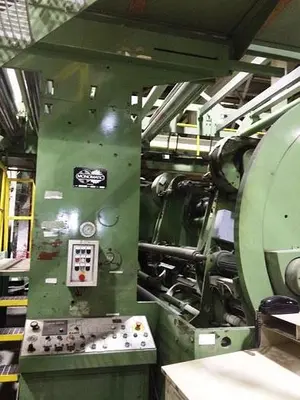

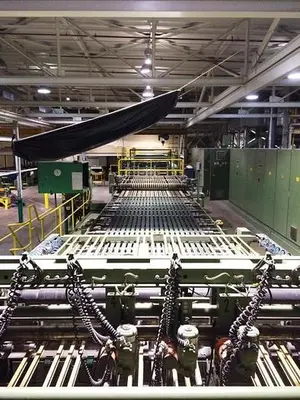

#3FolioSheeter-BielomatikP1085/46installedin1986
WithCartonLine

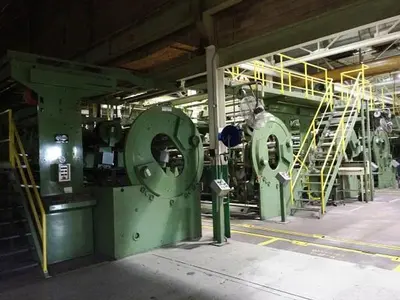

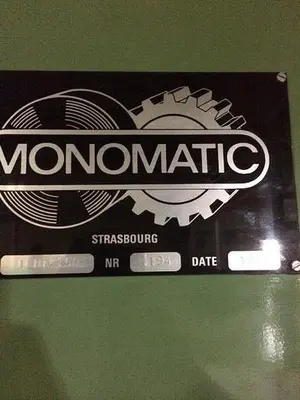

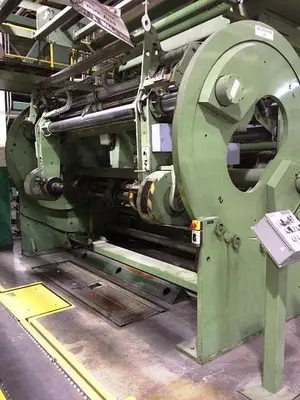

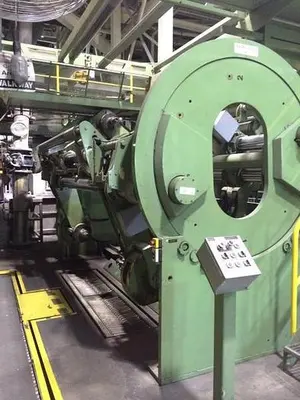

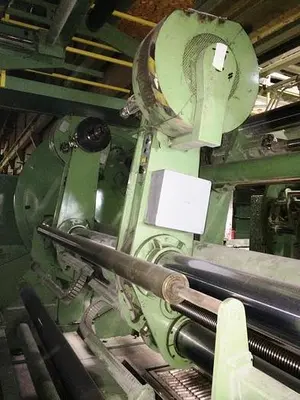

(4)Monomaticshaftlessflyingsplicepick-uptypebackstands
ReamHeight:2-1/2"to10",corediameter:3:&5"I.D.fibercores
MaxSpeed:1000ft/min,Powerrequirements:460V3Ph,60HZ

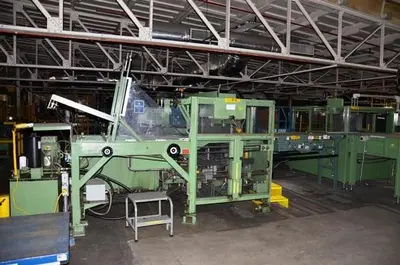

InvolvomodelC-5AautomaticfoliocartoningmachinewithLithibarMatikPalletizer

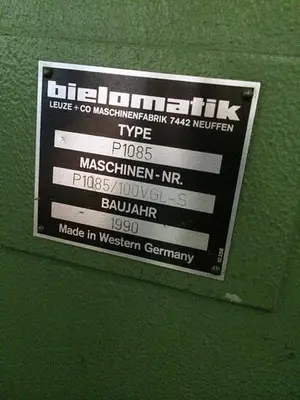

#4FolioSheeter-BielomatikP1085/100installedin1990
(4)Monomaticshaftlessflyingsplicepick-uptypebackstands
MaxSpeed:1150ft/min,PowerRequirements:460V,3Ph,60Hz
FinishingRoomEquipmentSpecifications:
1.
#1FolioSheeter:
BielomatikSheeterinstalledin1989,maximumwidth64”.
Topspeedis1,000ft/min,or350m/min.
Knifeloadis389lbs.per3,000ft.2,or600g/m2.
SizerangeisWidth=17.5”to43”anywiderresultsinjoggingproblems,Length=22.5”to60”minimumandmaximumrangeforkniferotation.Maximumrolldiameteris59”.
Sheeterisequippedwith2-layboy-exchangesystemthatresultsincontinuousrunning.

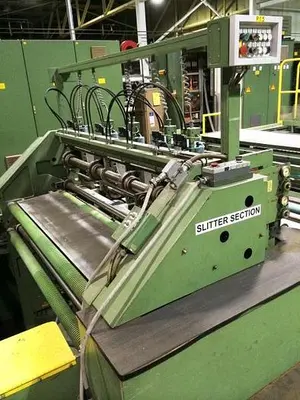

Automaticsizechangeforknifeandslittersection,semiautomaticforthelayboysection.
Allrollchangesat6-pocketbackstandaremanual.
AirSupplyrequiredis85PSI.
PowerSupplyis480V,60Hz,3Phase.
2.#2FolioSheeter:
JagenbergSynchro-StarSheeterinstalledin1994,maximumwidthof65”,minimumrollwidthof22”.
Topspeedis1,000ftmin.,or350m/min.
Knifeloadis400lbs.per3,000ft2,or600g/m2.
SizerangeisWidth=17”to65”,Length=17”to65”.Maximumrolldiameteris60”.
Sheetlengthaccuracyis+/-0.020”;squarenessis0.020”(measuredonasheetlengthof40”).
SheeterisequippedwithasinglelayboyPalettomatexchangesystem;allsizechangesatthe4pocketbackstandandknifeandslittersectionsareautomatic.
Layboysizechangesaremanual.
Airpressurerequiredis85PSI.
PowerSupplyis480V,60Hz,
3Phase.
3.
Involvo:

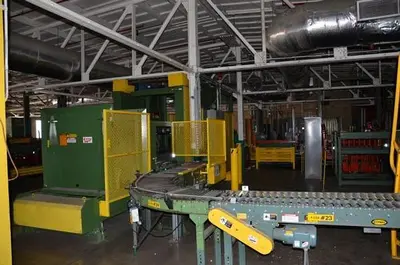

InvolvoFolioSheetCartonPackLine/ColumbiaPalletizerinstalledin1990,SchneiderDe-StackerinstalledinMarch1996.
Schneider/FunctionControlsheetcountcamerasysteminstalled2005.Involvocartonpacklinemaximumcapacityof4cartonperminuteor240cartonsperhour.
AutomaticSizechanges,andautomatedhotmeltgluesystem.
Paragonlabelersupgradedin2005.
ManualsizechangesatColumbiaPalletizer.
PowerRequirements:Involvo/SchneiderDestacker/ColumbiaPalletizer:460VAC,60Hz,3Phase.
4.
Acme:

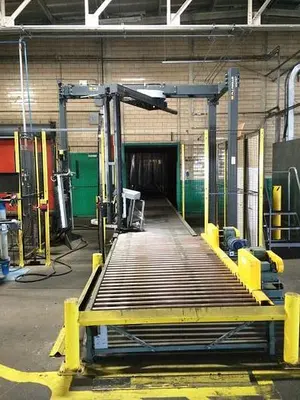

Acme/SignodeSkidWrapLine.
11Station/2SignodesteelstrapheadAcmeskidwrapline.
Upgradedtosteelstrapheadsin1992.
PowerRequirements:
480V,60Hz.,3Phase.
5.
PolarTrimmer:
PolarModel155E,installedin2004,cuttingwidth155cm/61”.
Clampopening16.5cm/6.5”.
Feeddepth155cm/61”.
Automaticinfeedgripper/Automaticoutfeedde-stacker.
Supplyvoltage190-240V,Fusing35A.
6.
Cuttingwidth69”/172.5cm.
Clampopening6.5”/16.5cm.
Feeddepth78”/195cm.
Manualgenericde-stackingtable,manualSouthworthun-stackingdischargetable.
7.
JagenbergVari-RollSingleDrumRewinder:
Installedin1990.
Minimum/Maximumrolldiameter20”to60”,Loadcapacityofstands13,200lbs.
3and5”corechucks.
PowerRequirements:
480V,60Hz.,3Phase,ControlVoltage120VAC.
WinderSpecifications:
Machineslitsandrewindsvariousgradesofpaperwithabasisweightbetween58-165gramspersquaremeter.
Maximumoperatingspeedis2286m/min,Maximumunwinddiameter2667mm,maximumrewinddiameter1500mm,6Slitters,diameterofcenterdrumis985mm.
3Rewindstations.

Rollsizes: 60"maxdiameter,8500#weightlimit,22"to84-5/8"wide
Finishedsheet: 20"to63"long,17"to82-5/8"wide
Doubleplier-maxheight72",corediameter: 3",5"and10"I.D.FiberCores
Powerrequirements: 480V,60Hz.,3phase.
Controlvoltage: 120VAC,60Hz.,24VDC.
Lawsontrimmer: LawsonPacemaker111Cutterinstalled1974.
Backstandspecifications: Minimum/Maximumrollwidth12”to95”.
Powersupply: 480V,60Hz.
