NEW 2001 METSO SRL 8X6 CHROME WITH HASTELLOY
Overview
Description

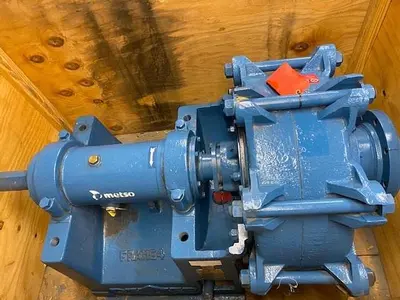

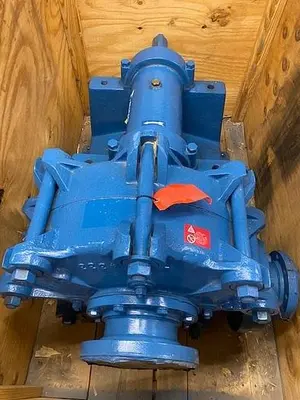

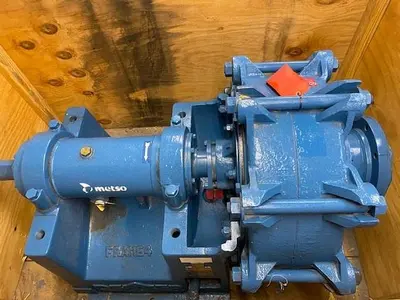

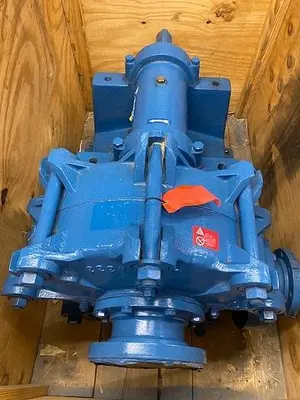

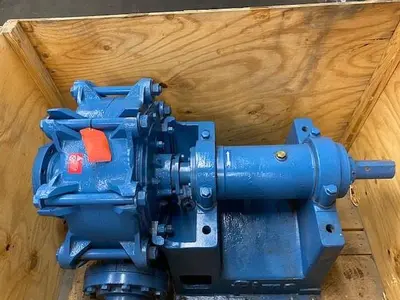

Metso Denver SRL 8x6 Slurry Pump Chrome with Hastelloy

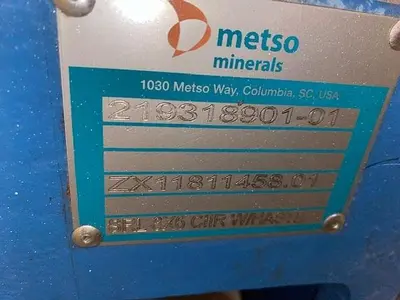

219318901-01
ZX11811458.01

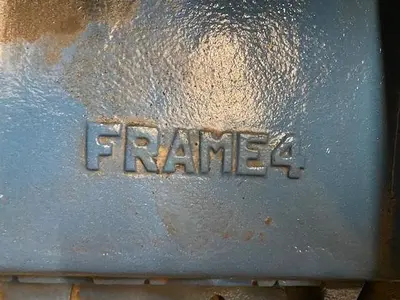

Frame: 4

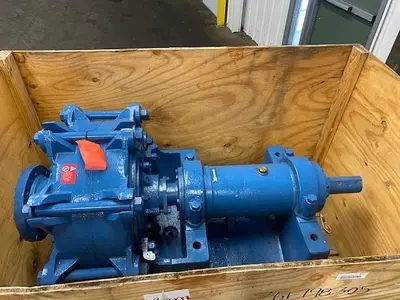

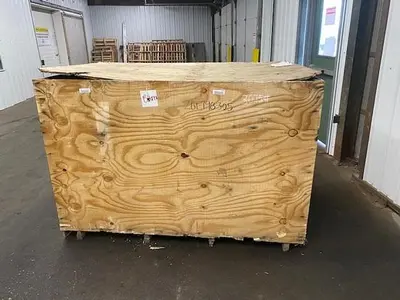

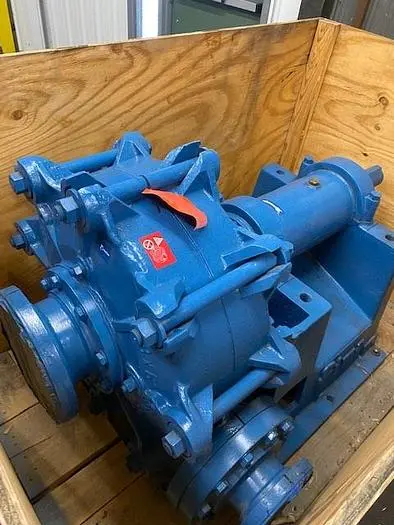

Unit is New in Crate
The Goulds Denver SRL 8x6 slurry pump is a heavy-duty, rubber-lined horizontal centrifugal pump designed for pumping highly abrasive and corrosive slurries in industrial applications like mining and mineral processing.
Key Specifications
Attribute DetailConstructionRubber-lined (natural and synthetic elastomers available)Discharge Size8 inches (nominal)Suction Size6 inches (nominal)Flow Rates (General SRL series)Up to 20,000 GPM (4542 m³/h)Heads (General SRL series)Up to 164 feet (50 m)Solids HandlingTypically for solids up to 1/8 inch (3.2 mm) in diameter for standard SRL; up to 1/4 inch (6.4 mm) for SRL-C, and up to 1/2 inch (13mm) for SRL-XT models.Temperature RangeUp to 250° F (121° C) with synthetic linings
Specific performance curves and exact ratings (e.g., max flow/head) depend on the specific impeller diameter, motor power, and operating speed of the particular unit and application.
Design Features & Benefits
Durable Construction: The pump is designed for severe operating conditions with extra-thick, field-replaceable rubber liners that are bolted into the casing for a secure fit and extended wear life.
Large Diameter Impeller: This feature allows the pump to develop higher heads at lower operating speeds, which extends the overall wear life of the components.
Ease of Maintenance: Key design aspects such as a large diameter shaft for low deflection, an axially adjustable bearing assembly, and an impeller release collar facilitate easier maintenance, reduce downtime, and simplify disassembly and reassembly.
Sealing Flexibility: The pump offers a choice of packing arrangements or mechanical seals to suit various fluid handling needs.
Versatile Application: It is widely used in mining, mineral processing, paper mills, aggregate, and general industry applications.
Interchangeability: Other manufacturers, such as Dynapro Pumps, produce D-SRL series pumps that are 100% interchangeable with the Goulds SRL models, offering alternative sourcing options.
