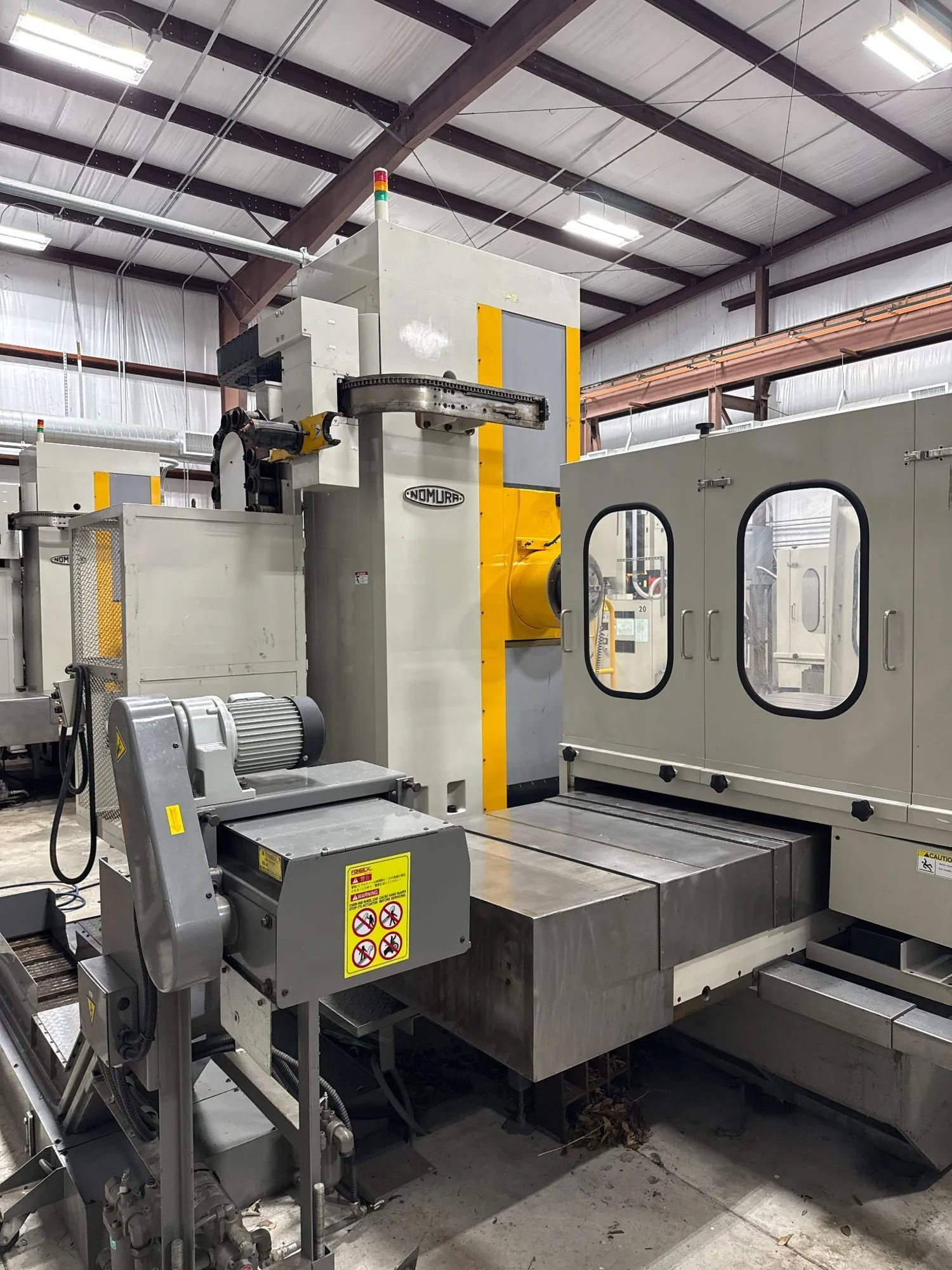

A robust CNC Table Type Horizontal Boring Mill used in heavy manufacturing for precise metal cutting. Precision milling, drilling, and boring of large, complex parts in industries like aerospace, defense, and energy.
| Spindle Size | 4.33" | 109.98 mm |
| X-Horiz Tvl of Table | 51.2" | 1,300.5 mm |
| Y-Vert Tvl of Head | 46.3" | 1,176 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Table-W | 45" | 1,143 mm |
| Table-L | 45" | 1,143 mm |
| Spindle Tvl. | 34.4" | 873.76 mm |
| Control | CNC | CNC |
| Dimensions | 145" X 223" X 139" | 145" X 223" X 139" |
| Weight | 31,000 | 31,000 |
TABLE SIZE: ......................... 45" X 45"
TABLE CAPACITY: ..................... 6,600 LBS
SPINDLE DIAMETER: ................... 4.33"
SPINDLE TAPER: ...................... CT-50
MAX SPINDLE SPEEDS: ................. 3000 RPM
SPINDLE MOTOR: ...................... 30 HP
TRAVELS - X AXIS: ................... 51.2"
- Y AXIS: ................... 46.3"
- Z AXIS: ................... 34.4"
- W AXIS .................... 15.7"
N/C ROTARY TABLE INDEXING: .......... 0.001 DEG/360,000 POSITION
MAX. CUTTING FEEDRATE: .............. 236 IPM
RAPID TRAVERSE: ..................... 472 IPM
TOOL CHANGER CAPACITY: .............. 30 TOOLS
