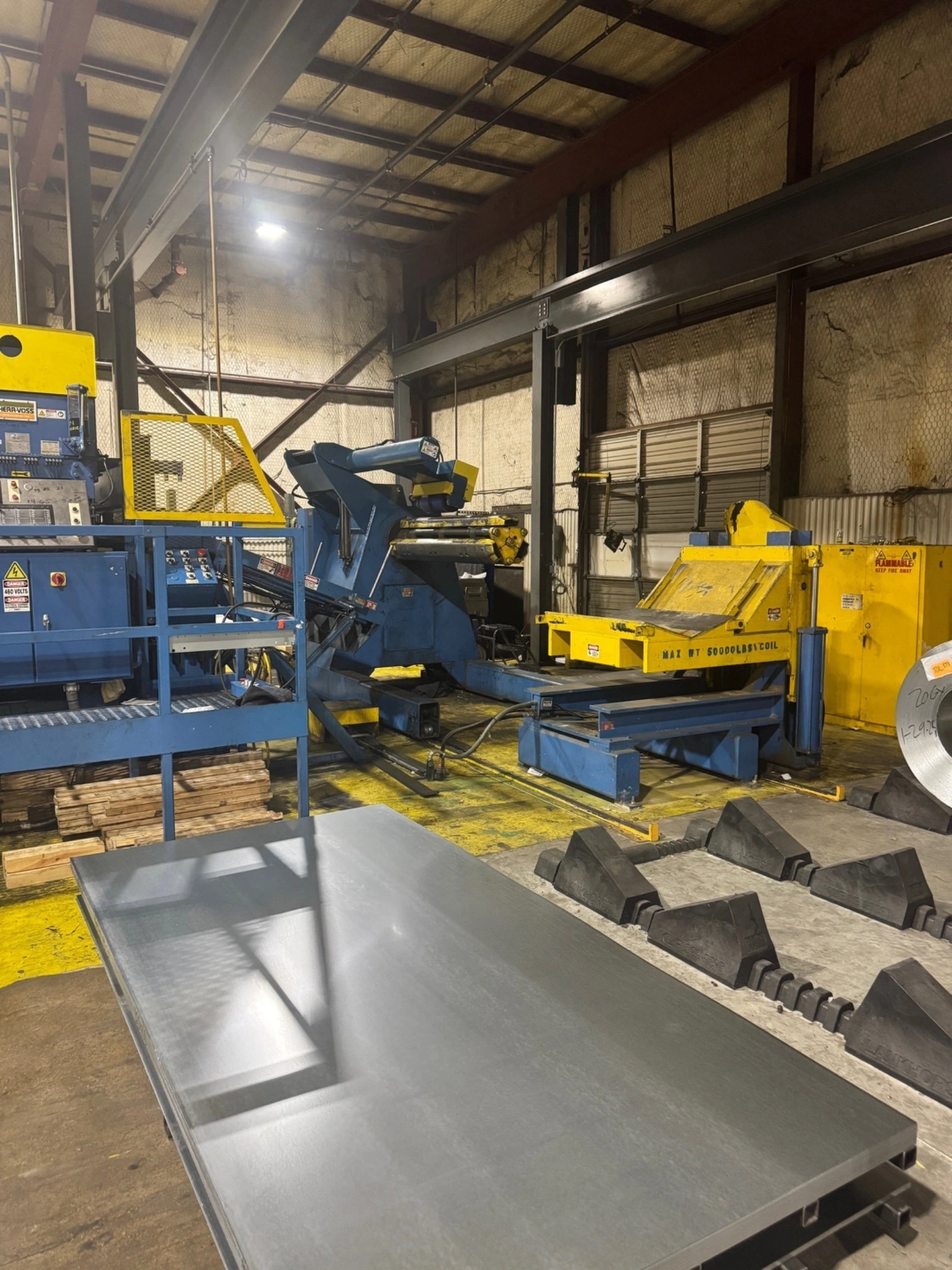

USED 1999 RED BUD RM30-72-50

60” x 50,000 LB x .075” Capacity
5 Hi Herr Voss Leveler

Red Bud Coil Car
50,000 Capacity
Floor Mounted Non Traversing
V-Deck W/ Hydraulic Lift

Red Bud Uncoiler
Model: RM30-72-50
72” Max Width
50,000 Lb Max Weight
Attached Powered Holddown Roll
Hydraulic Traverse & Expansion

Peeler
Hydraulic Actuated

Herr Voss Leveler
60” Max Width
5 Hi Design
Model VKL 72/1.50/19/7 5 Hi RH
.018” - .075” Material Gauge
7 Motorized Backups
175 FPM
75 HP DC Motor

Red Bud Edge Trimmer
Model: ET10
60” Max Width
.020” – .075” Material Gauge

Looping Pit

Red Bud Feed
Model: FM BD-9-60-72
60” Max Width
72” Max Length
.020” -.075” Material Gauge

Red Bud Shear
Model: SH18-140-60
60” Max Width
.020”- .075” Material Gauge

Red Bud Stacker
Model: DS144
60” Max Width
144” Max Length
Powered End Stop
Hydraulic Lift Table
Side Pallet Injector & Discharge
