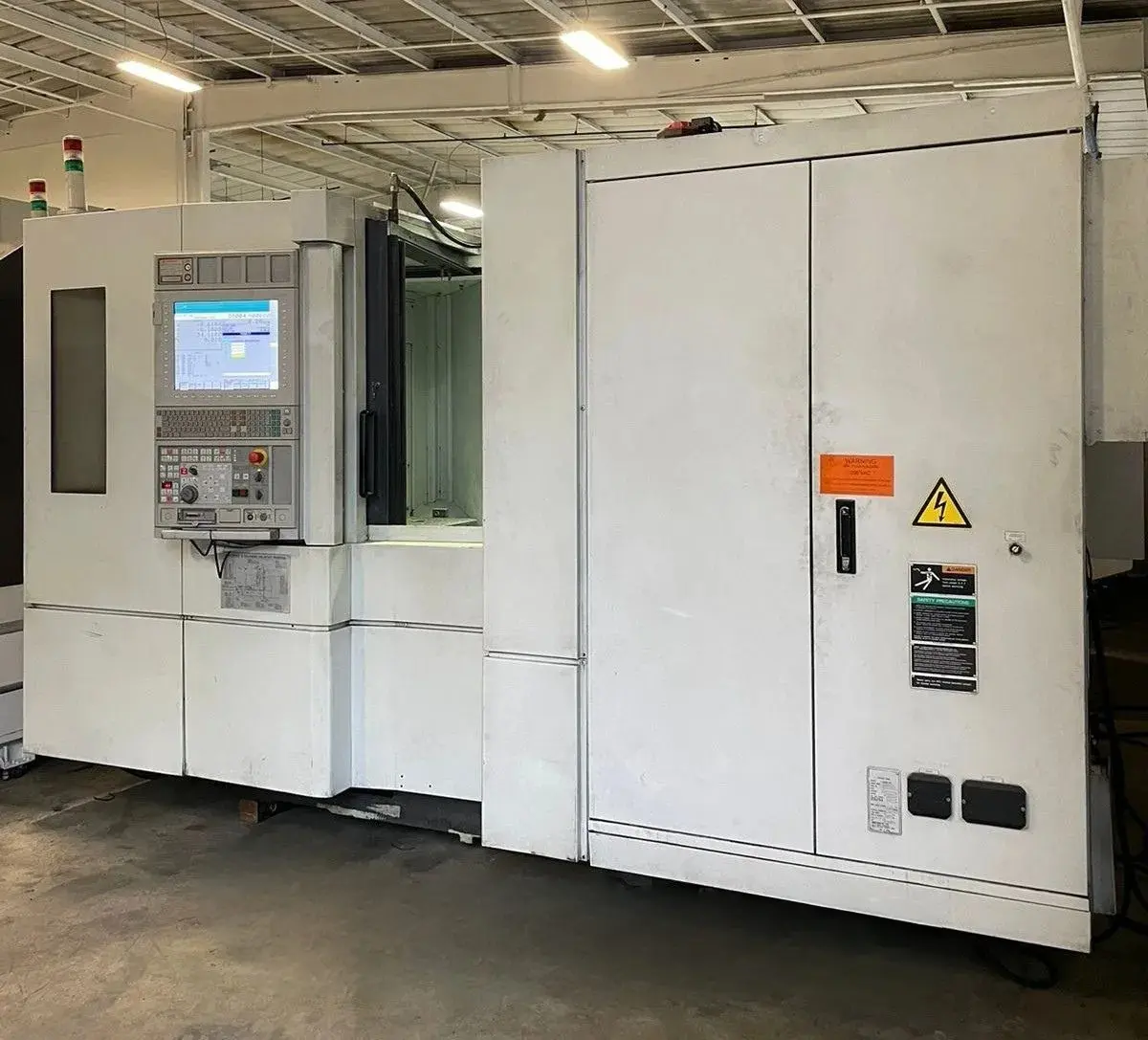

USED 2011 DMG MORI SEIKI NH 4000/DCG
Overview
Description
DMG MORI SEIKI NH 4000/DCG, a 2011 model horizontal CNC machining center with pallet changers, available in used condition. Ideal for enhancing precision manufacturing operations. Contact for more details.
Specifications
| X-Axis | 22" | 558.8 mm |
|---|---|---|
| Y-Axis | 22" | 558.8 mm |
| Z-Axis | 24" | 609.6 mm |
| # Axis | 4 | 4 |
| Power | 25 hp | 18.6 kW |
| RPM | 14,000 RPM | 14,000 RPM |
| Taper | CAT-40 | CAT-40 |
| Dimensions | 157.6″ X 94.4″ x 106.7″ High | 157.6″ X 94.4″ x 106.7″ High |
| Weight | 21,605 lbs. Approx. | 21,605 lbs. Approx. |
Fanuc 31i-A CNC Control
7,313 Hours Cutting Time
Twin Pallet Changer
25 HP Build in Spindle Motor
(2) USB Ports & RS-232 Port
Pallet Seat Detection
Spindle Orientation
Rigid Tapping
Coolant System
Spindle:
B Axis: 1° Indexing
Distance From Pallet Surface to Spindle Center: 3.1″ – 25.2″
Table:
Length: 15.7″
Width: 15.7″
Max Weight on Table: 880 lbs
Max Workpiece Swing Diameter: 24.8″
Max Workpiece Height: 35.4″
Index Time: 8 seconds 90°
Feed rates:
Rapid Traverse Rate X,Y,Z Axis : 1968 Inch Per Minute
Cutting Feedrate X,Y,Z Axis : 1968 Inch Per Minute
Tool changer:
Capacity: 60 Tools
Taper: CAT-40
Max Tool Diameter (without adjacent tools): 5.11″
Max Tool Diameter (with adjacent tools): 2.70″
Max Tool Length: 15.7″
Max Tool Weight: 17.6 lbs.
Tool to Tool Change Time: 0.9 Second
General:
Air Required: 90 psi, 4 scfm
Power: 43 kva / 220v / 3-Phase
Equipped With
14,000 RPM High Precision Spindle
60 Station Automatic Tool Changer
Through Spindle Coolant Ready (Pump Needed)
Oil Chiller Unit
Fast Rapid Traverse Rate
Chip Conveyor
Levelling Pads
