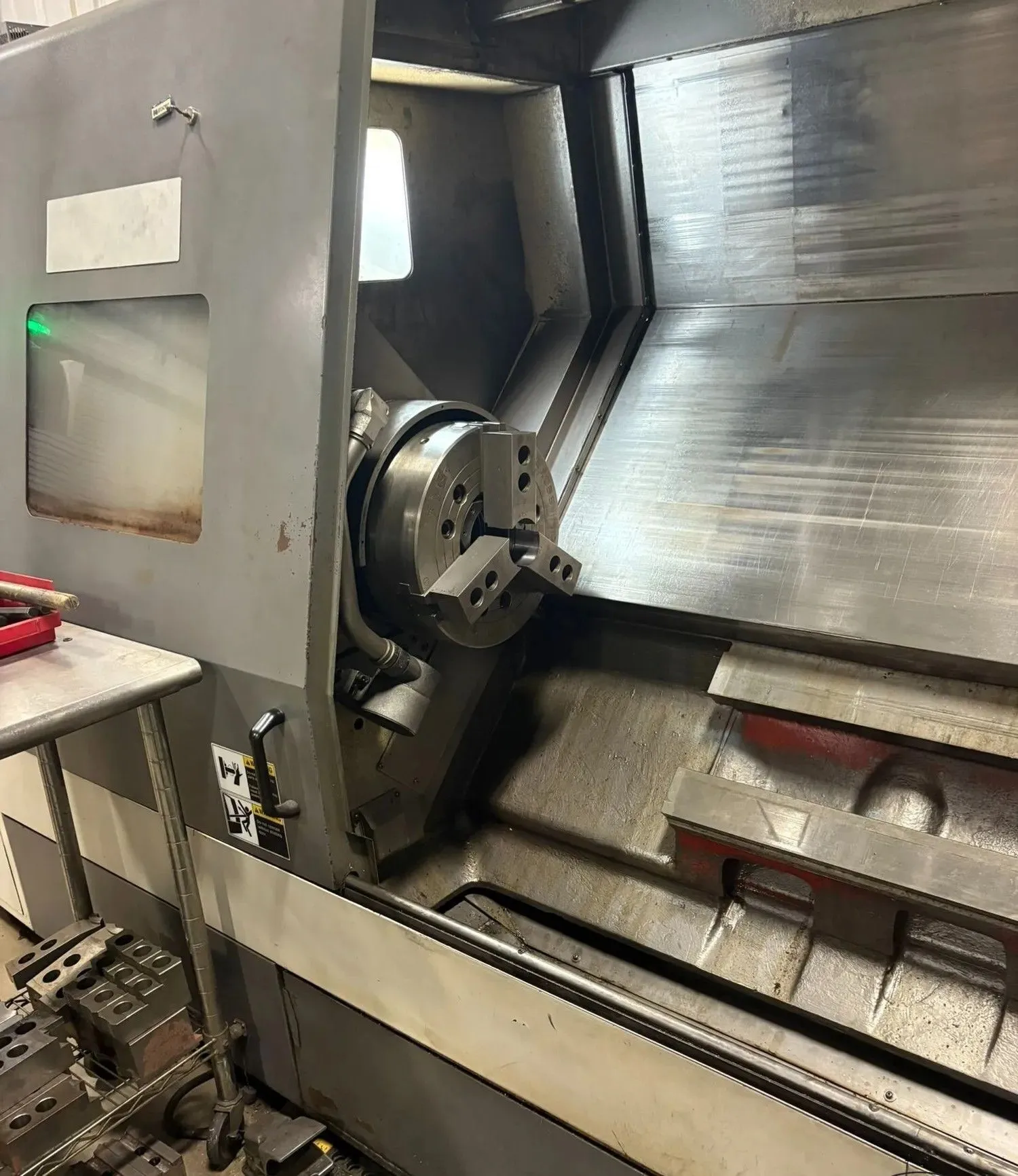

SMEC (Samsung) SL-35A/1500 CNC Turning Center, New in 2011
| Swing | 23.62" | 599.95 mm |
| Machining Length | 60" | 1,524 mm |
| # Axis | 2 | 2 |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4.63" | 117.6 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Turning Dia | 16.5" | 419.1 mm |
| Tailstock | Yes | Yes |
| Sub Spindle | No | No |
| Control | CNC (Fanuc 0i-TD) | CNC (Fanuc 0i-TD) |
| Weight | 19800lbs | 19800lbs |
General Specifications:
Control CNC (Fanuc)
CHUCK SIZE (in) 15
MAX TURNING DIAMETER (in) 16.5
BAR CAPACITY (in) 4.63
MAX TURNING LENGTH (in) 60
SWING OVER BED (in) 23.62
TAILSTOCK Yes
SPINDLE SPEED (rpm) 2000
SPINDLE NOSE A2-11
SPINDLE MOTOR HP 30
PHASE 3 Ph
FREQUENCY 50/60 Hz
VOLTAGE AC 220V
RATED POWER 42 KVA
