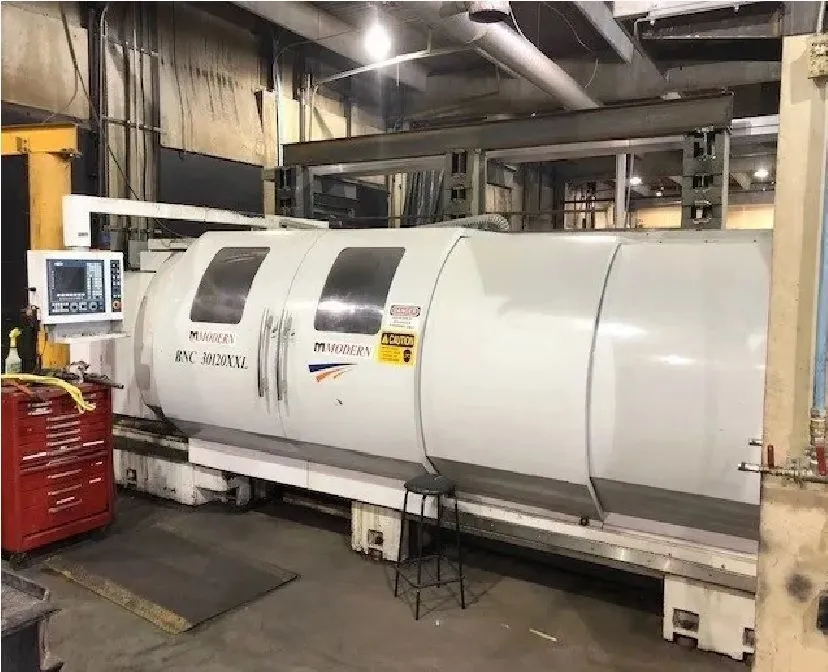

USED 2005 MODERN BNC-30120XXL
Overview
Description
2005 MODERN Model BNC-30120XXL Hollow Spindle CNC Lathe Swing 30", Centers 126" Hole 10.05"
Specifications
| Swing | 30" | 762 mm |
|---|---|---|
| Centers | 126" | 3,200.4 mm |
| Spindle Bore | 10.05" | 255.27 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 800 RPM | 800 RPM |
| Control | CNC (Fagor) | CNC (Fagor) |
| Dimensions | 232” x 103” x 88” | 232” x 103” x 88” |
| Weight | WEIGHT 24000 LBS | WEIGHT 24000 LBS |
SPECIFICATIONS:
SWING 30"
BED WIDTH 22"
BED LENGTH 160"
CENTERS 126"
MAX CUTTING DIA 18"
CHUCK SIZE 25"
SPINDLE BORE 10.05"
POWER 50 HP
RPM 800 RPM
TURRET STATIONS 12
X-AXIS TRAVEL 17.9"
Y-AXIS TRAVEL 125"
Y-AXIS TRAVEL 125"
MAX WORKPIECE WEIGHT (WITH TAILSTOCK) 6600 LBS
RAPID TRAVERSE (X/Z) 390 / 470 IPM
SPINDLE NOSE A2-15
QUILL STROKE 9"
QUILL DIA 5"
CONTROL CNC Fagor
DIMENSIONS 232” x 103” x 88”
WEIGHT 24,000 LBS
Equipped With
DUAL 25" CHUCKS
STEADY REST
TAILSTOCK
10" BORE
CUSTOM BORING BAR EQUIPPED WITH:
TAILSTOCK DEEP BORING BAR CUSTOM MADE BLOCK ATTACHMENT
DUAL 25" 3-JAW CHUCK
FRONT CHUCK HAS MULTIPLE JAW LOCATIONS STEADY REST (2)
TOOL HOLDER AND BAR HOLDER
