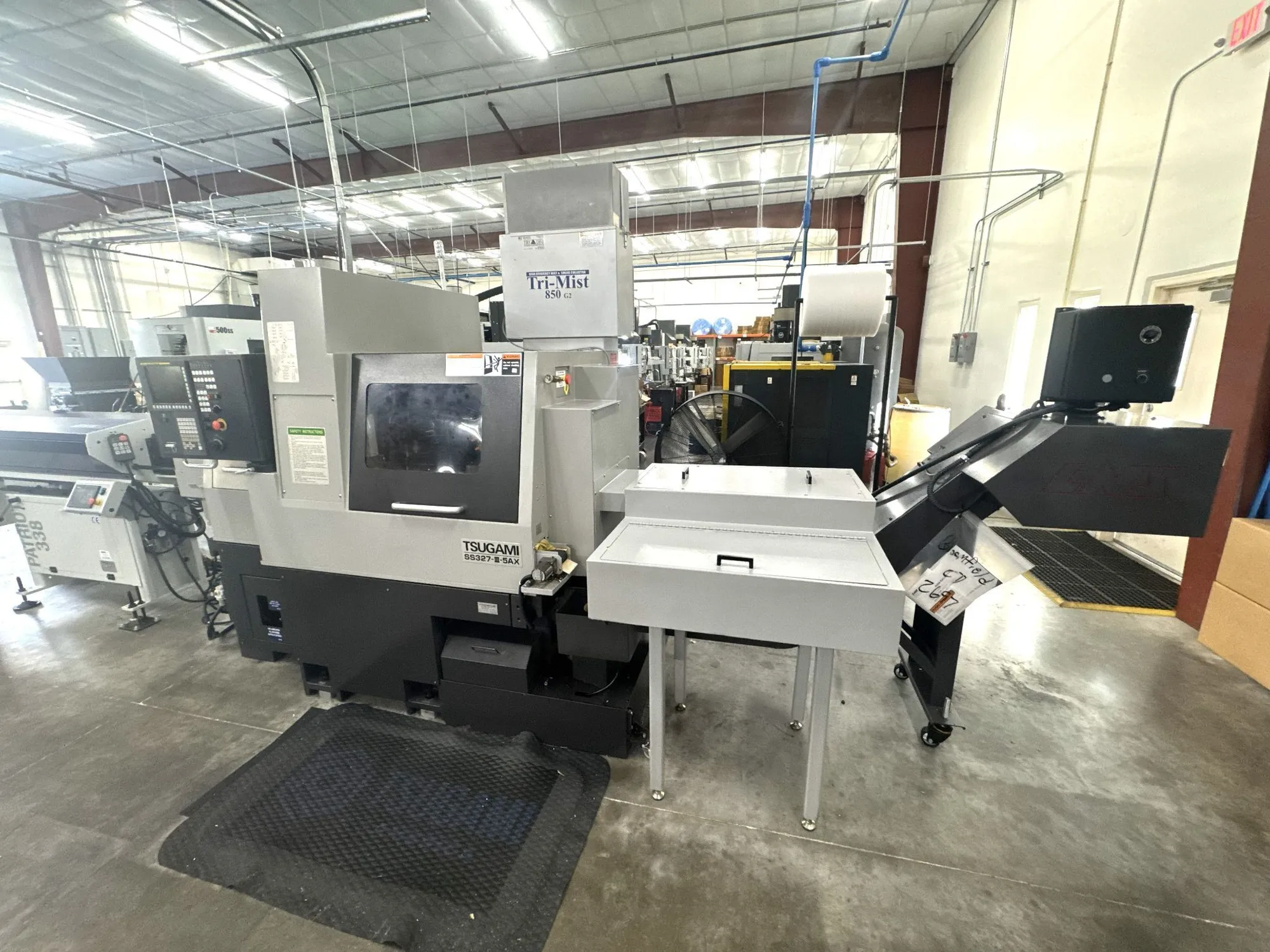

USED 2022 TSUGAMI SS327-III-5AX
Overview
Description
32mm, 7-axis, 350 Hours, Fanuc 31i-B5 Control, Edge Patriot 338 Bar Feeder, B-Axis Tool Post, MP Systems High-Pressure Coolant Unit, FireTrace System, Mist Collector, LNS Chip Conveyor. This originally owned chucker convertible 2022 Tsugami SS327-III-5AX is a sliding headstock CNC Swiss Lathe with simultaneous 4 & 5 axis machining. B-axis tool post contains live tool positions (4 front, 2 rear).
Specifications
| BAR CAPACITY | 1.26" | 32.004 mm |
|---|---|---|
| MAX MACHINING LENGTH | 12.99" | 329.95 mm |
| MAX DRILLING DIAMETER | 0.47" | 11.938 mm |
| MAIN SPINDLE MOTOR | 7.4 hp | 5.5 kW |
| MAIN SPINDLE INDEXING | FULL C-AXIS | FULL C-AXIS |
| MAIN SPINDLE SPEED | 8,000 RPM | 8,000 RPM |
| BACK SPINDLE MOTOR | 7.4 hp | 5.5 kW |
| BACK SPINDLE INDEXING | FULL C-AXIS | FULL C-AXIS |
| BACK SPINDLE SPEED | 8,000 RPM | 8,000 RPM |
| LIVE TOOL SPEEDS | 6,000 RPM | 6,000 RPM |
| CONTROLLABLE AXES | 7 | 7 |
Equipped With
FANUC 31i-B5 CNC CONTROL (SIMULTANEOUS ALL AXES CONTROL)
EDGE PATRIOT 338 MAGAZINE BAR FEEDER (2020)
X1, Z1, Y1, X2, Y2, Z2, C1, C2
MODULAR B-AXIS TOOL SPINDLE (7,000 RPM SPINDLE)
BACK CROSS TOOL SPINDLE INCLUDED
DEEP HOLE DRILL HOLDER BESIDE BACK SPINDLE (T91 & T92)
MP SYSTEMS 2000 PSI COOLANT SYSTEM (8-PORT)
FIRETRACE SYSTEM
MIST COLLECTOR (TRI-MIST 850 G2)
CHIP CONVEYOR (LNS)
PARTS CATCHER
LONG PARTS EJECTOR
TRANSFORMER
SLIDING HEADSTOCK W/DIRECT DRIVE GUIDE BUSHING
CONVERTIBLE TO CHUCKER MODE W/ OPTIONAL CHUCKER KIT
RIGID CAST IRON FRAME
** ORIGINAL OWNER
** MACHINE ONLY USING CUTTING OIL
** AS OF JANUARY, 2026 - CUTTING TIME: 327 HOURS
** MACHINE CUTTING PRIMARILY STAINLESS STEEL 1714 & 316
** MACHINE MANUFACTURED DATE: OCTOBER, 2022
** FULL REPLACEMENT COST, AS EQUIPPED: $370,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
