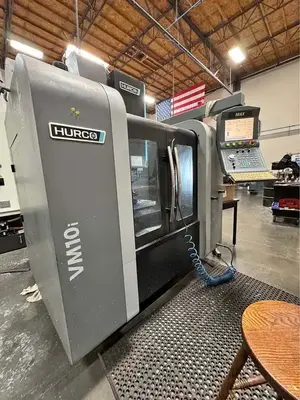

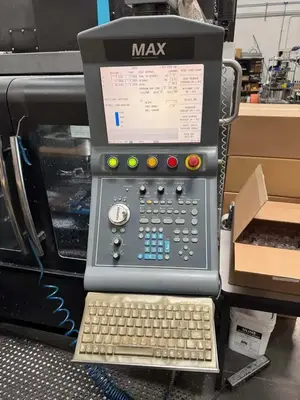

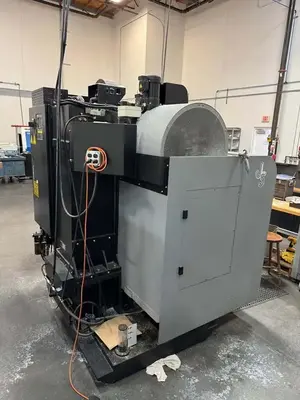

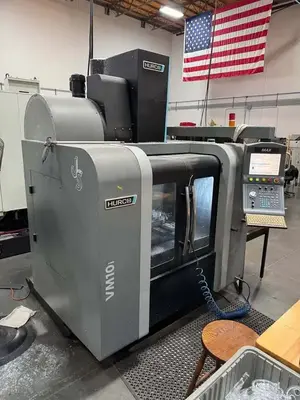

HURCO VM10I VERTICAL MACHINING CENTER
New: 2014
Specifications:
Axis Configuration: 3-Axis
X-Axis Travel: 26.0 in
Y-Axis Travel: 16.0 in
Z-Axis Travel: 20.0 in
Table Size: 30 in × 16 in
T-Slots: 3 × 0.71 in
Maximum Table Load: 3,300 lbs
Spindle Nose to Table: 4 in (min) / 24 in (max)
Spindle Taper: CAT 40 / Big Plus® (CAT/BT 40)
Spindle Speed: 10,000 RPM
Spindle Power (Peak): 15 HP
Spindle Torque (Peak): 45 ft-lbs @ 1,740 RPM
Tool Changer Capacity: 24 Tools
Maximum Tool Diameter: 3.1 in
Maximum Tool Length: 9.8 in
Maximum Tool Weight: 15.4 lbs
Rapid Traverse (X / Y / Z): 1,102 IPM
Maximum Programmable Feedrate: 1,102 IPM
Overall Dimensions:
Floor Space Required: 128.5 in × 133.2 in
Machine Height: 101.0 in
Machine Weight: 7,121 lbs
