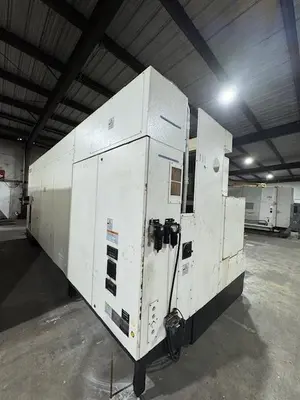

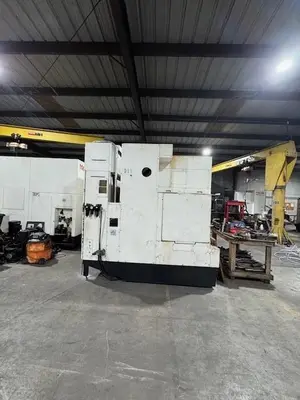

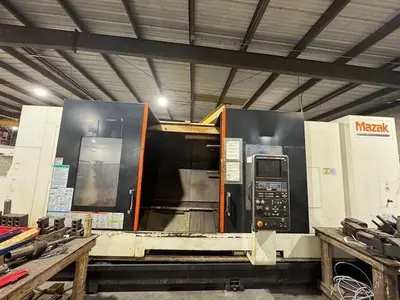

USED 2013 MAZAK SLANT TURN NEXUS 550

Equipped With
MAZAK SLANT TURN NEXUS 550 HEAVY-DUTY CNC TURNING CENTER
New: 2013
Specifications:
Maximum Swing:  40.9 in
Swing Over Carriage:  29.4 in
Maximum Machining Diameter:  35.8 in
Maximum Machining Length (80 in bed):  80.5 in
Maximum Supported Weight (Chuck work / Shaft work):  13,228 / 5,620 lbs
Spindle Speed:  1,000 RPM
Spindle Through-Hole Diameter:  10.8 in
Spindle Nose:  A2-20
Spindle Motor (30 min / Continuous):  60 / 50 HP
Maximum Torque:  5,163 ft-lbs
Number of Tools:  12
Tool Size Turning (OD / ID):  1.25 in / 2.5 in
Indexing Time (Single / Full):  0.4 / 1.0 sec
Tailstock Center Bore:  MT No. 6
Tailstock Rapid Traverse:  315 IPM
Tailstock Travel (80 in bed):  82.125 in
Tailstock Maximum Thrust:  5,620 ft-lbs
Feed Axis Rapid Traverse (X / Z):  787 / 945 IPM
Feed Axis Travel (X / Z):  18.25 in / 85.25 in
Machine Height:  96.9 in
Floor Space (80 in bed):  239.2 in × 96.1 in
Machine Weight (80 in / 120 in bed):  37,479 lbs
Equipped with:
Mazatrol Matrix Nexus 2 Control
24 in Chuck

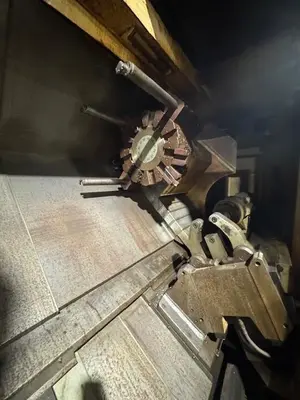

12-Station Turret
Steady Rest
Tailstock
Chip Conveyor
