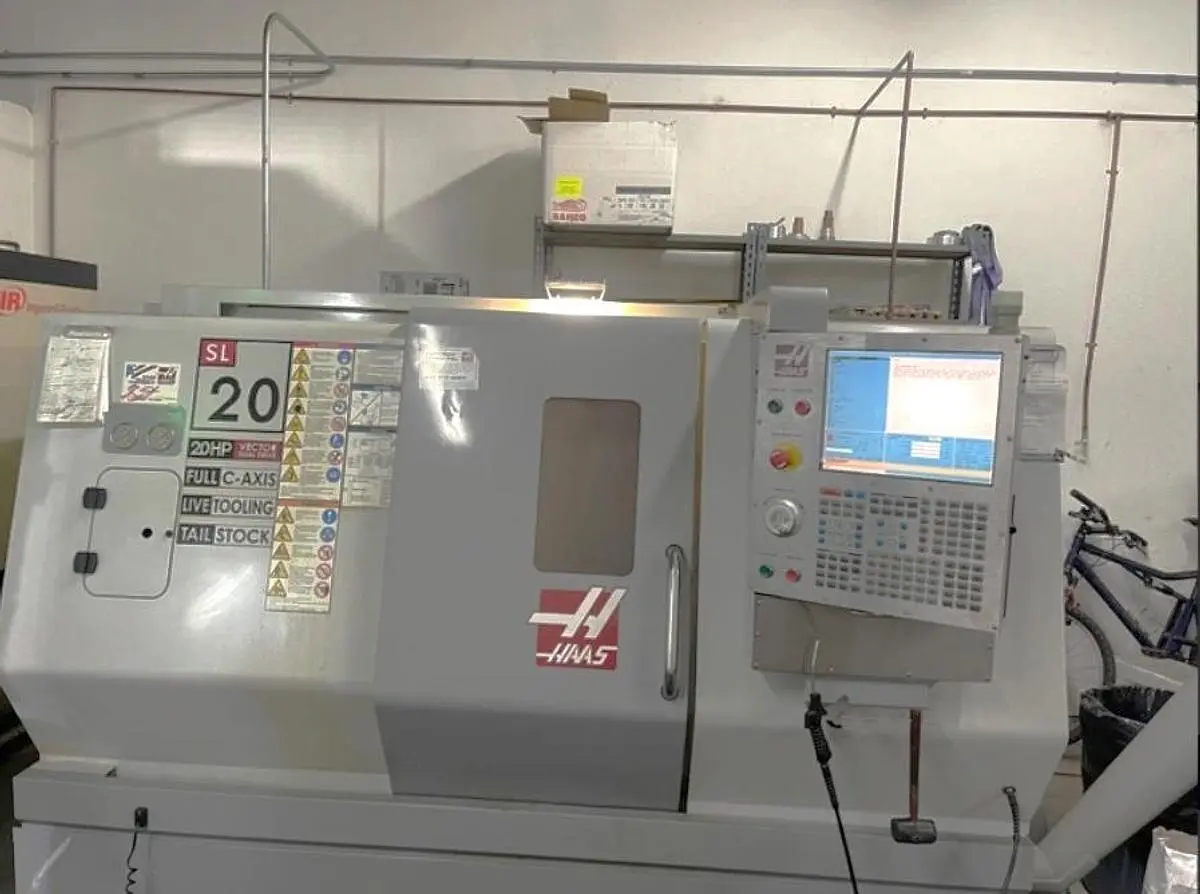

USED 2008 HAAS SL-20T WITH MILLING

Full C Axis Spindle Rotation
Live Milling Capability
Auger Style Chip Conveyor
Programmable Hydraulic Tailstock
8" 3 Jaw Hydraulic Chuck
5C Collet Chuck
Rigid Tapping
Spindle Orientation
Visual Quick Code Programming
Rigid Tapping
RS232 Port Interface
Miscellaneous Tool Blocks

Machine Control: Haas CNC Control
Chuck Size: 8" 3-Jaw Hydraulic & 5C Collet Chuck
Maximum Swing: 20"
Maximum Swing Over Cross Slide: 11.75"
Distance Between Centers: 20"
X-Axis Travel: 8.45"
Z-Axis Travel: 22.5"
C Axis Spindle Rotation: Full C Axis
Spindle Speeds: 0 - 4,000 rpm
Spindle Nose / Bore / Bar Capacity: A2-6" / 3.0" / 2.5"
Spindle Motor: 20 HP
Spindle Torque: 120 ft/lbs
Live Milling Speed: 4,000 RPM
Number of Turret Positions: 12 Station Turret -Hybrid Type Turret
Rapid Traverse Rates: 710 IPM
Tailstock Taper / Travel: MT #4 / 20"
Machine Dimensions LxWxH: 126.5"x62"x72"
Machine Weight: 9,000 lbs
