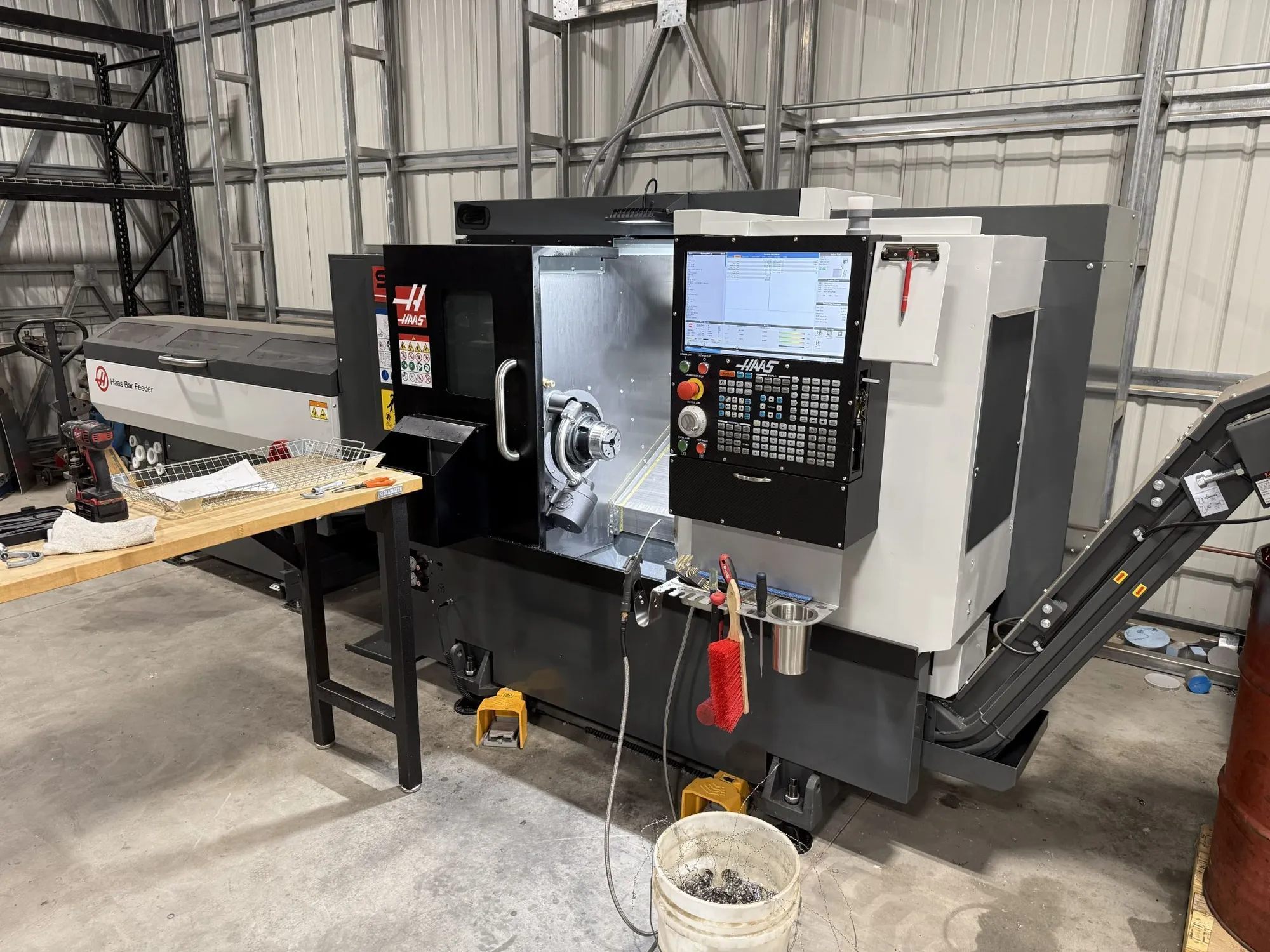

USED 2025 HAAS ST-15Y
Overview
Description
2025 Haas ST-15Y with Barfeed with Auto Tool Setter, 6,000 RPM Milling Upgrade, Cabinet Cooler, Tailstock, Parts Catcher, Auto Jet Blast, and Chip Conveyor. Machine Only has 63 Cutting Hours.
Specifications
| Swing | 16.5" | 419.1 mm |
|---|---|---|
| Machining Length | 16" | 406.4 mm |
| # Axis | 4 | 4 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 11" | 279.4 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Control | CNC (Haas CNC Control) | CNC (Haas CNC Control) |
| Weight | 8000 LBS | 8000 LBS |
Max Swing...............16.5"
Max Turning Length......16.0"
Max Turning Dia.........11"
X Axis Travel...........7.88"
Z Axis Travel...........16"
Y-Axis Travel...........+/-2.00"
Spindle Motor...........20 HP
Spindle Nose............A2-6
Chuck Size..............8.3"
Spindle Bore............3.50"
Bar Capacity............2.5"
Spindle Speed...........4,000 RPM
Rapids (X,Y,Z)..........472,472,1200 IPM
Number of Tools.........12 Station Turret
Milling Motor...........12 HP
Milling Speed...........6,000 RPM
Tailstock Quill.........MT-3
Equipped With
Haas CNC Control with 1GB, USB, WIFI, Ethernet, and 19" Monitor
Automatic Tool Presetter
6,000 RPM Live Tooling Upgrade
CNC Control Cabinet Cooler
Tailstock
Parts Catcher
Auto Jet Blast
Haas Barfeed
Chip Conveyor
HOURS:
Power On...........384
Cycle Start........105
Feed Cutting.......63
Completed Parts....2874
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
