Only 100 Working (table/guiders/tooling still in prohibitor)
Installed never used in production only testing

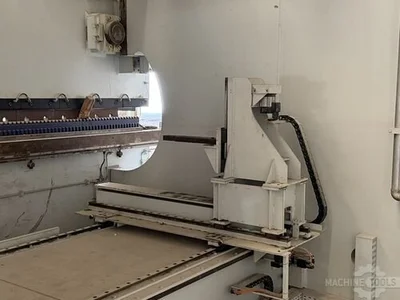

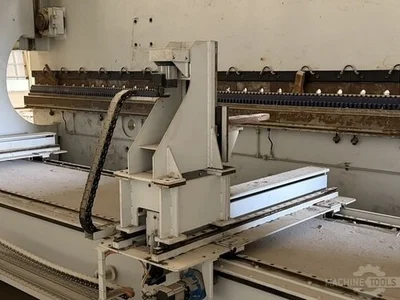

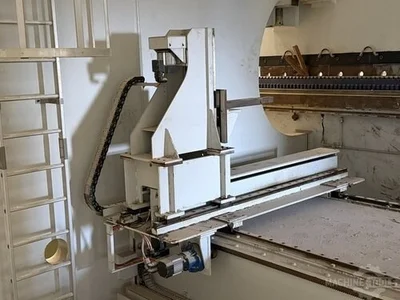

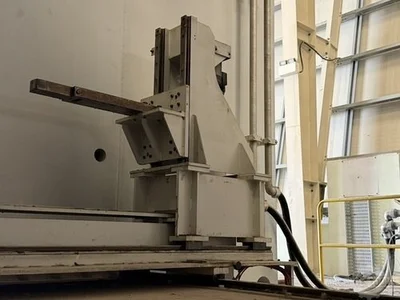

CNC T1 + T2 + T3 Bending help support arm in front

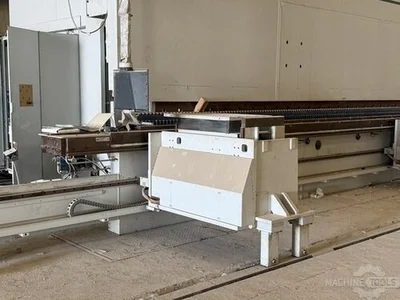

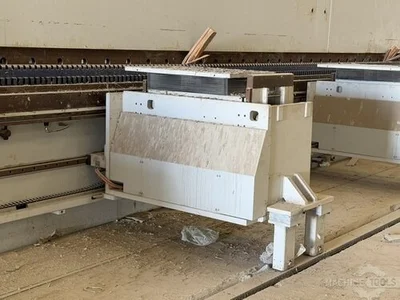

3 x HH 2600 Module backgauge 3 x Z1+R1+Delta1

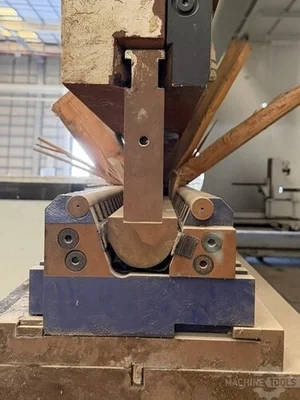

Lower Tooling set Variable VLA 50-150 mm
Upper Tooling set LVD 505
Adjustment V-Axis 59,3 to 249,3 mm
Thermotec Oil chiller GC25T-35 max. 2200 kPa
CADMAN TOUCH with the best software for pressbrakes

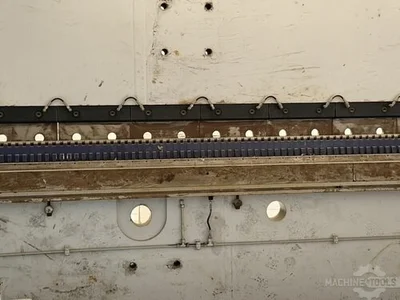

Hydraulic top tool clamping
Table width 500 mm
Troath in column 1000 mm
Max. bending length: 12000mm
Distance between column: 10600mm
Max. pressing force: 1600T
Dis. Beam - Table: 1070mm
Beam stroke: 800mm
Table Width: 500mm
Troth beam: 1000mm
Approch speed: 80mm/min.
Working speed: 9mm/min.
Return speed: 90mm/min.
Adjustment X-Axis back gauge:600mm
Number of controlled axis: 15 (Y1/Y2/X/Z1/2/3, R1/2/3, Delta 1/2/3, T1/2/3
Control: CADMAN TOUCH
Crowning: Yes
Hydraulic toolclamping: Yes
Power: 125kW
Length: 14875mm
Width: 5430mm
Height: 7906mm
Weight: 277500kg
Why you need 1600 Ton Pressbrake, Bending force depends on:
Material thickness
Material strength
Bend length
Die opening
When any of those go big, tonnage skyrockets.
A 1600-ton press brake is used when:
Plate is thick (20–60+ mm / ¾"–2½"+)
Material is high-strength
Parts are long (6–10+ meters / 20–30+ ft)
Tight radii or deep bends are required
Forming Heavy Welded structures like:
Bridge girders
Box columns
Large beams and stiffeners
Base frames for industrial machinery
Shipbuilding Defence & Naval like:
Hull sections
Deck plates
Bulkheads
Reinforcement ribs
Enegery & Infrastructure like:
Wind tower sections
Power plant components
Pressure vessel shells (pre-forming)
Transformer tanks
Heavy Machining & Ground & Mining jobs like:
Excavator frames
Crusher housings
Dump truck bodies
Mining chute liners
Furnace housings
Kilns
Massive welded assemblies
Material to bend on 1600 t machine:
Carbon steel:
S235 / S275 / S355
A36, A572
Plate thickness: ~20–50 mm+
High strength steel
S690 / S700
Hardox, Strenx
Much higher tonnage needed even at thinner gauges
Stainles steel:
304 / 316
Needs ~1.5–2× the force of mild steel
Wear-resistant plate
Heat-resistant steels
JOB Example:
Bending 40 mm S355 steel over 8 meters can easily require 1,200–1,600 tons, depending on tooling.
Bending instead of welding:
Increases strength
Reduces distortion
Cuts weld time and cost
Improves fatigue life
Looks cleaner and more accurate
A 1600-ton press brake is used when:
The part is too thick
Too strong
Too long
It’s not for sheet metal shops — it’s for heavy industry, shipyards, steel fabricators, and energy projects.
| Tonnage | 1,600 t | 1,763.696 T |
| Overall Length | 12,000 mm | 39.37' |
| Between Housings | 10,600 mm | 34.78' |
| Stroke | 800 mm | 31.496" |
| # Axis | 15 | 15 |
