USED CHERRY BURRELL CVL

Manufacturer Information

Manufacturer: Cherry Burrell

Tank Type: Vertical Mixing Tank

Capacity: Approximately 4,500 Gallons

Condition: Used

Material of Construction: 304 Stainless Steel

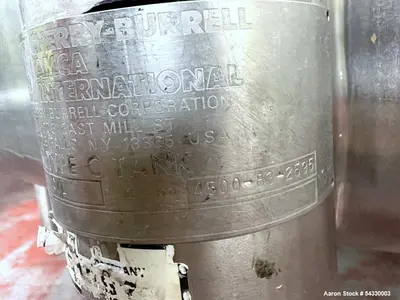

Serial Number: 4500-83-2595

Previous Application: Beverage processing

Manufacturer Overview: Cherry Burrell is a highly regarded manufacturer of sanitary processing equipment, trusted throughout the beverage, dairy, and food industries for hygienic tank design and long-term reliability.

Description

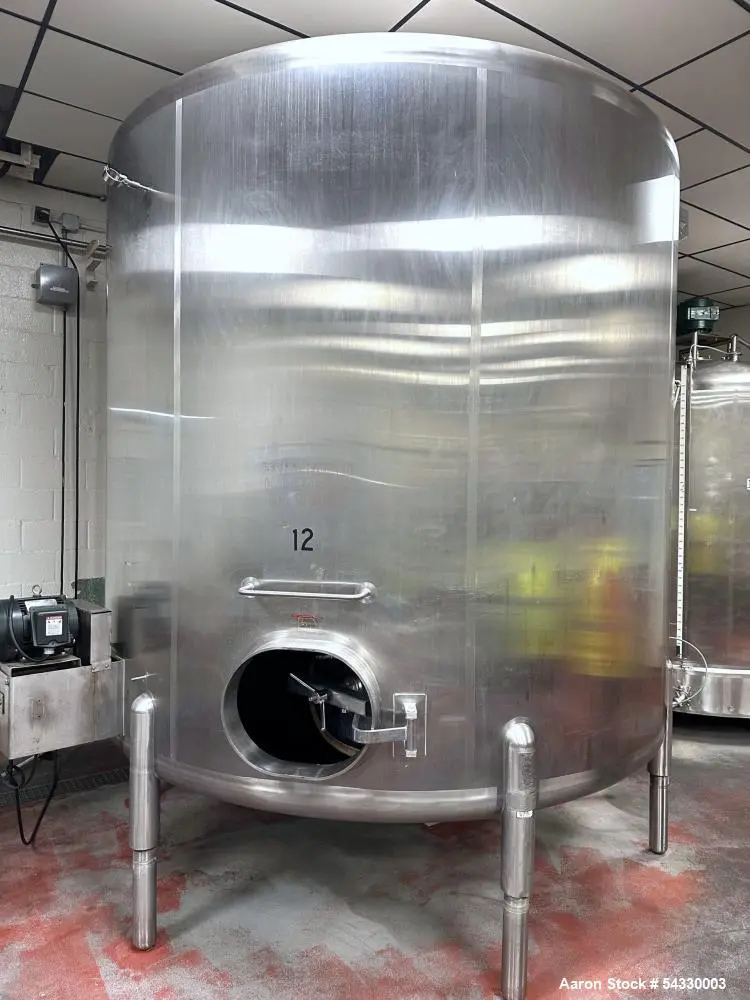

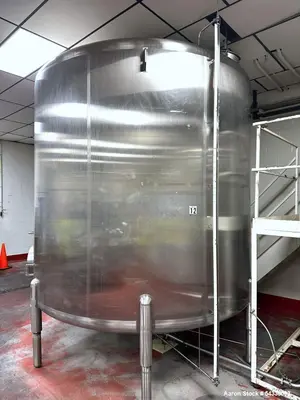

This Used Cherry Burrell Vertical Mixing Tank provides approximately 4,500 gallons of capacity and is constructed from 304 stainless steel, making it well-suited for sanitary and food-grade processing environments. The vessel features a dome top and dish bottom, promoting efficient mixing, cleanability, and complete product discharge.
Equipped with a side-mounted agitator driven by a 5 HP motor, along with a CIP sprayball and top-mounted inlets, this tank is designed for effective blending and easy clean-in-place operation. A side manhole allows for convenient access, while the center bottom outlet ensures controlled and sanitary product transfer. Additional features such as a sight glass and stainless steel legs enhance operational visibility, durability, and stability. This unit was previously used in a beverage application, confirming suitability for hygienic processing.

Specifications

Capacity: Approx. 4,500 Gallons

Construction Material: 304 Stainless Steel

Tank Orientation: Vertical

Tank Diameter: 9' 6"

Overall Height (OAH): 12'

Top Style: Dome Top

Bottom Style: Dish Bottom

Manway: Side Manhole

Discharge: Center Bottom Outlet

Agitation:

Side-Mounted Agitator

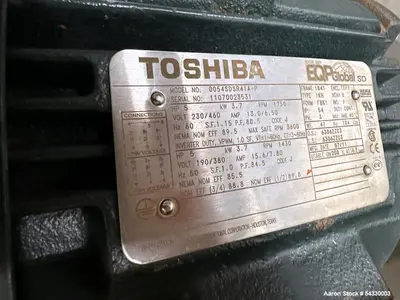

Motor: 5 HP

Speed: 1,750 RPM

Electrical: 230 / 460 Volt, 3 Phase, 60 Hz

Cleaning: CIP Sprayball Included

Sight Glass: Yes

Inlets: Top-Mounted

Mounting: Stainless Steel Legs

Serial Number: 4500-83-2595

Applications

Beverage processing and blending

Food and dairy applications (verification recommended)

Nutraceutical liquid processing

Cosmetic and personal care production

Chemical solution mixing

Sanitary liquid storage

Batch mixing operations

Process tank applications

Contract manufacturing

Mid- to large-scale production

What Might This Be Used For

Beverage blending and holding

Juice, soda, and syrup processing

Flavor and concentrate mixing

Liquid food ingredient storage

Nutraceutical liquid formulations

Cosmetic liquid mixing

CIP-compatible batch processing

Sanitary product holding

Mid- to large-scale beverage production

Process integration tanks
