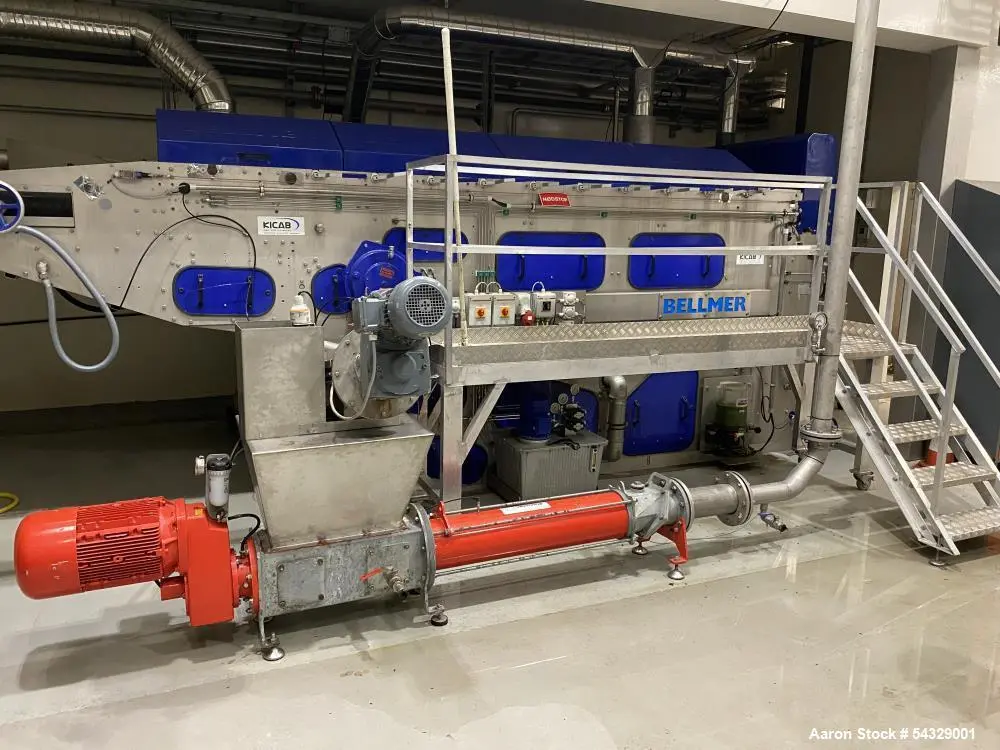

Used Belmer Winkle Press Dewatering Belt Press VPK 2S | High-Capacity Sludge Dewatering System
Overview
Description
Used Belmer Winkle Press Dewatering Belt Press VPK 2S | High-Capacity Sludge Dewatering System. Belt working width measures 1500 mm (48") x 15500 mm (50 4") long. 2 x 21 spray nozzles. Water pressure 6 bar (90 PSI), 18 x 188 mm (7.33") Dia driving rolls. Belt speed 2.61 m/min (85"/min), Stainless steel frame. Unit features hydraulically controlled belt tracking device. Includes (1) 4 kW / 6 HP, 400V powerpack feeder belt drive. 1.7 kW / 2.3 hp, 460V main press belt drive with variable speed control (1) Sludge pump, (1) Polymer station (1) Control panel. Overall dimensions 5600 mm (182") long x 2534 mm (823") width (transport width) x 2250 mm (73") high, Weight empty 9.5 tonnes. Operating weight 10.5 tonnes. Previously used in a WWT application. New 2022. Our freight specialists can assist with freight and customs documentation to ensure smooth transition.
Specifications
Used Equipment Facts About This Machine
Manufacturer Information
Manufacturer: Belmer / Winkle Press
Model: VPK 2S
Type: Dewatering Belt Press
Condition: Used
Year: 2022
Previous Application: Wastewater Treatment (WWT)
Construction: Stainless Steel Frame
Manufacturer Overview: Belmer (WinklePress) is a globally recognized manufacturer of sludge dewatering and solid–liquid separation equipment, known for robust construction, efficient water removal, and long service life in municipal and industrial wastewater applications.
Description
The Used Belmer Winkle Press VPK 2S Dewatering Belt Press is a high-performance sludge dewatering system designed for continuous, reliable operation in wastewater treatment facilities. Built in 2022, this unit features a 1,500 mm (4’8”) wide belt and a total belt length of 15,500 mm (50’4”), providing excellent throughput and dewatering efficiency.
Constructed with a stainless steel frame and equipped with a hydraulically controlled belt tracking device, the VPK 2S ensures stable operation and reduced maintenance. The system includes a sludge pump, polymer station, control panel, and multiple variable-speed drives, making it a near turnkey dewatering solution. This unit was previously used in a WWT application and remains suitable for municipal and industrial sludge processing.
Specifications
Model: VPK 2S
Belt Working Width: 1,500 mm (4’8”)
Belt Length: 15,500 mm (50’4”)
Belt Speed: 2.61 m/min (8’5” per minute)
Spray Nozzles: 2 x 21
Water Pressure: 6 bar (90 PSI)
Driving Rolls:
Quantity: 18
Diameter: 188 mm (7.33”)
Frame Construction: Stainless Steel
Belt Tracking: Hydraulically controlled tracking device
Drives & Power
Feeder Belt Drive:
4 kW / 6 HP
400V
Main Press Belt Drive:
1.7 kW / 2.3 HP
460V
Variable speed control
Included Equipment
(1) Sludge Pump

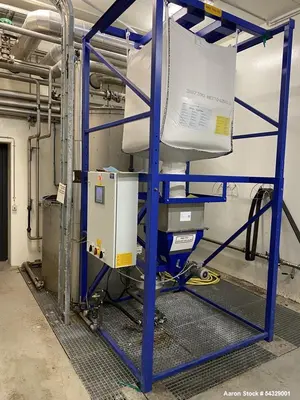

(1) Polymer Station
(1) Control Panel
Dimensions & Weight
Overall Dimensions:
Length: 5,600 mm (18’2”)
Width (Transport): 2,534 mm (8’23”)
Height: 2,250 mm (7’3”)
Weight (Empty): 9.5 tonnes
Operating Weight: 10.5 tonnes
Applications
Municipal wastewater treatment plants
Industrial wastewater processing
Sludge dewatering operations
Water recycling facilities
Food and beverage wastewater
Chemical and industrial effluent treatment
Pulp and paper wastewater treatment
Mining and mineral processing
Environmental remediation
Contract dewatering services
What Might This Be Used For
Municipal sludge dewatering
Biological sludge processing
Industrial sludge thickening
Wastewater solids reduction
Effluent treatment operations
Polymer-assisted sludge dewatering
Continuous belt press dewatering
Large-scale WWT facilities
Environmental compliance systems
Industrial solid–liquid separation
