Used

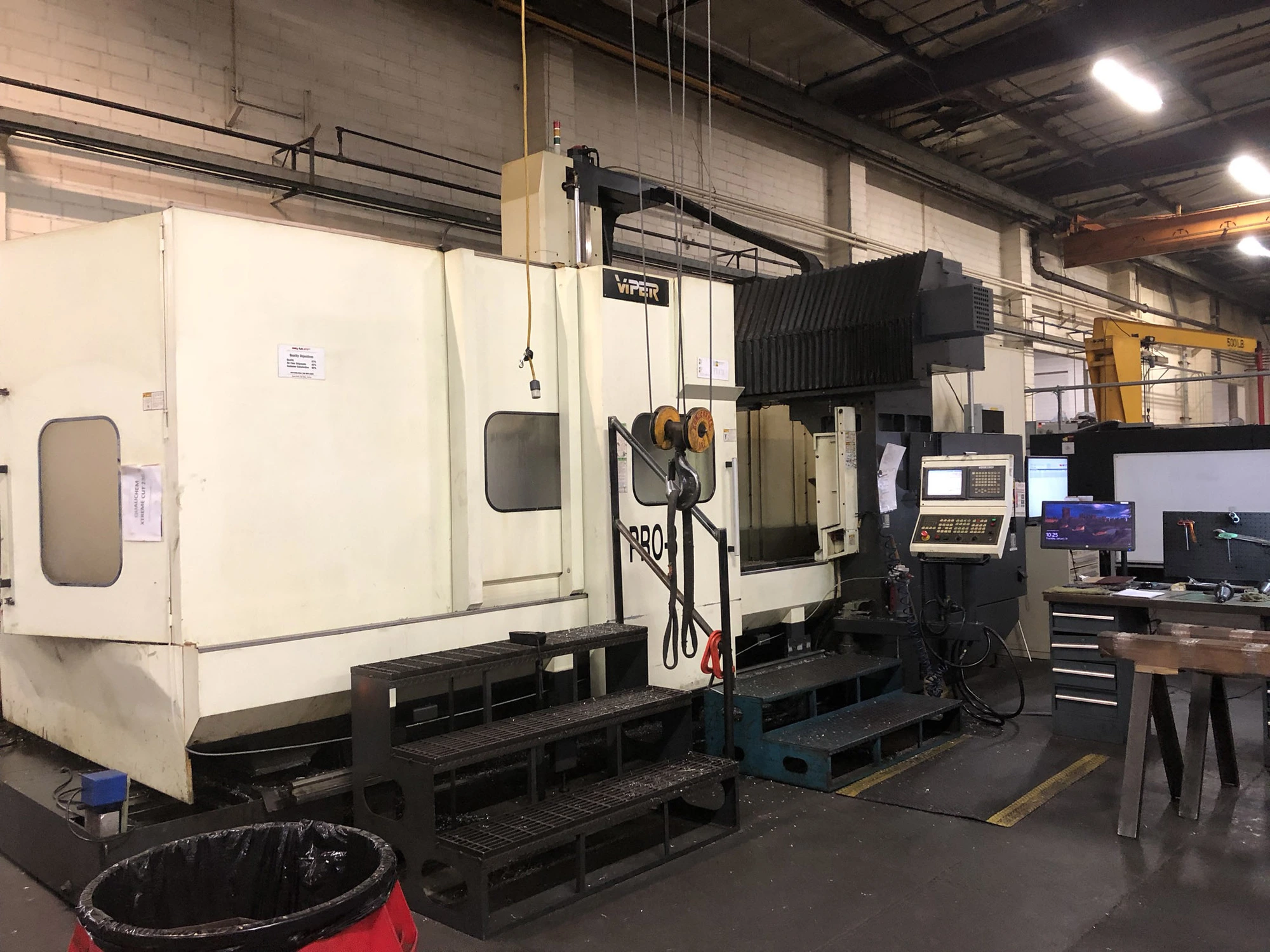

USED 2007 VIPER 3210

California, United States
891Listings|289Followers
Overview
Vertical Machining Centers

Viper Pro 3210- 2007

Specs
X Axis Travel
118.11"
3,000 mm
Y Axis Travel
82.68"
2,100.1 mm
Z Axis Travel
30.71"
780.03 mm
Spindle Motor
35 hp
26.1 kW
Spindle Speed
6,000 RPM
6,000 RPM
ATC Capacity
40
40
Spindle Taper
50
50
# Axis
3
3
Table dimensions
124" x 81"
124" x 81"
Control
CNC (Fanuc)
CNC (Fanuc)
Equipped With

Fanuc 18iMB CNC Control
124″ X 81″ Jig Table
Coolant thru Spindle
40 Station Side Mount Tool Changer
50 Taper Geared Head 6000 RPM Spindle
Powerful 35 HP high torque spindle motor
PCMCIA Card Slot
RS-252 Port
Spindle Orientation
Box Way Construction
Chip Conveyor
