USED 2007 MORI SEIKI NT-5400 DCG-1800SZ
Overview
Description

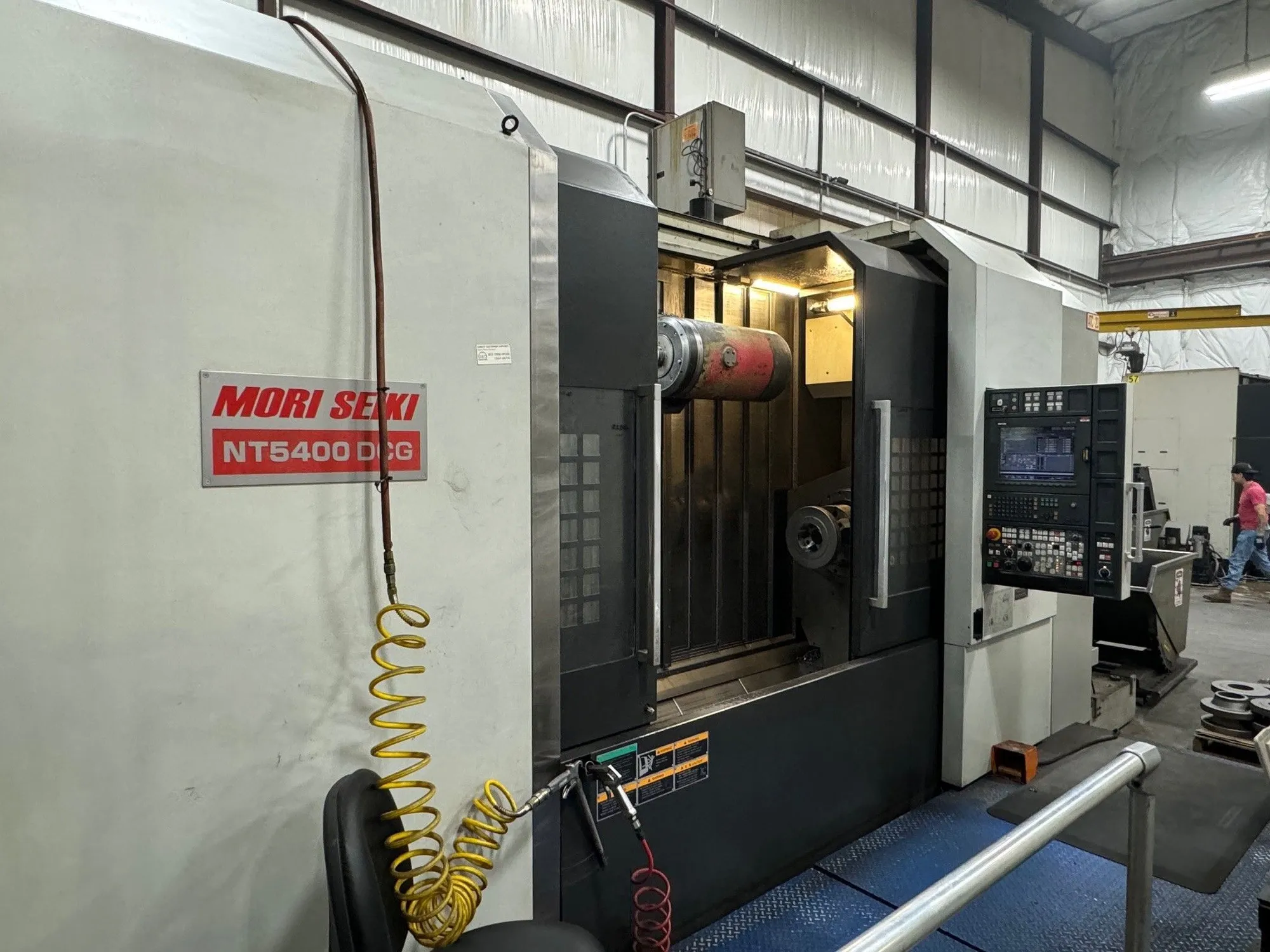

Mori Seiki NT5400 DCG/1800SZ CNC 5-Axis Horizontal Turning Center
Specifications
| # Axis | 9 | 9 |
|---|---|---|
| Swing | 36.2" | 919.48 mm |
| Machining Length | 70.8" | 1,798.3 mm |
| Chuck Size | 15" | 381 mm |
Year: 2007
Control: MSX-711 III
Max swing: 36.2"
Swing over cross slide: 36.2"
Maximum machining diameter: 36.2"
Maximum machining length: 75.6"
Main spindle speed: 2400 rpm
Main spindle bore: 4.7"
Main spindle nose: A2-11
Main motor: 50/40hp
Max sub-spindle speed: 2400 rpm
Sub spindle bore: 4.7"
Sub spindle motor: 50/40 hp
ATC capacity: 80 tools
X-axis travel: 40.9"
Y-axis travel: +/-10" from center
Z-axis travel: 76.4"
Main Milling Spindle maximum speed: 8,000 rpm
Main Milling Spindle motor: 40/30 hp
Spindle taper: C8
C-axis indexing main spindle: .001 deg
C-axis indexing sub spindle: .001 deg
Main chuck diameter: 18.0"
Number of jaws: 3
Sub chuck diameter: 15.7"4
Number of jaws: 4
B-axis: 230 degrees
Equipped With
***We strongly encourage personal inspection of all pieces of used equipment-
All Price, Location and Specifications Subject to Change without Notice-
*Preliminary equipment descriptions are intended only as a guide, items of importance should be verified by the buyer-
Freight charges are not included in sale price. Freight scheduling and costs are responsibility of the buyer. Packaging charges to ensure safety of equipment during transport for arrival on buyers truck will be added when applicable.
