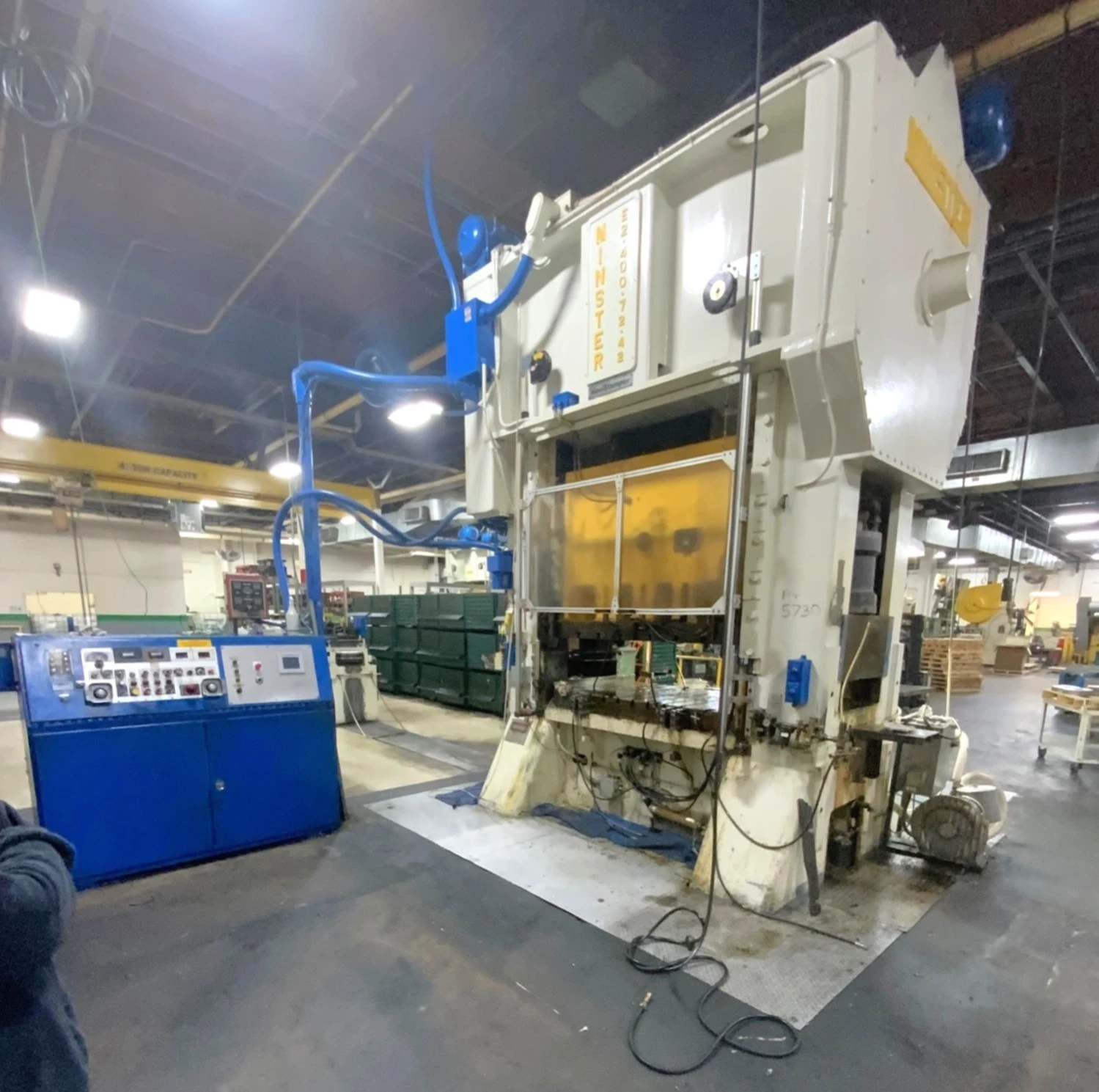

USED 1986 MINSTER E2-400-72-42

CAPACITY 400 TONS
STROKE 8"
SHUT HEIGHT TO BED 26" SDAU
SPEED 0 - 120 SPM (VARIABLE)
RAM ADJUSTMENT 6" (MOTORIZED)
BED AREA 72" RL X 42" FB
SLIDE AREA 74" RL X 42" FB (T-SLOTTED) WRIST PINS/SADDLES
ADDRESSED AS REQUIRED.
WINDOW SIZE 26" FB X 20" H
BOLSTER PLATE SIZE 6" X 72" RL X 42" FB (T-SLOTTED BOTH DIRECTIONS)
DISTANCE BETWEEN GIBS 74"
FLOOR TO BED HEIGHT 55"
AIR CLUTCH MINSTER AIR CLUTCH & BRAKE ASSEMBLY - NEW LININGS AND
OTHER PARTS AS REQUIRED
PRESS CONTROLS CIECO 1100 R6 (RESOLVER BASED) INCLUDED. UPGRADE TO CIECO
AUTOMATOR II - ADD $ 15 K.
MAIN MOTOR 75 HP, 1755 RPM, 460-3-60V EDDY-CURRENT DRIVE.
INCLUDE RECONDITIONING MOTOR & NEW DRIVE BOARD
APPROX. DIMENSIONS 17' H X 13'6" RL X 8' FB
APPROX. WEIGHT 104,000 LBS
OTHER ADDITIONS: FRAME LINE-BORED, CRANKSHAFT CHECKED FOR CRACKS AND
STRAIGHTNESS. NEW MAIN BEARINGS
