Used

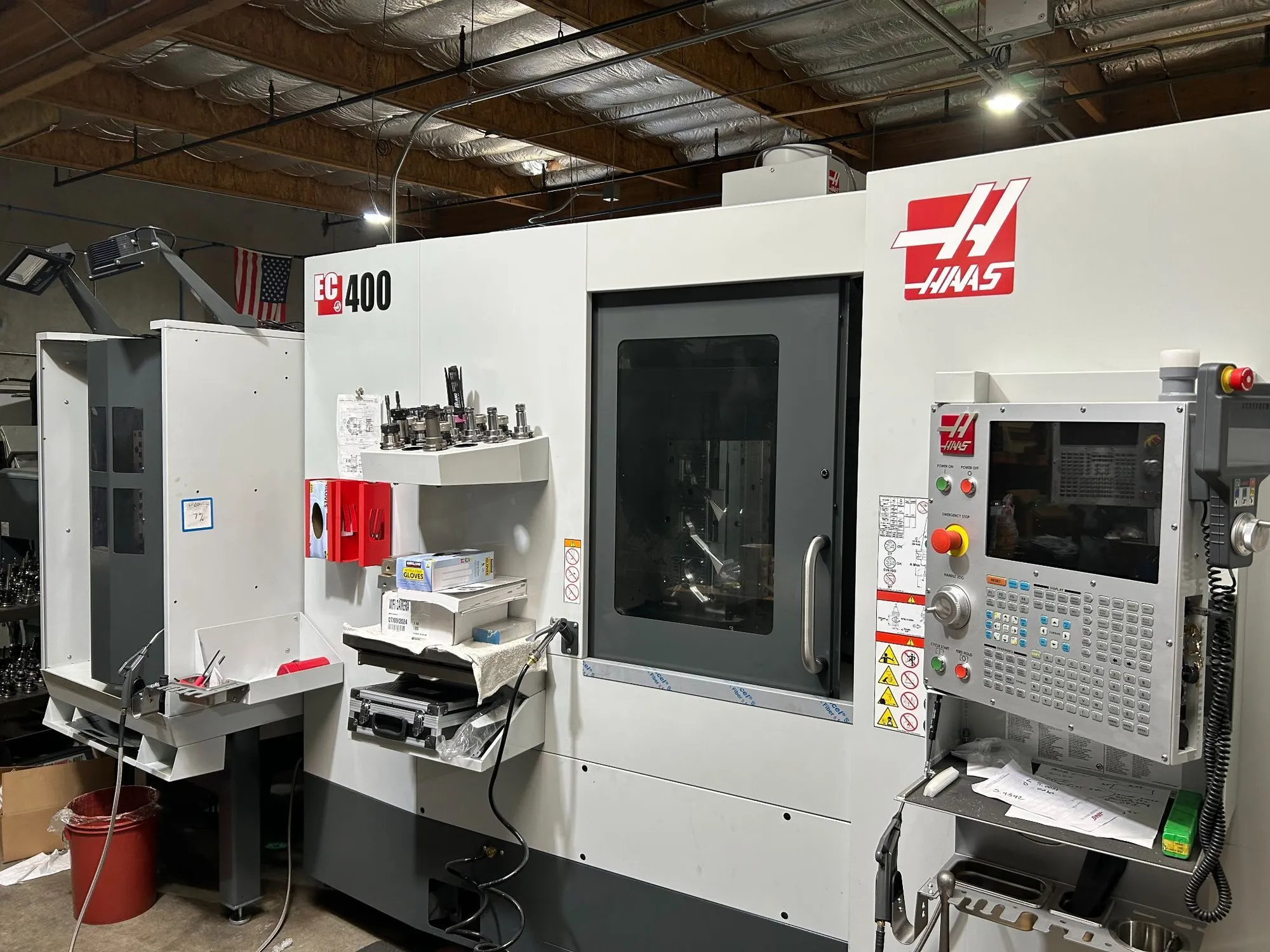

USED 2024 HAAS EC-400

California, United States
898Listings|312Followers
Overview
Horizontal Machining Centers

2024 HAAS EC-400, lightly used, 22" x 25" x 22" travel, 30 hp, 12,000 RPM spindle, and 101 ATC capacity. Includes 6+1 pallet pool, coolant systems, and Wi-Fi camera. Advanced HAAS CNC with Renishaw WIPS. Tombstones not included.

Specs
X Axis Travel
22"
558.8 mm
Y Axis Travel
25"
635 mm
Z Axis Travel
22"
558.8 mm
Spindle Motor
30 hp
22.4 kW
Spindle Speed
12,000 RPM
12,000 RPM
ATC Capacity
101
101
Spindle Taper
CT40
CT40
Max Load
500 lb
226.8 kg
Pallet Size
15.75" x 15.75"
15.75" x 15.75"
Number of Pallets
7
7
Cut Hours
0 hr.
0 hr.
Equipped With

HAAS CNC Control
Through Spindle Coolant 300 psi
Wireless Intuitive Probing Renishaw (WIPS)
Belt-Type Hennig Chip Conveyor
Fully Integrated 6+1 Pallet Pool
Through Tool Air Blast
100 Side Mount Tool Changer
WIFI Camera
8 Spare M Functions
Dynamic Work Offsets & Tool Center Point Control
High Speed Machining
Auxiliary Coolant Filter System
Enclosure Exhaust System
*Tombstones Not Included*
