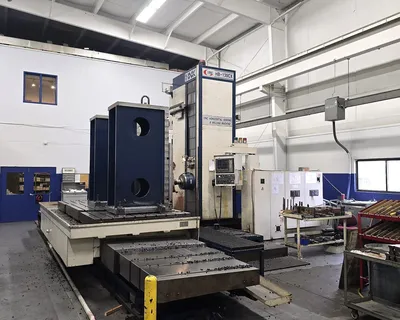

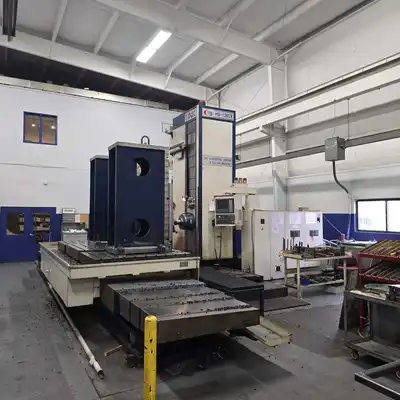

2000 HNK-130CX Horizontal Boring Mill. 5.1" Spindle. 157" X-Axis, 90" Y-Axis, FANUC 18iMB CNC
| Spindle Size | 5.12" | 130.05 mm |
| X-Horiz Tvl of Table | 157.48" | 4,000 mm |
| Y-Vert Tvl of Head | 90.55" | 2,300 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Table-W | 62.99" | 1,599.9 mm |
| Table-L | 157.48" | 4,000 mm |
| Spindle Tvl. | 27.5" | 698.5 mm |

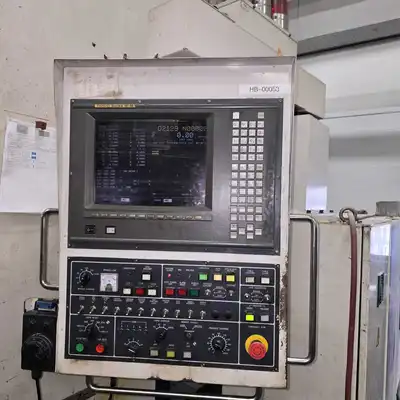

| Control | CNC (FANUC 18iMB) | CNC (FANUC 18iMB) |
| Dimensions | 397" X 291" X 193" HIGH | 397" X 291" X 193" HIGH |
| Weight | 108,000 lbs | 108,000 lbs |
Main Specifications
BORING SPINDLE DIAMETER: 5.1"
STROKE:
X AXIS: 157"
Y AXIS: 90"
Z AXIS: 51"
W AXIS: 27.5"
DISTANCE FROM SPINDLE NOSE TO CENTER OF TABLE: 30" - 80"
DISTANCE SPINDLE CENTER TO TOP OF TABLE: 0 - 90"

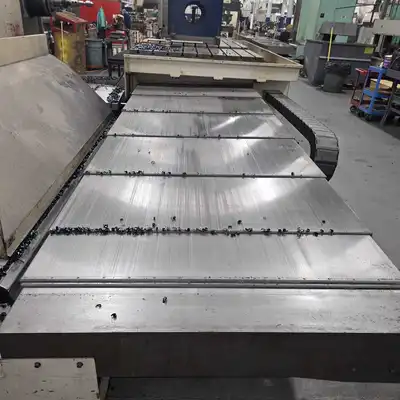

TABLE:
DIMENSION: 63" X 157"

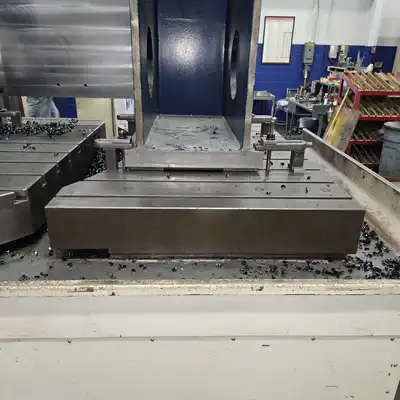

ROTARY TABLE DIMENSION: 63" X 63"
ALLOWABLE LOAD: 33,000 LBS.
ROTARY TABLE ALONE: 22,000 LBS.
ROTARY INDEX: .001 DEGREE WITH 90 DEGREE SHOT PINS
SPINDLE HEAD:
POWER: 35 HP
SPEEDS: 5 - 2500 (3 GEAR RANGES)
SPINDLE TAPER: ISO #50, 7/24 TAPER
MACHINE WEIGHT: 108,000 LBS.
MACHINE DIMENSIONS: 397" X 291" X 193" HIGH
TOOL CHANGER:
60 TOOLS CAPACITY
TOOL SHANK / PULL STUD: CAT 50 / MAX 403 B50T
MAX TOOL WEIGHT: 55 LBS.
MAX TOOL LENGTH IN ATC: 16"
