USED UNION BFP 130 CNC

Name: USED UNION BFP 130 CNC
Brand: UNION
SKU: 541661
Availability: InStock

Safety note

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

Overview

Type:

Horizontal Floor Type Boring Mills

Manufacturer:

UNION

Model:

BFP 130 CNC

Description

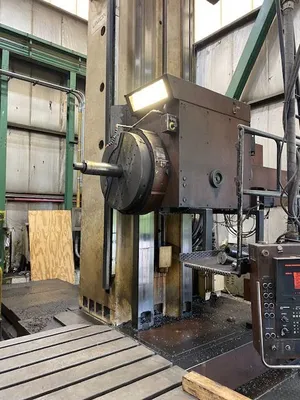

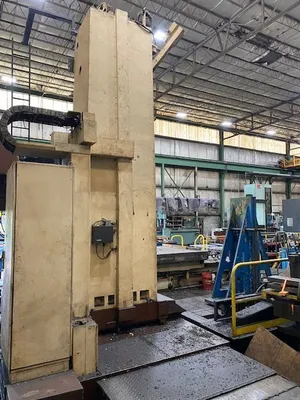

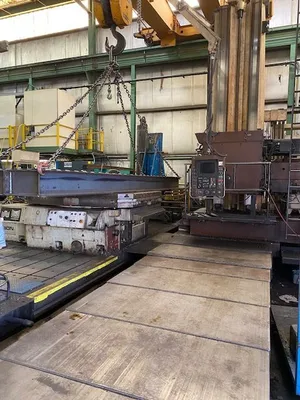

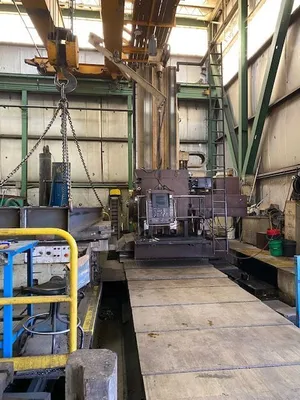

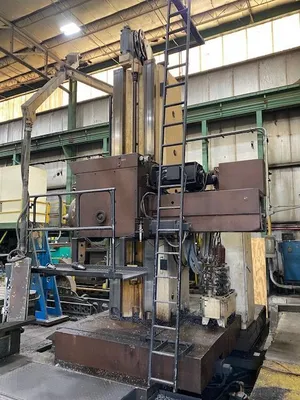

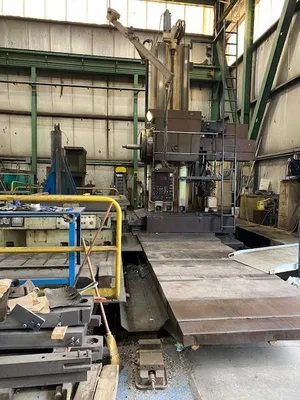

Used UNION BFP 130 CNC Horizontal Floor Type Boring Mill. A reliable tool from a reputable manufacturer, ideal for precision machining tasks. Suitable for those seeking quality equipment in operational condition.

Specifications

ImperialMetric

Spindle Size	5"	127 mm
X-Horiz Tvl of Col	220"	5,588 mm
Y-Vert Tvl of Head	119"	3,022.6 mm
RPM	1,000 RPM	1,000 RPM
Table-W	86.6"	2,199.6 mm
Table-L	86.6"	2,199.6 mm
Z-Spdl Tvl	119"	3,022.6 mm
Control	CNC (HEIDENHAIN TNC 355 CNC Control)	CNC (HEIDENHAIN TNC 355 CNC Control)
Dimensions	157" x 103"	157" x 103"
Weight	90,000 Lbs	90,000 Lbs

Spindle Diameter 5.12"
Spindle Taper ISO 50
Horizontal Column Travel, X-Axis 220.5"
Vertical Travel of Head, Y-Axis 119”
Column In feed, Z-Axis 16.55"
Spindle Travel, W-Axis 35.43"
Spindle Speeds, 4-Ranges 5-1000 RPM
Rapid Traverse, X & Y Axes 196.85 IPM
Rapid Traverse, Z & W Axes 118.11 IPM
Feeds, All Axes 98.42 IPM
Table Size 86.6" x 86.6"
Table In feed 59.05"
Table Feeds, longitudinal 05 - 6.2 IPM
Table Rapids, longitudinal 78.11" IPM
Rotary, Feeds @ 41.14"Dia 05 - 6.21PM
Rotary, Rapids @ 41.14" Dia 78.74"
Table Weight Capacity 39,600 Lbs
Number T-Slots 9
T-Slot Center Distance 9.84"
Number Cross Slots 2
Center Hole Diameter 11.81"
Center Hole Depth 39"
Table Height 37.4"
Approximate Overall Table Weight 25,300 Lbs

Equipped With

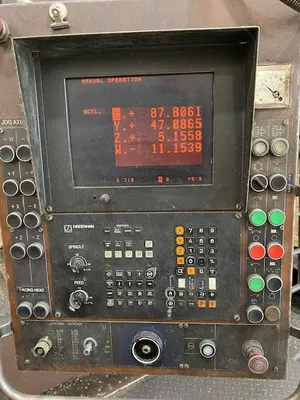

HEIDENHAIN TNC 355 CNC Control

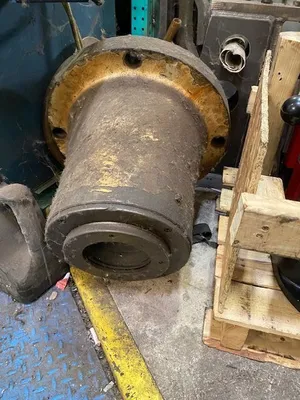

Spindle Support

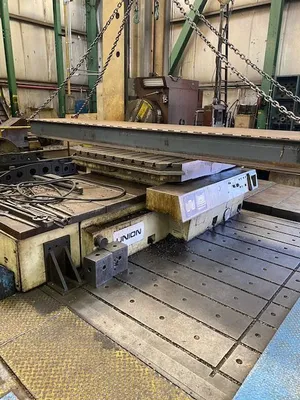

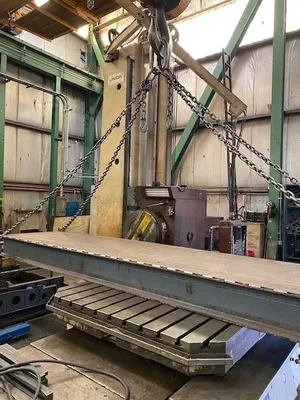

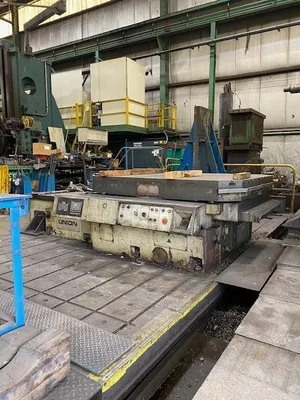

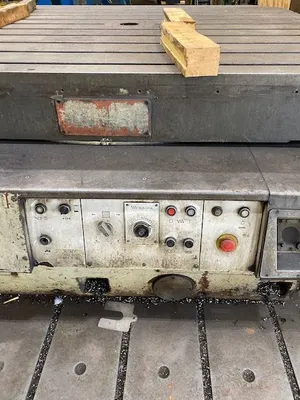

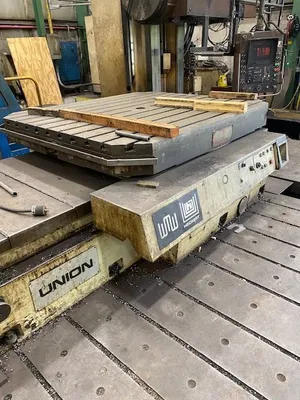

In feeding Rotary Table
Telescoping Steel Way Covers on X-Axis
Independent AC Servo Motor Drives
Hardened & Ground Ways
Steel Sliding Way Covers
67 HP Spindle Drive Motor

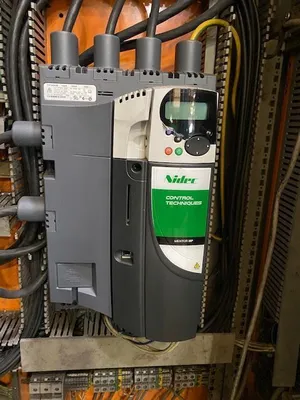

New spindle drive in 2020, Spindle motor was rebuilt.
