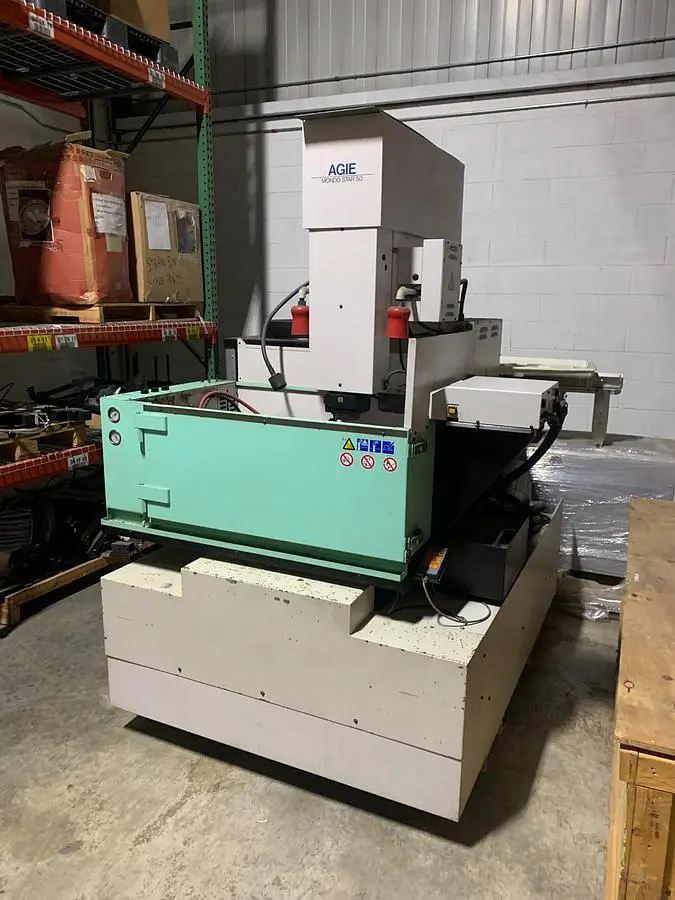

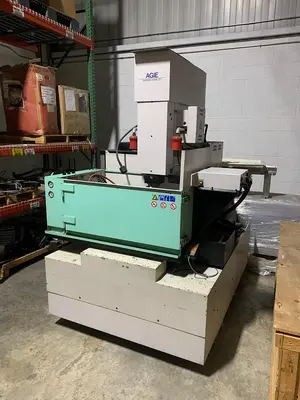

USED 2000 AGIE CHARMILLES GROUP MONDO STAR 50

Travels (X x Y x Z): 19.6" x 13.7" x 13.7"
Rapid Traverse: 37 IPM
Work Table: 29.5" x 21.6"
Max. Workpiece: 33.8" x 25.5" x 12.4"
Max. Table Load: 1,100 lbs
Work Tank Size: 40.1" x 26.7" x 15.7"
Distance - Spindle to Table Top: 9.8" - 23.6"
Max. Electrode Weight (No C Axis): 220 lbs.
Programmable Increment: 0.0001"
Servo Resolution: 0.0000025"
C Axis Specs -: Programmable Increments: 0.001 Degree | Positioning: Absolute & Relative | Programmable Rotation Speed: 0 - 55 RPM | Max. Electrode Weight: 110 lbs.
Measuring System: Optical Encoder
Drive System: DC Digital Closed Loop Motor

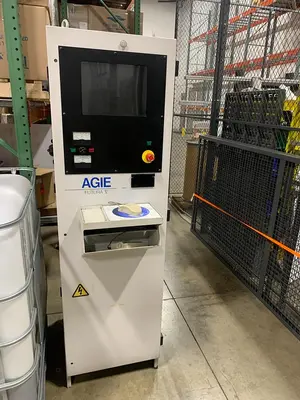

Control: Futura V
Dielectric Fluid Capacity: 140 gal
Filter Type: Paper Cartridge (two)
Pump Flow Rating: 10 GPM
Peak Amperage: 60
Average Amperage: 40

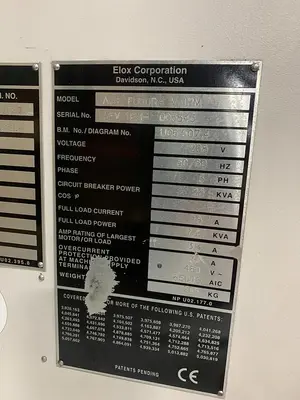

Power Requirement: 220V/3PH/60Hz
