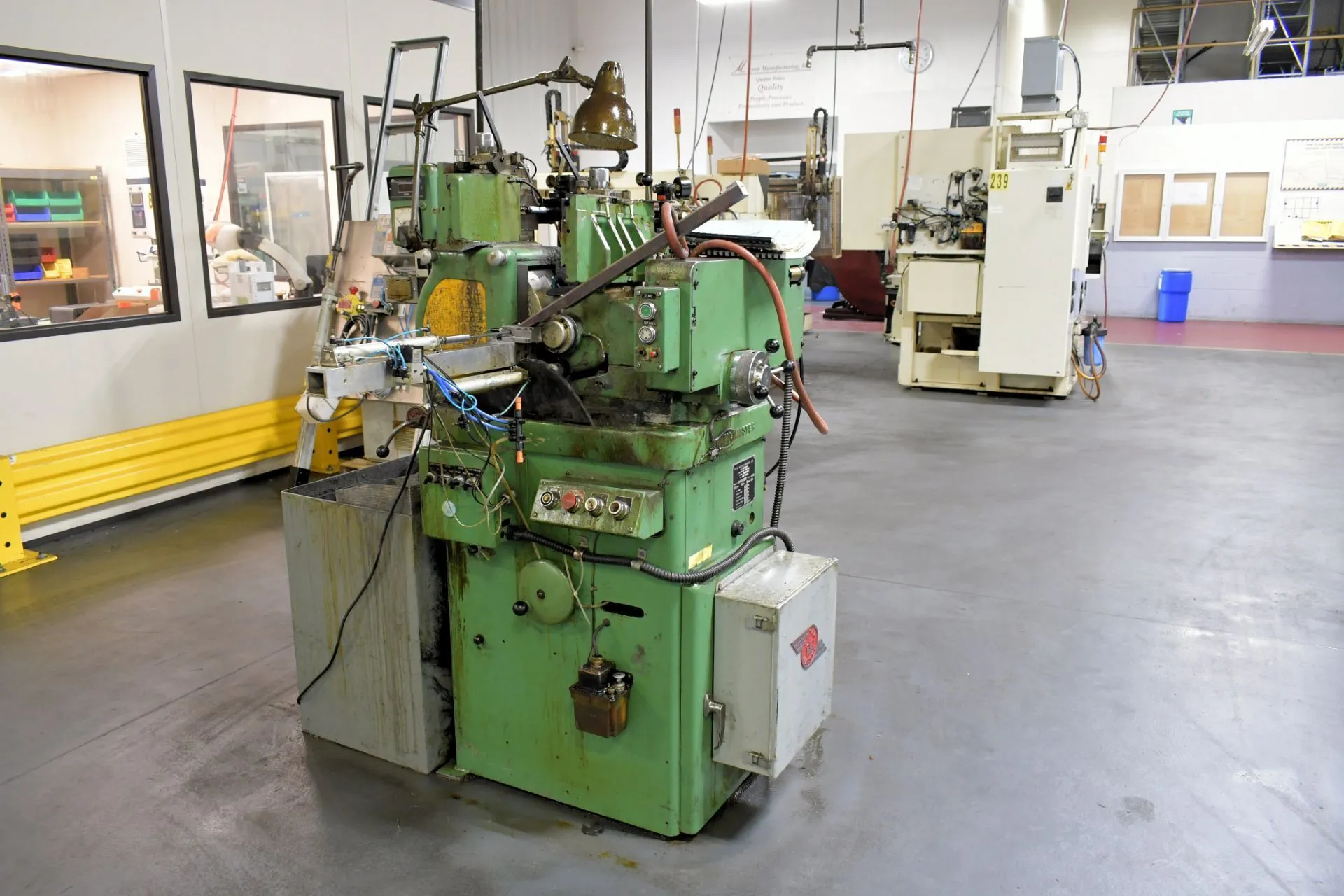

USED 1996 ROYAL MASTER TG12X4
Overview
Royal Master TG12X4 Centerless Grinder with Automatic Cycle Option, 1996 model. Handles infeed/thrufeed 0.004"-1.5" dia., 12' length on 0.5" dia. Features constant speed 2040 RPM grinding wheel, variable-speed regulating wheel, precision spindle, and more.
Specs
CAPACITY:
INFEED AND THRUFEED ....... 0.004" TO 1.5" DIA.
LENGTH .....................12' ON 0.5" DIA.
WHEELS:
MAXIMUM GRINDING WHEEL .... 12" DIA. x 4.5" WIDE
MINIMUM GRINDING WHEEL .... 10" DIA. x 1/4" WIDE
MAXIMUM REGULATING WHEEL .. 6" DIA. x 4.5" WIDE
MINIMUM REGULATING WHEEL .. 1/4" WIDE W/SPOOL
SPINDLE SPEEDS:
GRINDING WHEEL ....... CONSTANT SPEED 2,040 RPM
REGULATING WHEEL....... INF. VARIABLE 25 TO 480 RPM
REGULATING WHEELHEAD:
MAX. ANGLE OF TILT FOR
THRUFEED GRINDING ........ 6 DEGREES
MAX. SWIVEL FOR
TAPER GRINDING ........... 5 DEGREES
APPROXIMATE FLOOR SPACE ... 24" x 48"
APPROXIMATE WEIGHT ........ 2,800 LBS
Equipped With
AUTOMATIC CYCLE OPTION .... AUTOMATIC INFEED
"PRECISION" REGULATING WHEEL SPINDLE
"AIR-SENSING" HIGH ACCURACY DRESSER FOR THE
GRINDING WHEEL
"AIR-SENSING" HIGH ACCURACY DRESSER FOR THE
REGULATING WHEEL
PRECISION REGULATING WHEEL HOUSING, WITH
AUTO LUBRICATION
DIGITAL RPM INDICATOR FOR THE REGULATING WHEEL SPEED
INFEED WORK REST
DIAL INDICATOR FOR REGULATING WHEEL MOVEMENT
COOLANT SYSTEM
SELF CONTAINED HYDRAULIC SYSTEM
7.5 H.P. MAIN DRIVE MOTOR
3/60/208-230-460 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS,
14 FULL LOAD AMPS
** INSPECT UNDER POWER IN HARRISON, NJ **
*** EXCELLENT CONDITION & APPEARANCE ***
