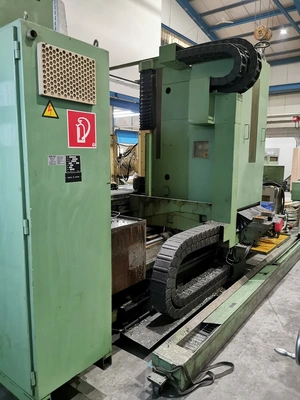

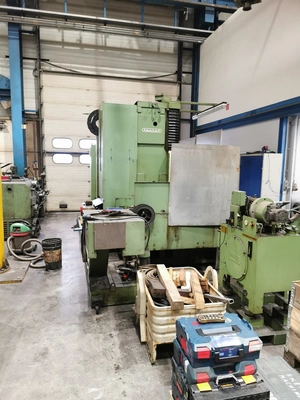

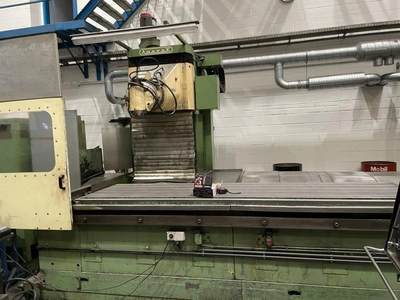

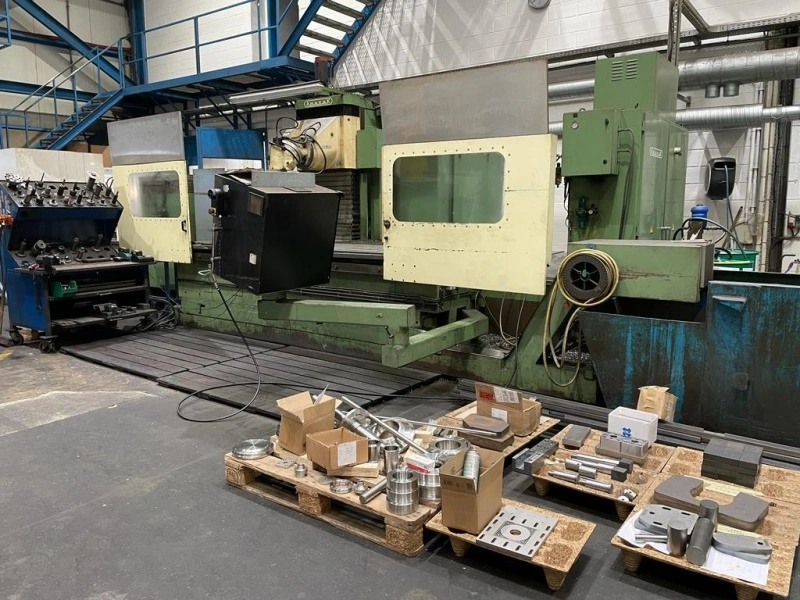

ANAYAK Travelling Column Bed Type Milling Machine, good working condition, visible under power, VIDEOS
Overview
FBZ HV-2500, table size / load 3300×1000 mm / 8 tpm, XYZ 2500×935×900 mm, spindle 3000 rpm / ISO 50

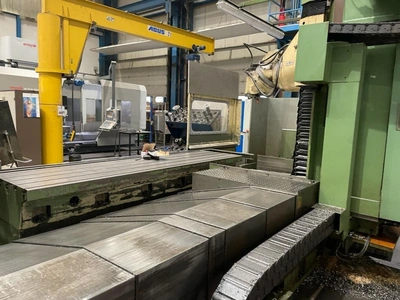

Table
Size 3300×1000 mm
T-slots 5× 22 mm
Load 8000 kg/m
Travels
X-axis 2500 mm
Y-axis 935 mm
Z-axis at vertical milling 900 mm
Z-axis at horizontal milling 1400 mm
Spindle
FANUC motor power 40P 18.5/22 kW
BARRUFALDI gearbox 1/4
Speeds range 70÷3000 rpm
Taper ISO 50 - DIN 69871

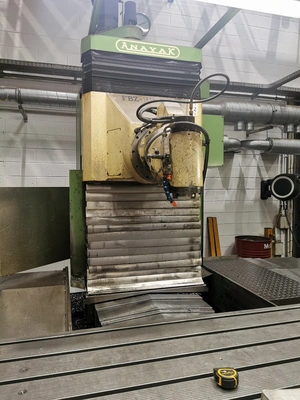

Milling head
HURON type C-axis horizontal/vertical CNC controlled
B-axis vernier manually adjustable
Automatic spindle taper blowing out
Feeds
Max work rates 5000 mm/min
Rapid rate XYZ 10 m/min
Machine weight 20000 kg
Complete with

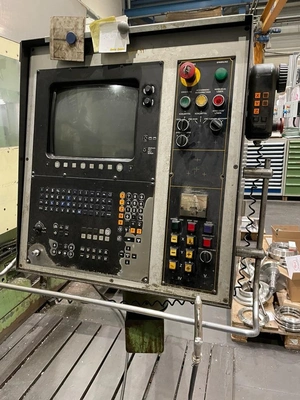

HEIDENHAIN TNC 415 control
HR330 electronic handwheel
Automatic heat compensation system
Control: CNC, HEIDENHAIN TNC 415
Price should be understood ExWorks (INCOTERMS®) loaded.

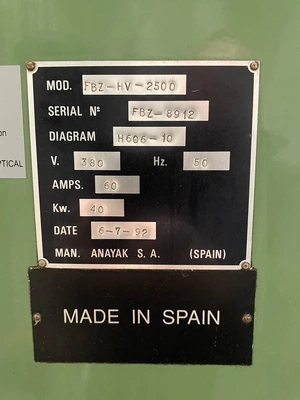

Manufactured 1992, installed 1993. In good working condition, visible under power.
Year: 1992
Location : Europe
