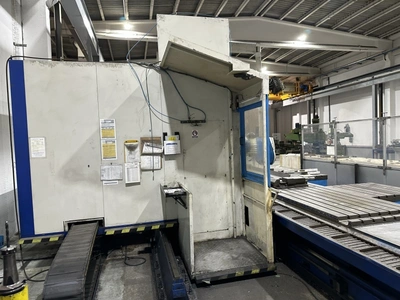

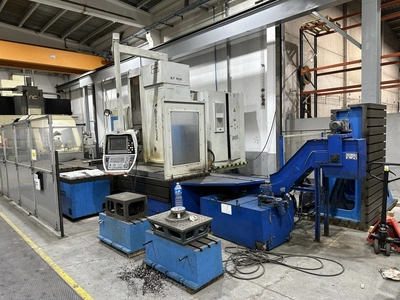

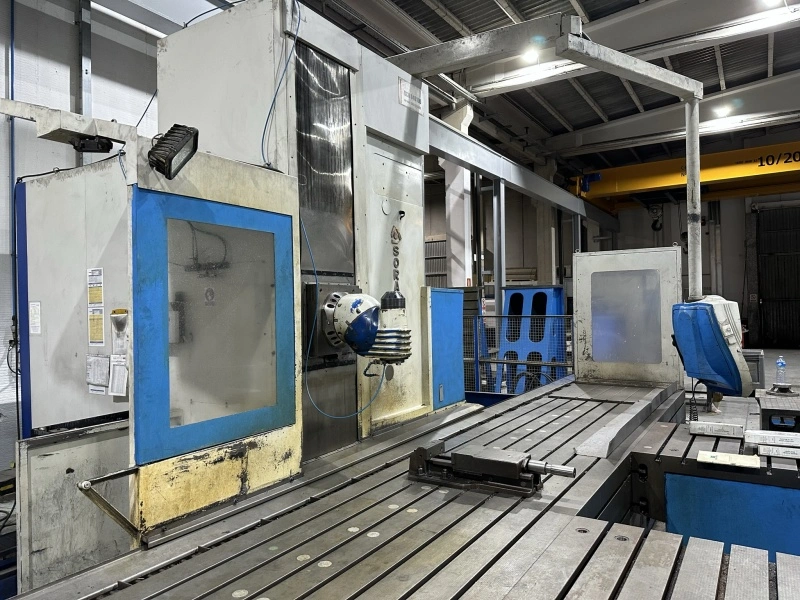

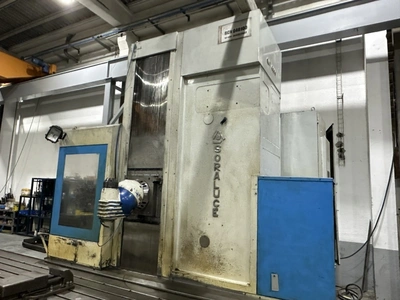

SORALUCE CNC Travelling Column Bed Type Mill, in good used condition, POA

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

Overview
Year:
2004
Stock #:
4421
Description

SLP6000, table size / load 6000×1100 mm / 25000 kg, XYZ 4500×1300×1800 mm, spindle speed 4000 rpm, accessories
Table
Size: 6000×1100mm
Load 25000 kg
Number of T-slots 7

Travels
X-axis 4500 mm
Y-axis 1300 mm
Z-axis 1800 mm
A+B-axis 2.5º+2.5º

Spindle
Speeds range 20÷4000 rpm
Taper ISO 50 DIN 69871

Feeds 25000 mm/min

Power, dimensions and weight
Motor power 30 kW
Overall dimensions L×W×H 8275×4840×4130 mm
Weight 34000 kg

Complete with:
Through tool coolant
Electronic handwheel

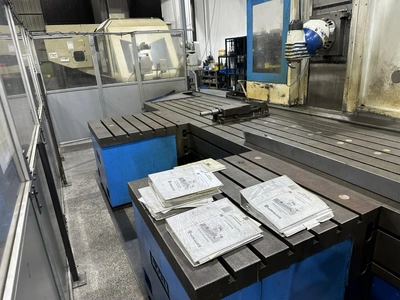

2× additional tables 1000×1000 mm

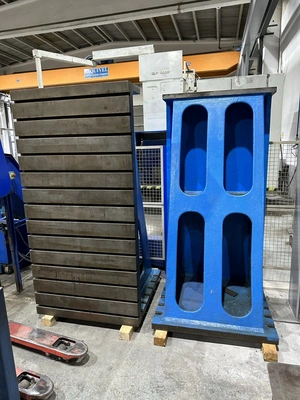

2× angle plates

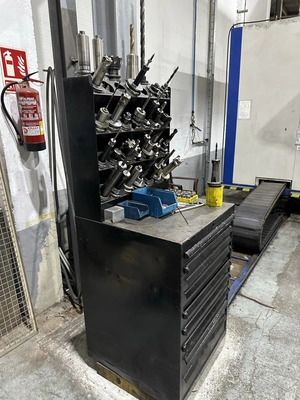

Tooling
Swarf conveyor
Hydraulic tool locking

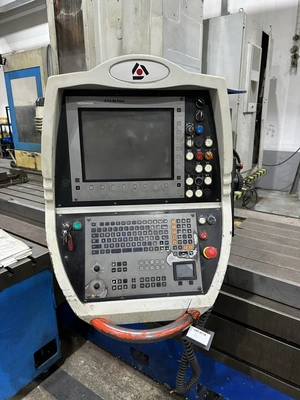

Control: CNC, HEIDENHAIN iTNC 530
Year: 2004
Location : Europe
