MAHO 3+2-axis Universal Machining Centre & 2× VDF BOEHRINGER CNC Lathes, 3× machines all in good used condition in one lot

MAHO MH 800 C, VDF BOEHRINGER DUS 560 and VDF BOEHRINGER DUS 800

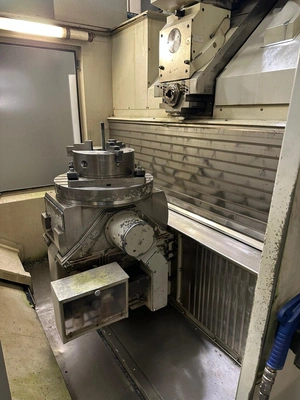

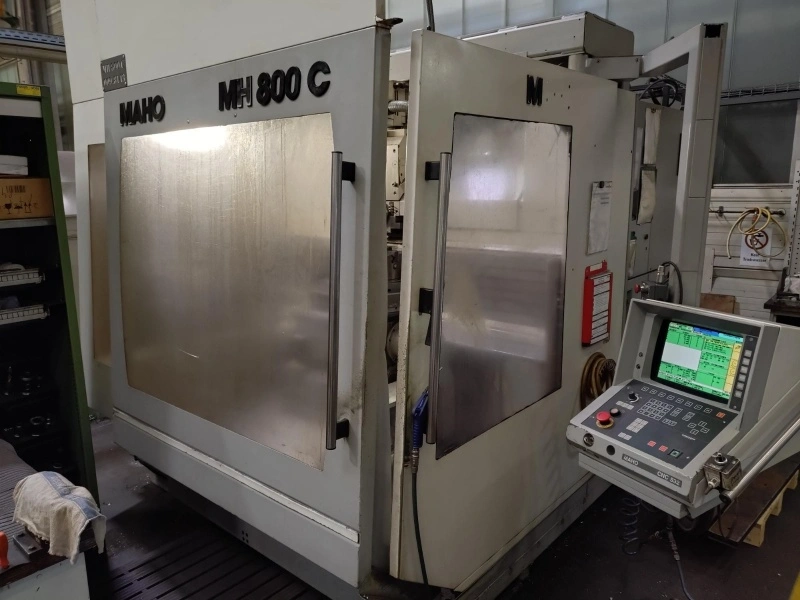

1. MAHO MH 800 C 3+2-axis Universal Machining Centre

Year: 1988

Control: CNC, PHILIPS 532

Specification
Table
Type NC rotary and swivelling
Clamping surface ø520 mm
Bore ø30H7
Number of T-slots 5
Max load 300 kg

Spindle
Speeds 20÷6300 rpm
Quill vertical stroke 80 mm
Head swivelling ±90⁰
Pull stud ISO 7388/II type B

Travels
X-axis 800 mm
Y-axis 500 mm
Z-axis 600 mm
A-axis -45⁰÷20⁰
B-axis 360⁰

Feeds
Range XYZ, stepless 1÷8000 mm/min
Rapids:
- XY 8 m/min
- Z 10 m/min

ATC
Type Chain
Tool positions 30
Tool taper SK 40 / DIN 69871/1
Max tool length 315 mm
Max. tool diameter free / full posts ø80 mm / ø130 mm
Max tool weight 10 kg
Max loading capacity 150 kg

Power, dimensions and weight
Power consumption 29 kVA
Overall dimensions L×W×H 3.75×3.7×2.6 m
Weight approx. 6,200 kg

Complete with
- PHILIPS 532 5-axis control with 14’ colour screen
- Manual control panel
- Automatic swivelling milling head (vertical/horizontal)
- Through spindle coolant
- Full protective panelling
- V 24 interface - DNC operation
Central lubrication
Coolant system

Condition
Machine is in good working condition, video available on request.

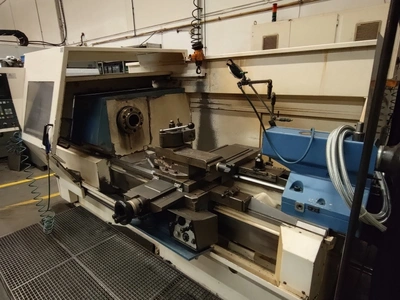

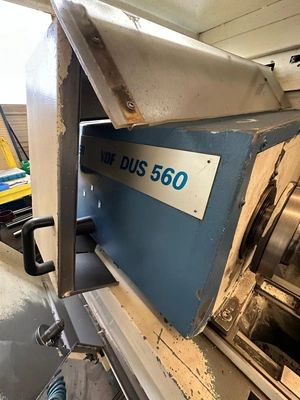

2. VDF BOEHRINGER DUS 560 CNC Lathe

Year: 1993

Control: CNC, SIEMENS SINUMERIK

Specification
Swing over:
- bed / ø570 mm
- carriage ø365 mm
Turning length 1000 mm
Multi fix tool holder

Condition
Machine is in good working condition.

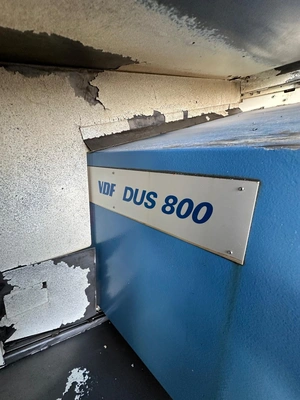

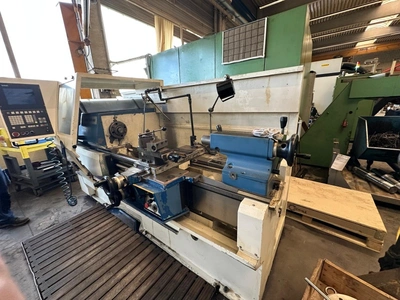

3. VDF BOEHRINGER DUS 800 CNC Lathe

Year: 1997

Control: CNC, SIEMENS SINUMERIK

Specification
Swing over:
- bed / ø820 mm
- carriage ø520 mm
Turning length 1500 mm
Multi fix tool holder

Condition
Machine is in good working condition.
Control: CNC
More pictures available on request.
Location : Europe
