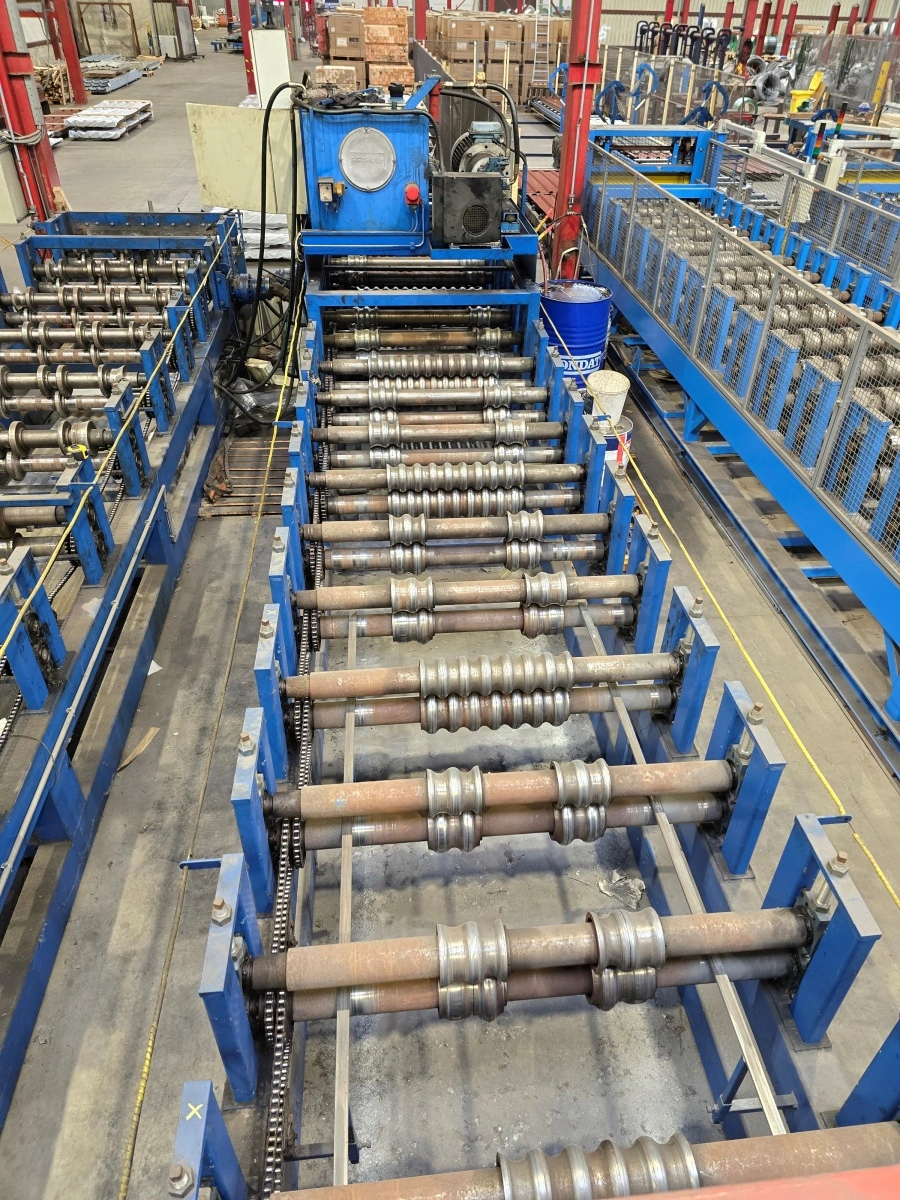

PROFIILIKESKUS OY FINLAND Roofing and Cladding Profile Roll Formers, 2× in working order, POA

Line A - wave profile type 18.76.988 (H 18 mm, pitch 76 mm, thick. 0.8 mm) & Line B - trapezium profile type 45.333.1000 (H 45 mm, pitch 333 mm, thick

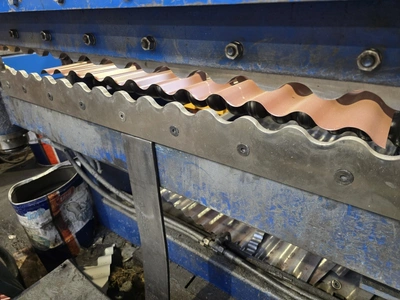

Line A for wave profile type 18.76.988
Max profile height 18 mm
Max wave pitch 76 mm
Sheet thickness 0.4÷0.8 mm
Max finished product width:
- 1064 mm at coil width 1250 mm
- 836 mm at with coil width 1000 mm

Line B for trapezium profile type 45.333.1000
Max profile height 45 mm
Max trapezium pitch 333 mm
Sheet thickness 0.4÷0.8 mm
Max finished product width 1000 mm at coil width of 1250 mm or 1220 mm

Required floor space for the whole installation approx:
- length 30-35 m
- width 5-6 m

Complete with:
1× slitting head and 1× recoiler, which can be displaced whether to A or B Rollformers
Motors: rollformers and decoilers are operated with hydraulic motors, one central hydraulic unit feeds both line

Scope of supply:
Rollformer type A
Rollformer Type B
Recoiler for the slit material

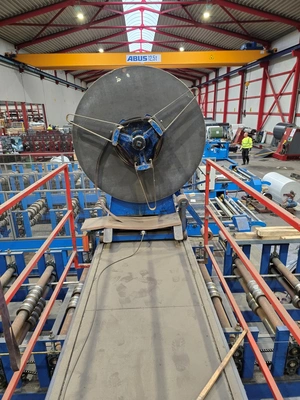

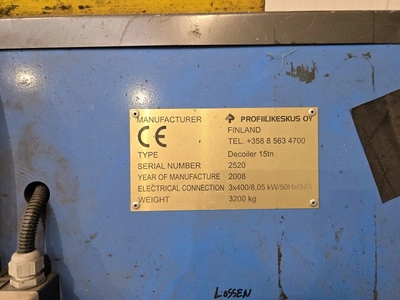

Decoiler 15 tons
Decoiler 7 tons
One stacking table for max length of profile 14 m, which table can be used for rollformer A or B
Control: PLC
The rollformers are manufactured 2001, decoilers 2008. Lines have been operating until 2024, not under power anymore. General maintenance recommended.
More pictures available on request.
Year: 2001
Location : Europe
