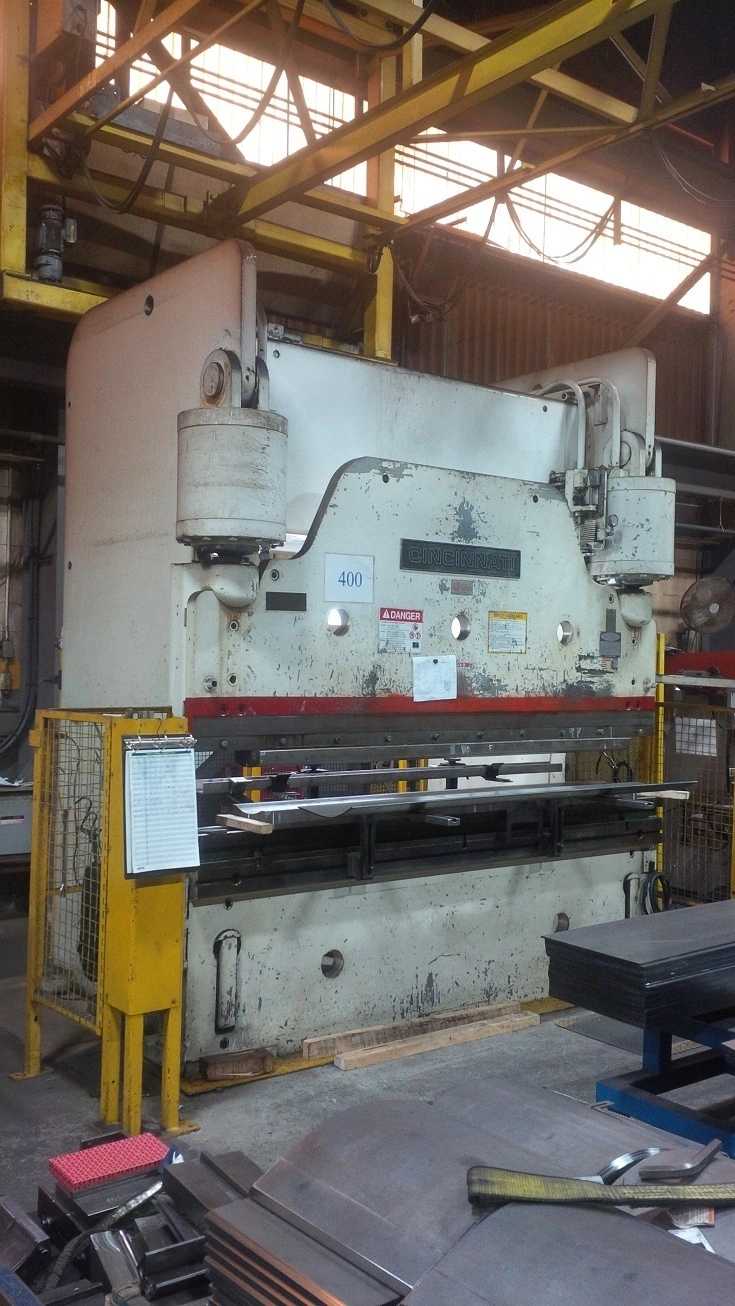

300 ton x 10' Cincinnati Model 300H Series 8 Hydraulic Press Brake,
| Tonnage | 300 T | 272.156 t |
| Type | HYD | HYD |
| OA Length | 10' | 3 m |
| Between Housings | 8' | 2.4 m |
Capacity: 300 Tons
Length (Nominal): 10'
Distance Between Housings: 8'6"
Overall Die Surface: 10'
Bending Capacity Mild Steel: 3/8" x 8'
Stroke: 12"
Open Height: 20"
Closed Height: 8"
Speeds:
77 Ipm fast approach
37 Ipm pressing
80 Ipm return
Main Motor Drive: 40 HP
Control: Metal Form Products
https://youtu.be/sWJSmGGnCDE
Approximate Dimensions: 139"(LR) X 81"(FB) X 140"(H)
Approximate Weight: 30,000 Lbs.
