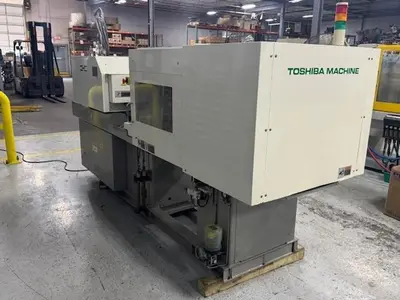

USED 2010 TOSHIBA EC45NIIV30-1

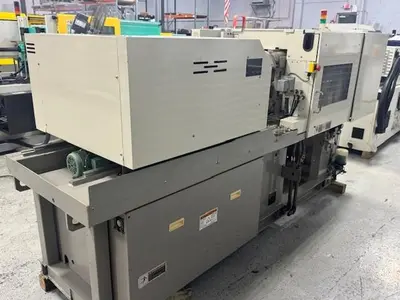

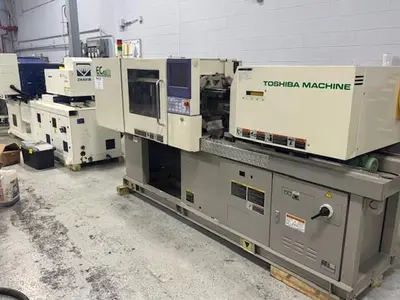

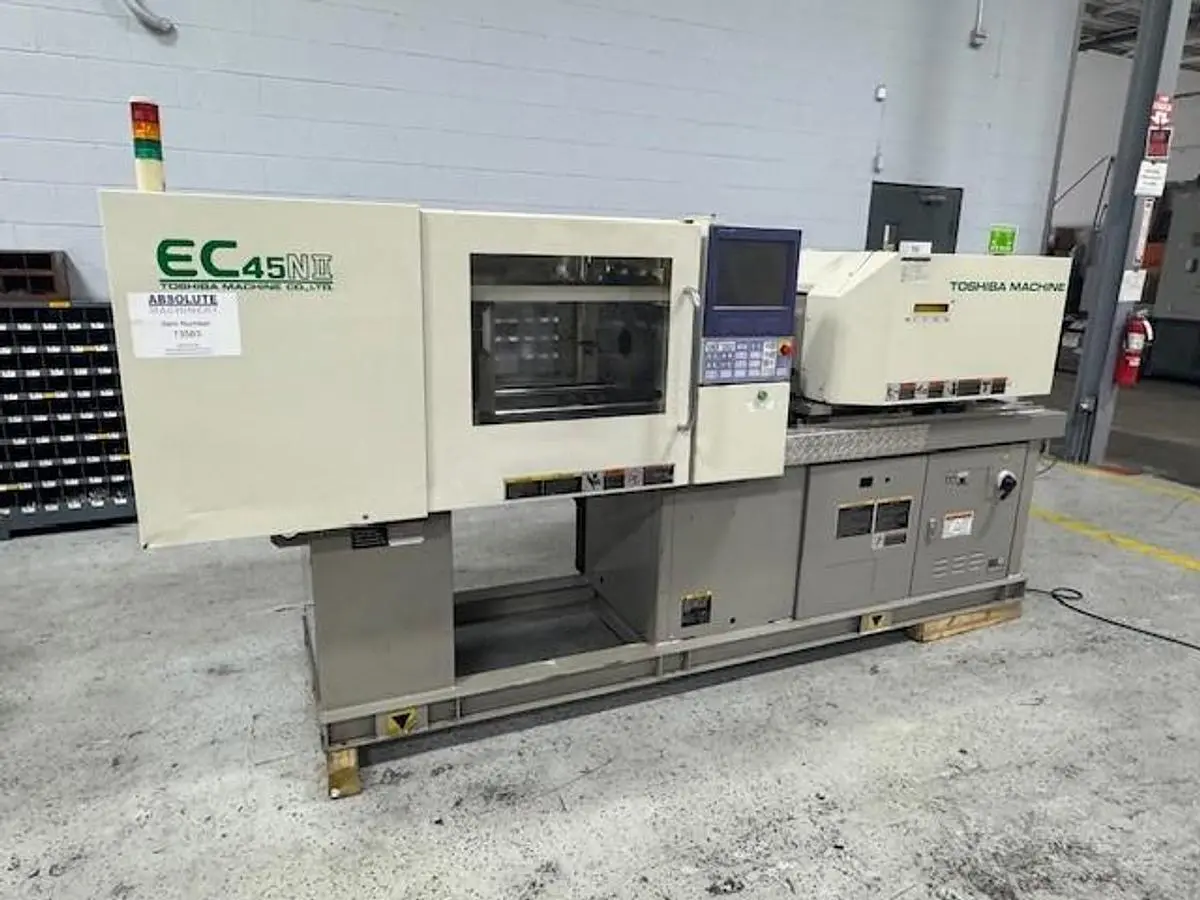

The Toshiba EC45N II Injection Molding Machine, model EC45NIIV30-1, is a horizontal injection molding machine with a US tonnage of 44 tons, suitable for small to medium production needs. Manufactured in 2010, this used machine comes with a shot size capability of 1.23 ounces of polystyrene. The machine features a screw diameter of 0.87 inches and can achieve an injection pressure of up to 37,427 PSI, making it efficient for precision molding tasks.

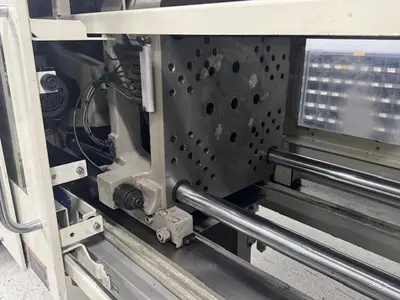

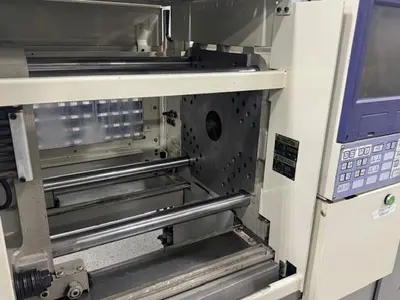

The platen size measures 18.1 inches by 18.1 inches, with tiebar spacing of 12.6 inches by 12.6 inches, allowing a moderate range of mold sizes. The opening stroke is 9.84 inches, with a maximum open daylight of 22.4 inches and a closed daylight range from 5.9 to 12.6 inches. An ejector stroke of 2.36 inches adds to the functionality, making mold ejection efficient and reliable.

Controlled by a V30 system and operating on a voltage of 220V/3ph/60Hz, this machine ensures precision and consistency in production. It's equipped for reliable performance in various industrial applications, providing a balance of power and versatility for advanced molding processes.

US Tonnage: 44 Ton
Shot Size (oz. of PS): 1.23
Screw Diameter: .87"
Injection Pressure (PSI): 37427
Injection Unit Code: i1
Barrel Code: Y
Platen Size: 18.1" x 18.1"
Tiebar Spacing (HxV): 12.6" x 12.6"
Opening Stroke: 9.84"
Max. Open Daylight: 22.4"
Closed Daylight (Min. Mold): 5.9 ~ 12.6
Ejector Stroke: 2.36"

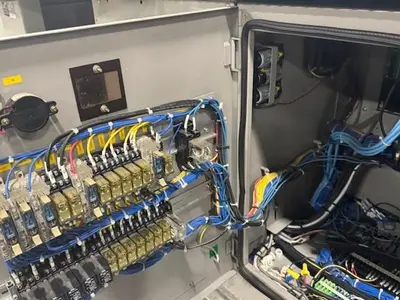

Control: V30
Voltage: 220V/3PH/60Hz
