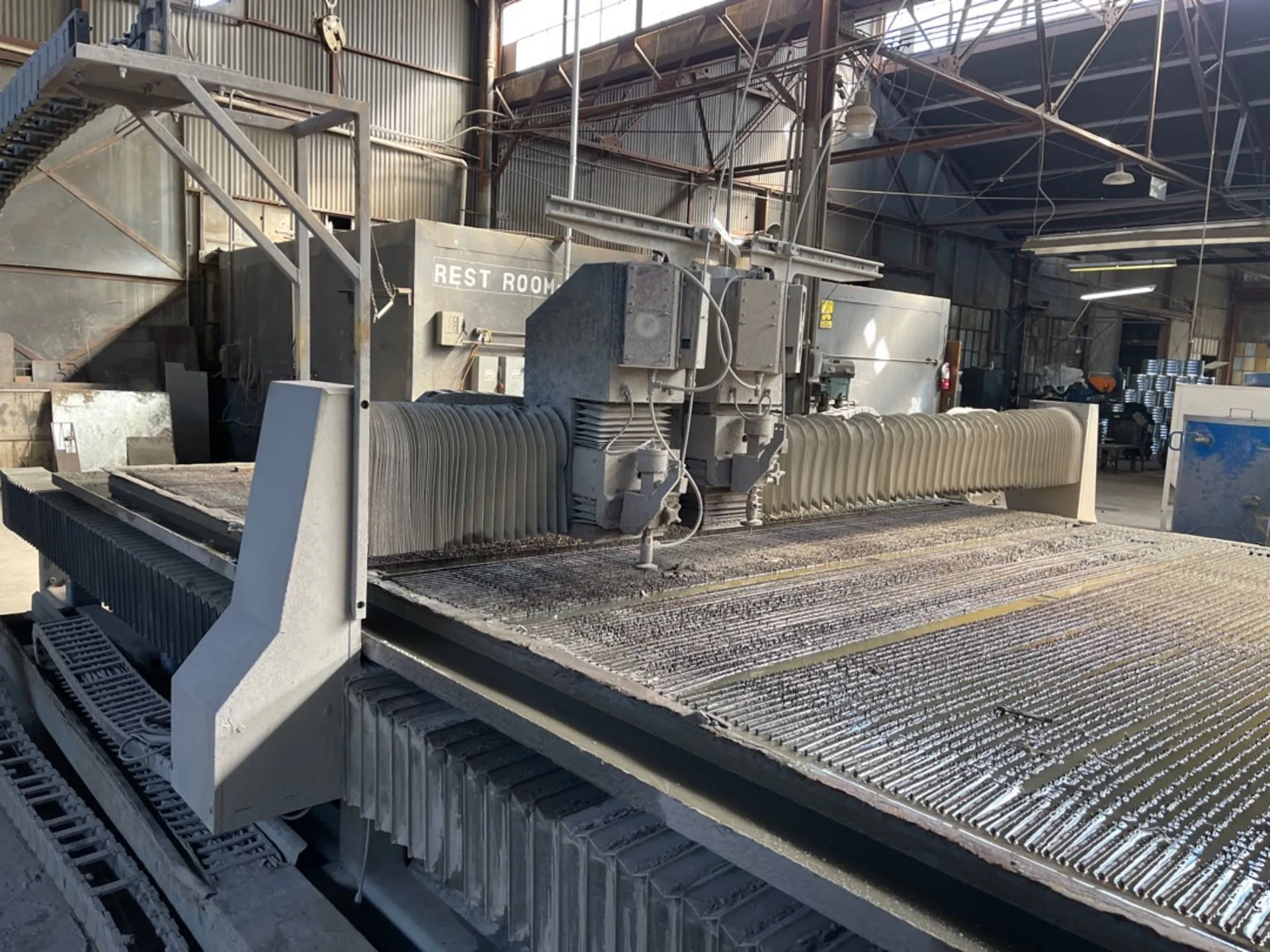

USED 2008 CALYPSO LWA

Bridge Gantry X-Y Table: 10’ x 20’
Travel X axis (width): 121”
Travel Y axis (depth): 245”
Travel Z Axis (Tool): 8”
Bridge parks completely out of the work area providing
complete clearance for loading material
Rapid Traverse: 1000”
Profiling/Contouring: 0.01 to 500”
Controller
Control Console: Industrially Hardened and Climate Controlled PC
Control Features:
● Nema 4 Enclosure – water and dust tight
● Mk4 Waterjet Control system
● PC based (Windows 10)
● Requires 20 amp single phase at 230 vac (+/-10%)
● External USB 4-port hub
● Wifi Capable
● Bluetooth Capable for Remote Operator Android App
Intensifier Pump HP: 100 HP
Operating Pressure: 60,000 PSI
Intensifier Type: “ESL”
Pump Output: 1.0 gal/min output in normal operation
Voltage: 200 amp service req’d at 208-240 vac
HP Pump
Pump Features:
● Pump control fully integrated to the waterjet control system
● Start/Stop/Estop
● Pressure Hi/Low/Auto
● Pump diagnostics returned to console
● Hydraulic Accumulator
● Improves high pressure water profile, making smoother cuts
● Improves life of hydraulic components by reducing pressure spikes
● Pump Protection Sensor Suite:
● Water Pressure low, Low Oil, High Oil Temp
Abrasive Delivery System
Supply: Dual 600 LB bulk delivery hopper to automatically maintain abrasive
Flow Metering: Programmable Digital Rotary Feeder Over the Cutting Head
Flow Rate: 0.25 Lb. per min to 1.5 Lb. per min
