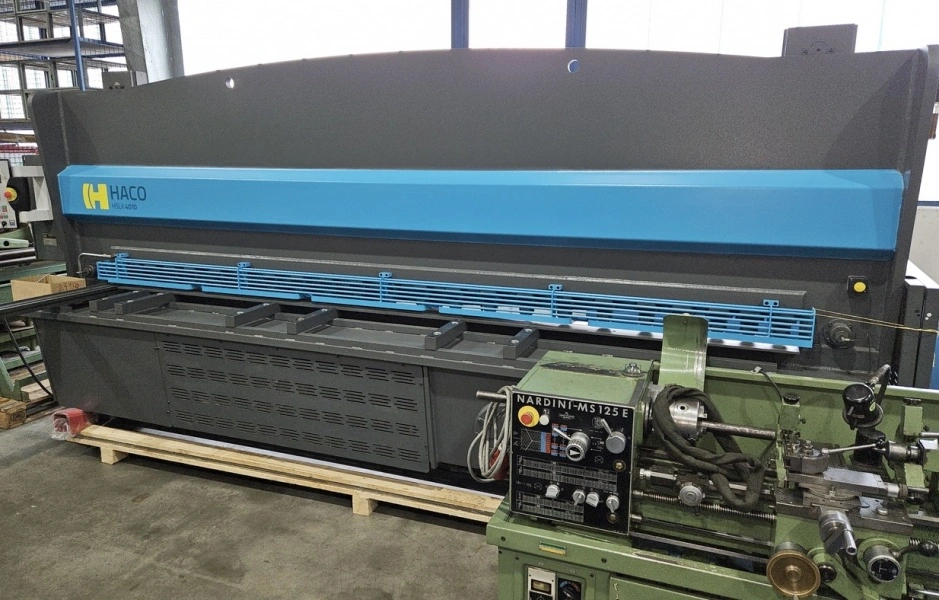

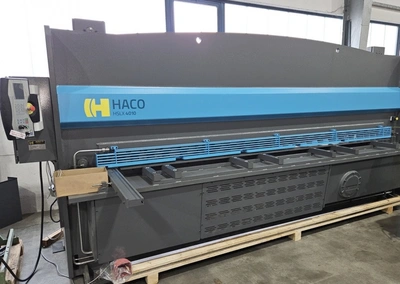

HACO CNC Guillotine Shear (2023), new machine, never used

HLSX 4010, cutting capacity in steel 405010 mm, incl. 2× sets of blade
Max cutting length 4050 mm
Max sheet thickness:
- St 45 10 mm
- VA 6 mm
Table height 1030 mm
Cutting angles range 0.5°÷3°
Cutting gap adjustment 0.05÷1 mm
Backgauge travel 1000 mm
Backgauge speed 110 mm/sec
Strokes per minute range 7÷11
Working height 1030 mm
Oil capacity 220 liters
Angle support length 1000 mm
Motor power 18.7 kW
Overall dimensions L×W×H ca. 5150×2900×2400 mm
Weight ca. 13000 kg

Complete with:
SC 100T control system with ergonomic control panel
Easy operation directly on the cutting table
23× Hold-downs operating independently of shearing pressure
Motorized backgauge 1000 mm
Electronic cutting gap adjustment
Wire-guided cutting line illumination for optimal visibility and fast cutting sequences
Automatic main motor shutdown after a preset timer
Electro-hydraulic cutting angle adjustment via 2 pushbuttons or CNC
1000 mm angle stop with scale, T-slot, and folding cams
Shear table with square supports and roller support
Precision-ground, case-hardened blades suitable for steel and stainless steel
Mobile foot pedal for easy and safe operation
Finger guard made of round steel with grip recess
Light barriers and safety fences
CE marking
Electronic manuals
Control: CNC, SC 100T
Price should be understood ExWorks (INCOTERMS®) loaded on truck.
Year: 2023
Location : Europe
