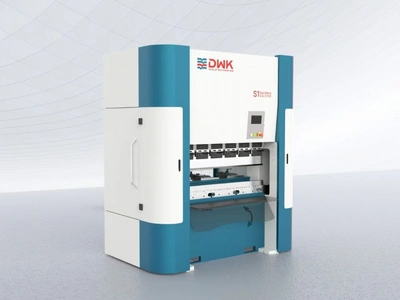

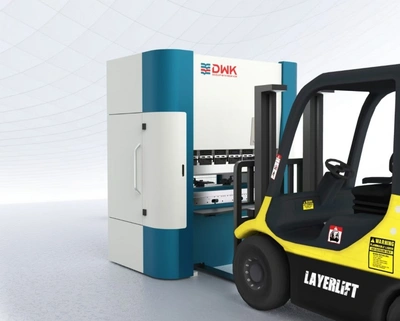

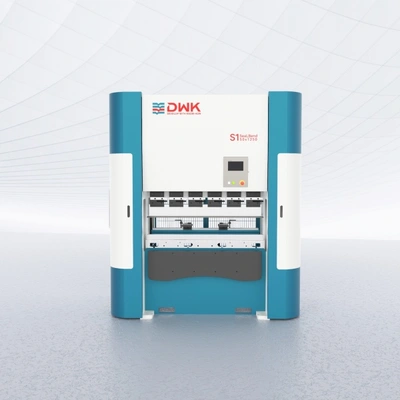

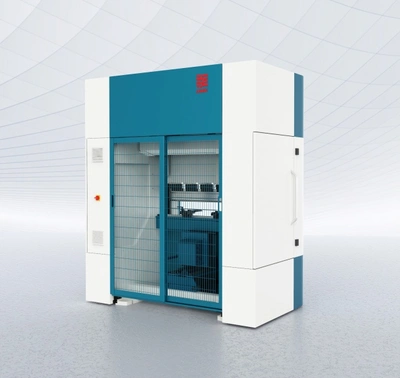

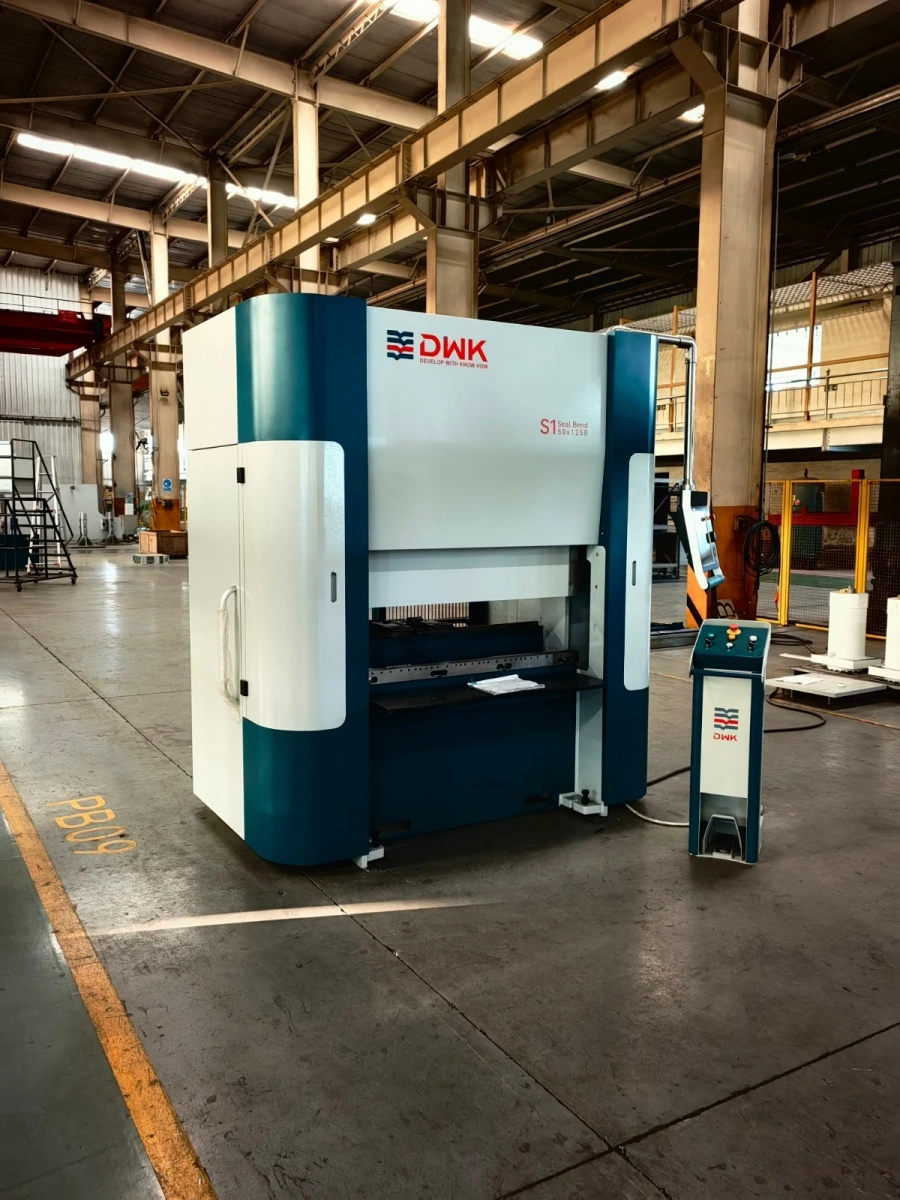

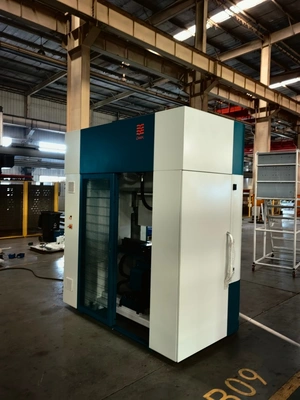

DWK S-Series CNC Electro-Hydraulic Press Brake, brand new, showroom machine, VIDEO

DWK S-Series CNC Electro-Hydraulic Press Brake, brand new, showroom machine, VIDEO

USD $33,892.49
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Press Brakes
Manufacturer:
DWK
Year:
2024
Stock #:
4105
Description

S1 20×1250 SeaLBend, nominal force 500 kN, bending length 1250 mm
Nominal force 500 kN
Bending length 1250 mm
Distance between columns 1300 mm
Open Height 540 mm
Ram stroke 200 mm
Down speed 150 mm/s
Pressing speed 16 mm/s
Return speed 180 mm/s
X-axis travel 300 mm
X-axis working speed 400 mm/s
X-axis accuracy ±0.05 mm
Oil volume 162 l
Workpiece straightness ≤±0.3/1000 mm
Bending angle accuracy ≤±1°
Overall dimensions L×W×H 2110×1215 (w/o support) / 1351 (w support) × 2370 mm
Approx weight 3600 kg

S-Series characteristics
- Begins with innovative design, 3D modeling, and finite element analysis. Advanced design tools, reasonable machine structure, elegant appearance, safe and reliable use, friendly operation interface.
- O frame design without throat which cause frame deformation very tiny, due to the solidness of structure, the precision of bended products are fully guaranteed.
- Fast bending speed because of optimized performance parameter
- Equipped with fully enveloped guard to ensure the safety of the machine tool operation.
- Optional movable combo die system (complete both bending and hemming without changing die).
- Max bending capability up to 160 t / 4100 mm.
- One set of toolings available in our tool library, and very convenient for management and daily operations.
Control: CNC
Price should be understood FOB (INCOTERMS®).
Year: 2024
Location : China
