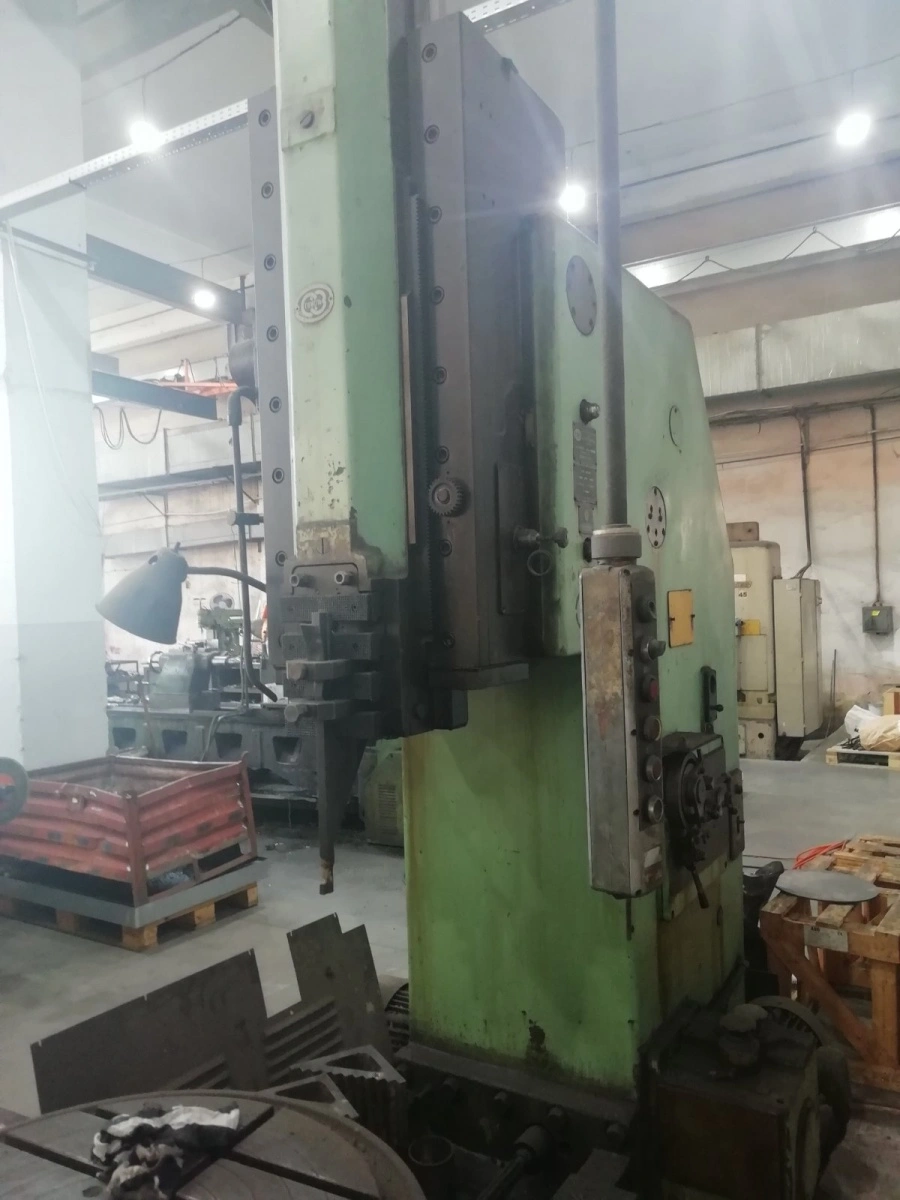

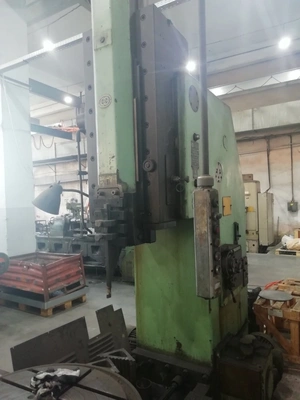

GOMEL Slotter, in good used condition, POA
USD $8,593.69
Description
7D450, table diameter ø800 mm, stroke 500 mm, max workpiece height ext / int 650 / 325 mm
Capacity
Max workpiece height
- external slotting 650 mm
- internal slotting 325 mm
Table
Diameter ø800 mm
Travels
- longitudinal 800 mm
- cross 650 mm
- rotation 360
Ram
Stroke:
- min 120 mm
- max 500 mm,
Max daylight 700 mm
Distance between toolhoder surface and column 710 mm
Feeds
- table longitudinal per ram double stroke 0,1-2,5 mm
- table cross per ram double stroke 0,1-2,5 mm
Power, dimensions and weight
Power:
- main motor 11 kW
- fast feeds drive 3 kW
Overall dimensions LxWxH 3540x2890x3465 mm,
Weight 8200 kg
Control: Conventional
Year: 1976
Location : Bulgaria
