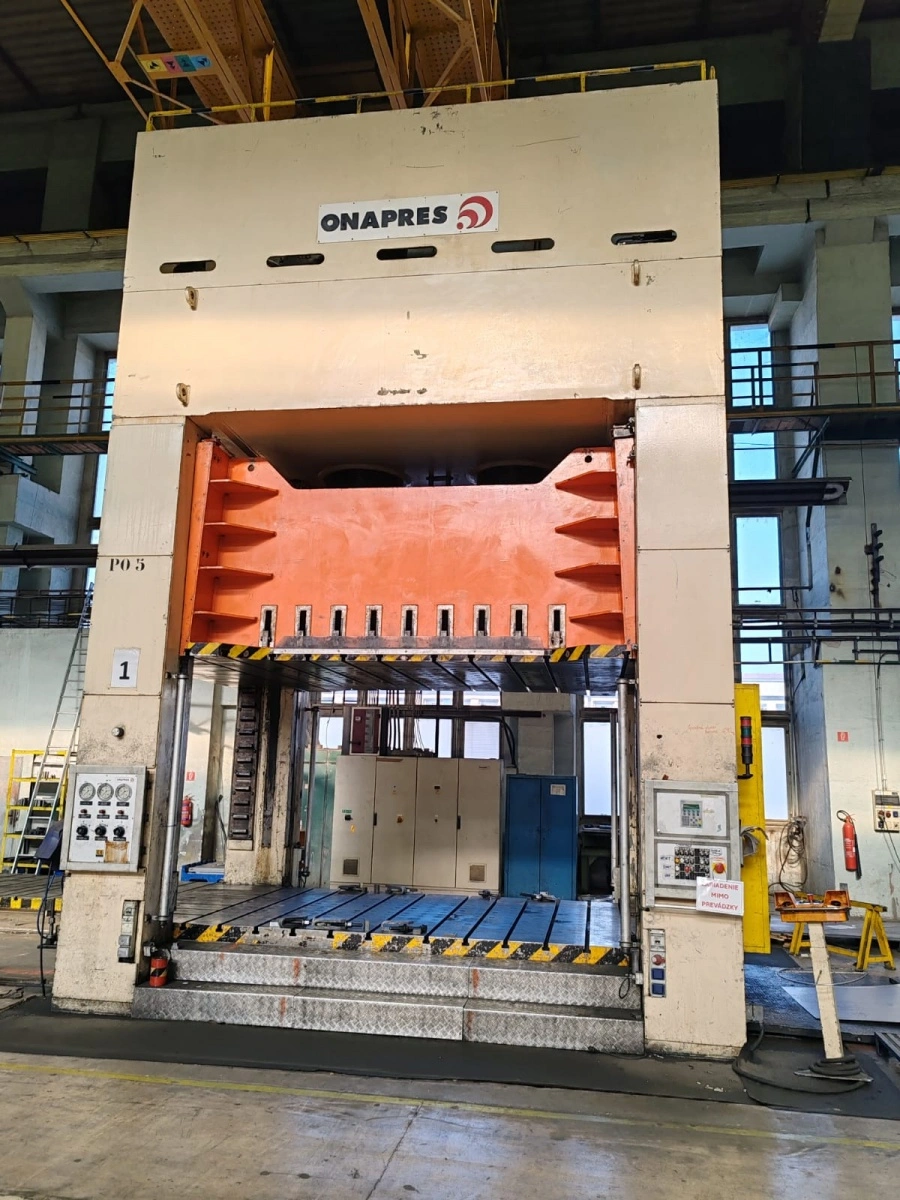

ONAPRES Hydraulic Press, in good used condition, POA

EMd-120-3,5-AL, nominal effort 12000 kN, table / ram size 4900×2500 mm
Capacity
Pressing force 1200 t
Reverse force 124 t
Distance between ram and table 400÷2100 mm
Distance between columns:
- front 3350 mm
- side 2570 mm
Work height 550 mm

Table
Size 4900×2500 mm

Ram
Size 4900×2500 mm
Stroke, adjustable 1700 mm
Speed:
- approach 300 mm/s
- working 8÷28 mm/s
- reverse speed 250 mm/s

Cushions
Lower cushion:
- stroke 350 mm
- speed 80 mm/s
Upper cushion:
- stroke 150 mm
- speed 125 mm/s

Tool
Max size 4900×2500×1100 mm
Max weight 50000 kg

Safety
Emergency stop time 300 ms
Safety distance 610 mm (Number of service personnel 1 in front of the press)

Power and weight
Power:
- supply 400V / 50 Hz
- consumption 115 kW
Weight, ca. 175000 kg
Control: Conventional
Year: 2002
Location : Europe
