Used 2004 CORREA _UNKNOWN_ Gantry Machining Centers (incld. Bridge & Double Column) | TBS Machines #539880
Used

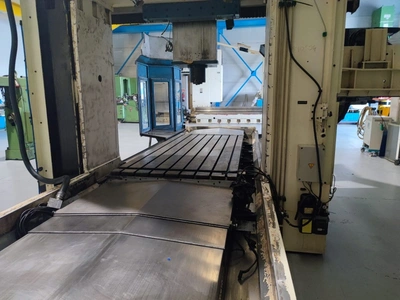

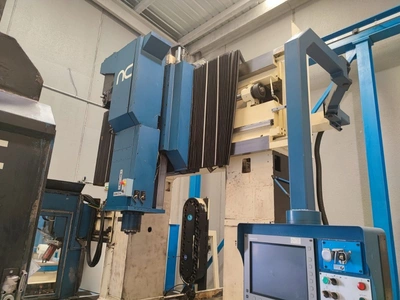

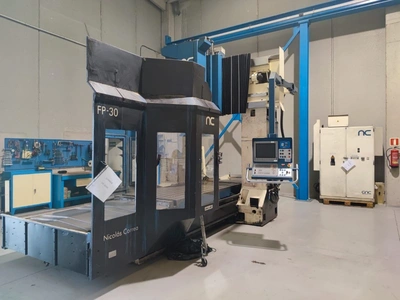

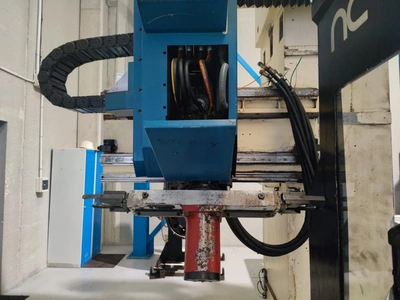

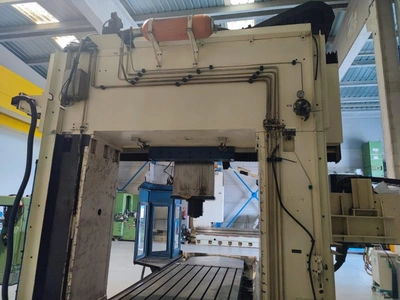

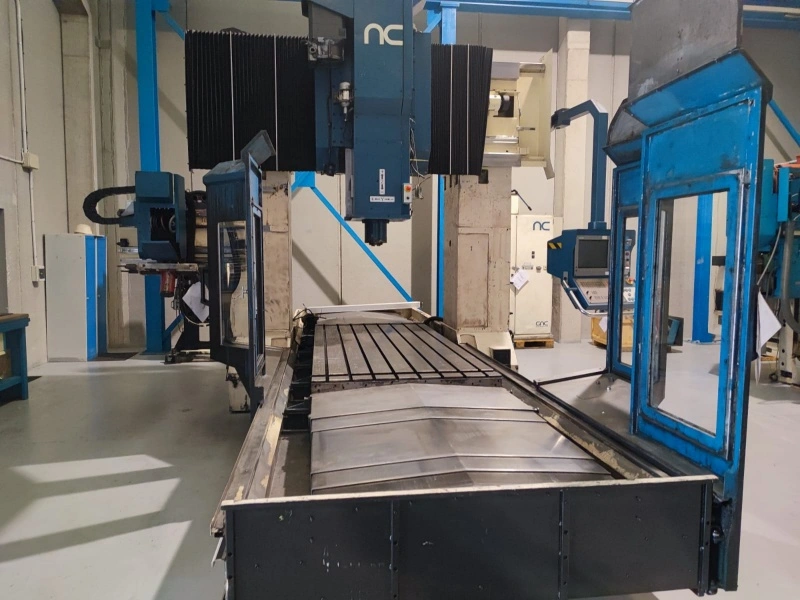

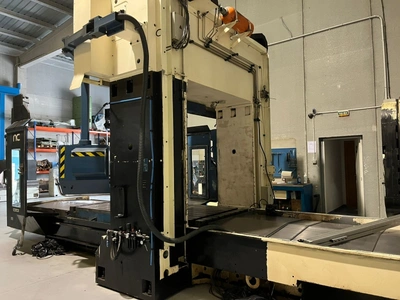

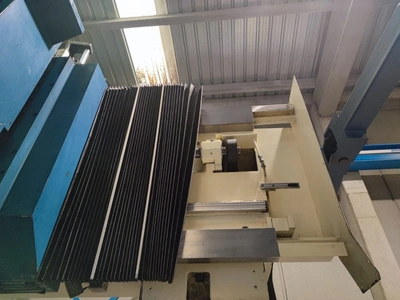

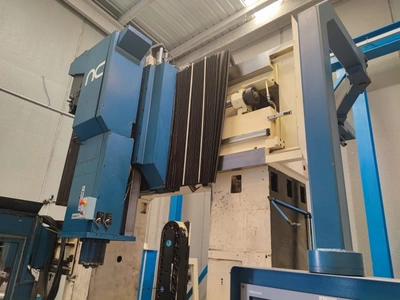

CORREA Plano Mill, very good working condition, VIDEO, only 7883 hrs spindle on

Asking Price
USD $88,616.68
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

TBS Machines
823Listings|32Followers
View seller profile
Overview
Gantry Machining Centers (incld. Bridge & Double Column)
CORREA2004

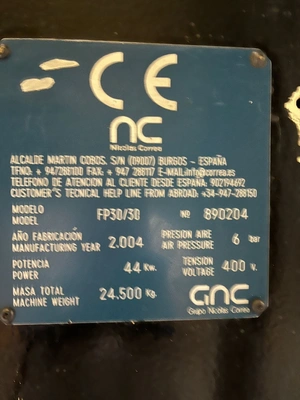

FP30/30, table 3000×1250 mm, XYZ 2500×2000×800 mm, DBC 1740 mm, spindle 5000 rpm / ISO 50, 30× ATC

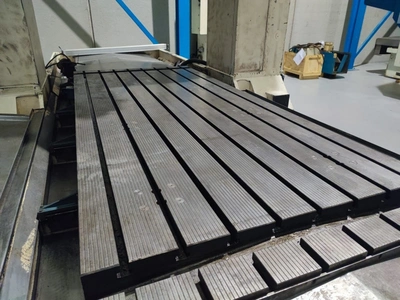

Table size 3000×1250 mm
Number of T-slots 8
T-slots width 22 mm
Distance between T-slots 150mm
Max table load 10000 kg
X axis travel: 2500mm
Y axis travel: 2000mm
Z axis travel: 800mm
Distance between columns 1740mm

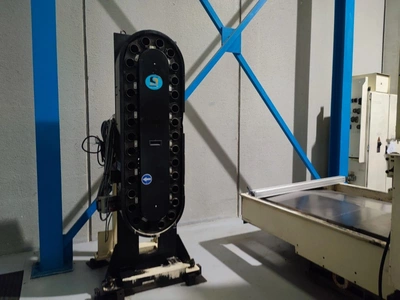

30× ATC
Tool taper ISO 50
Spindle speed 5000 rpm variable
Feeds:
X 15.000 mm/min
Y/Z 12.000 mm/min
Main motor power 30 kW
Overall dimensions L×W×H 7000×5000×3950 mm
Weight 25000 kg

Hydraulic tool locking
Through tool coolant
Swarf conveyor
Guarding

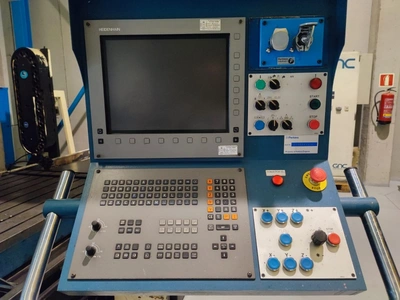

Control: CNC, HEIDENHAIN TNC 426
Machine is in working condition, only 7883 hrs spindle on.
Price should be understood ExWorks (INCOTERMS®).
Year: 2004
Location : Europe
