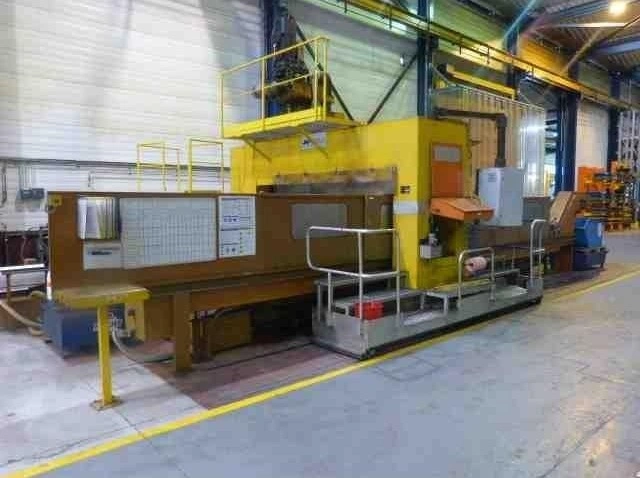

MULTINORMA CNC Gantry Type Plano Mill, good used condition, visible under power, retrofitted 2015, POA

used

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.
MULTINORMA CNC Gantry Type Plano Mill, good used condition, visible under power, retrofitted 2015, POA

MULTINORMA CNC Gantry Type Plano Mill, good used condition, visible under power, retrofitted 2015, POA

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Gantry Machining Centers (incld. Bridge & Double Column)
Manufacturer:
Multinorma
Stock #:
4131
Description

6003 25-50, table 2100×5100 mm, XYZ 5000×2500×1000 mm, 3100 mm BC, spindle 3000 rpm / 22 kW, 36× ATC ISO 50, through spindle coolant
Table
Size 2100×5100 mm

Travels
X-axis 5000 mm
Y-axis 2500 mm
Z-axis 1000 mm

Frame
Distance between columns 3100 mm
Max distance between table surface and spindle nose 1100 mm

Spindle
Speeds range
- 1st step 0÷750 rpm
- 2nd step 750÷3000 rpm
Motor power 22 kW

Feeds
Work 5000 mm/min
Fast 12000 mm/min

ATC
Tool positions 36
Tool taper ISO 50

Complete with
4× 90° heads
ECS 901 controller (retrofitted in 2015)
Through spindle coolant
Control: CNC, ECS 901
Location : Europe
