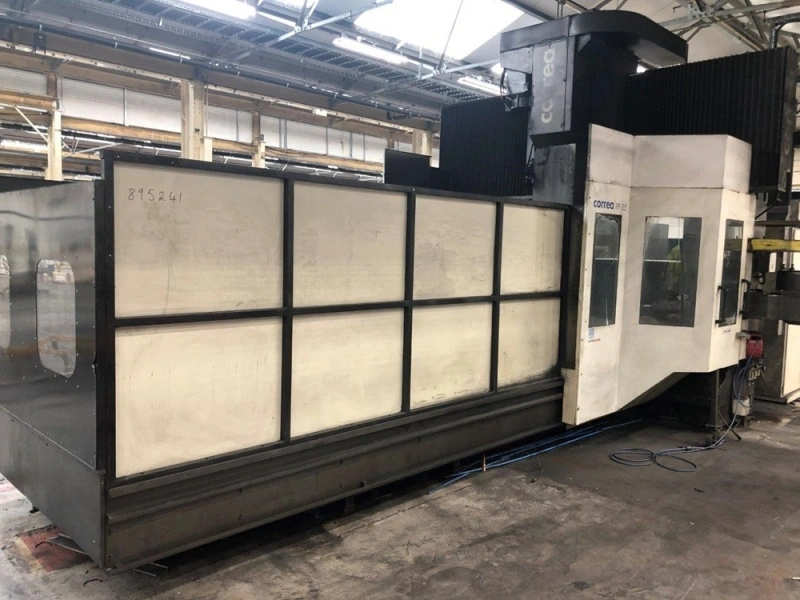

CORREA 5-face Bridge Type Plano Mill, in excellent condition, POA

CORREA 5-face Bridge Type Plano Mill, in excellent condition, POA

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Gantry Machining Centers (incld. Bridge & Double Column)
Manufacturer:
CORREA
Year:
2008
Stock #:
4424
Description

FP 35, table size / load 4500×1500 mm / 10000 kg, XYZ 3500×2500×1000 mm, 2300 mm BC, spindle speed 5000 rpm, 30× ATC ISO 50

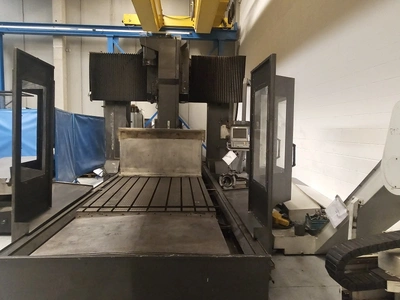

Table
Size 4500×1500 mm
Load 10000 kg
Number of T-slots 9

Distance between columns 2300 mm

Travels
X-axis 3500mm
Y-axis 2500mm
Z-axis 1000mm

Spindle
Max speed 5000 rpm

Feeds 15.000 mm/min

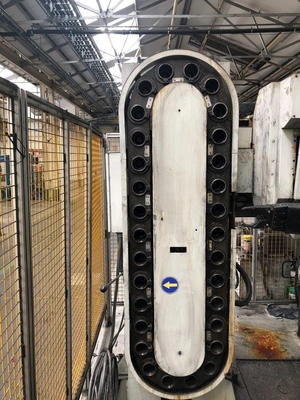

ATC
Tool posts 30
Tool taper ISO 50

Power, dimensions and weight
Motor power 30 kW
Overall dimensions L×W×H 11000×3440×4845mm
Weight 30500 kg

Complete with:

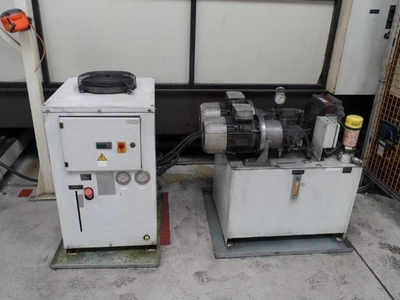

Hydraulic tool locking
Auto head orientation

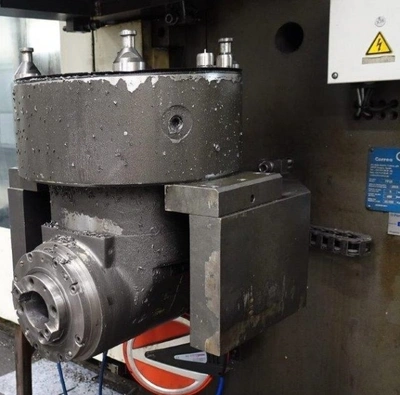

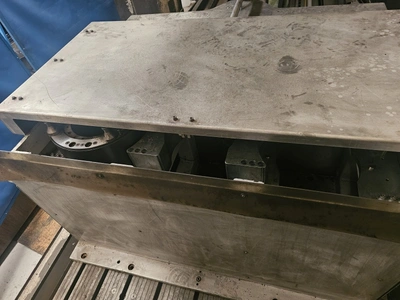

1× CH45 CNC milling head
Automatic head changer
Through tool coolant
Electronic Handwheel

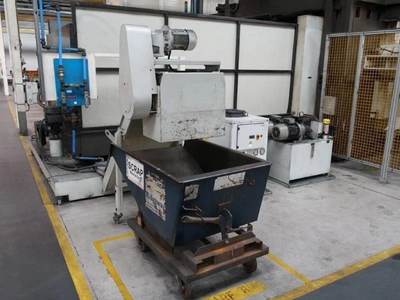

Swarf conveyor
Guarding

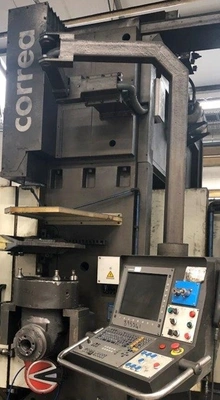

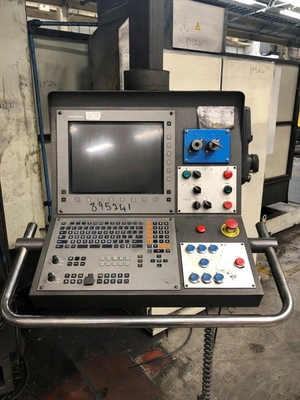

Control: CNC, HEIDENHAIN iTNC 530
Year: 2008
Location : Europe
