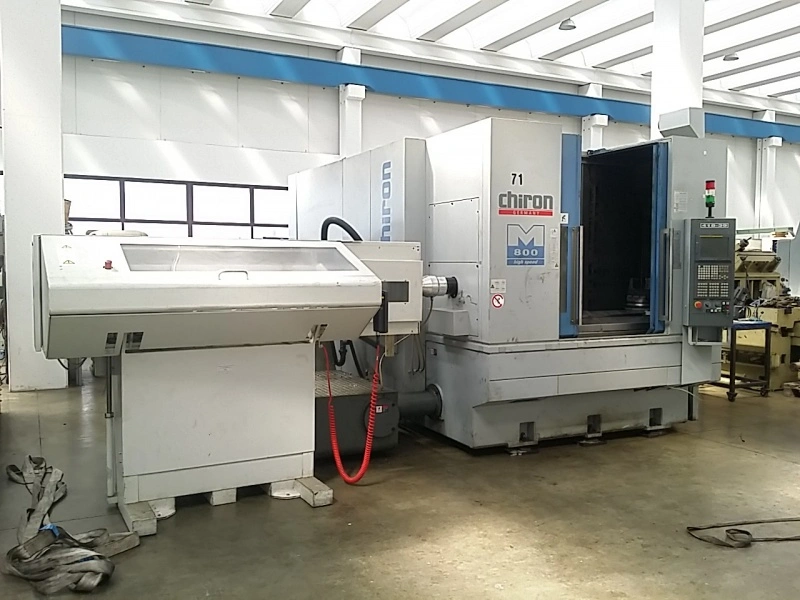

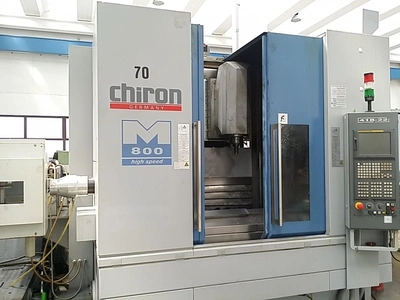

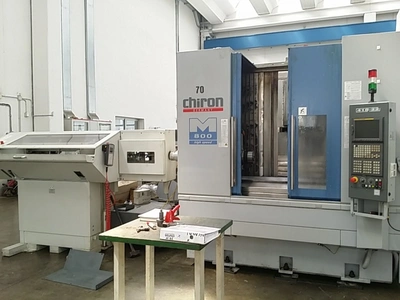

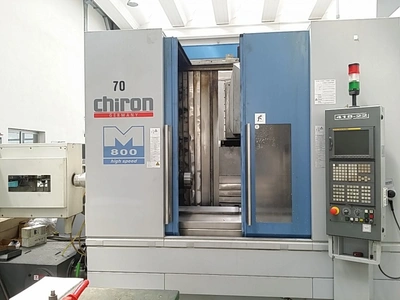

CHIRON 5-axis Universal Mill Turn Centre, very good condition, visible under power, VIDEO

used

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.
CHIRON 5-axis Universal Mill Turn Centre, very good condition, visible under power, VIDEO
  • CHIRON 5-axis Universal Mill Turn Centre, very good condition, visible under power, VIDEO
  • CHIRON 5-axis Universal Mill Turn Centre, very good condition, visible under power, VIDEO
  • CHIRON 5-axis Universal Mill Turn Centre, very good condition, visible under power, VIDEO
  • CHIRON 5-axis Universal Mill Turn Centre, very good condition, visible under power, VIDEO
  • CHIRON 5-axis Universal Mill Turn Centre, very good condition, visible under power, VIDEO
  • CHIRON 5-axis Universal Mill Turn Centre, very good condition, visible under power, VIDEO

CHIRON 5-axis Universal Mill Turn Centre, very good condition, visible under power, VIDEO

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Universal Machining Centers
Manufacturer:
CHIRON
Year:
2006
Stock #:
3547
Description

MILL 800, table size / load 1400×500 mm / 1200 kg, XYZ/B 800×500×550 mm / ±100°, mill / turn spindle 12000 / 6000 rpm, 65× ATC HSK-A 63, barload, swar
Table
Size 1400×500 mm
Load 1200 kg

Travels
X-axis 800 mm
Y,-axis 500 mm
Z-axis 550 mm
B-axis ±100°
Rapids (Highspeed) 60 m/min

Spindles
PEISELER turning spindle 6000 rpm
Milling spindle 12000 rpm / 140 Nm
Coolant through spindle 70 bar

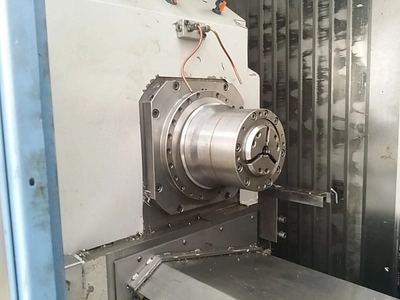

Turning package
Max diameter ø65mm
Speed 15÷4500 rpm
Motor 42,5 kW / 90 Nm
Hydraulic clamping 800 Nm

ATC
Positions 65
Taper HSK-A 63 DIN 69893
Tool-change time 1,5 sec

Weight 7500 kg

Complete with:
CNC controlled swiveling head (B-axis)

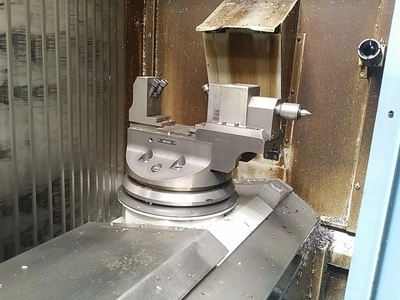

CNC controlled clamping/rotating unit for 6th face machining
Pressurized linear encoders
Swarf conveyor
Renishaw-ready
ILS-RBK - 10012 65 Bar loader, capacity D×L ø5÷ø65×600÷1200 mm
Control: CNC, FANUC 18i-MBS
Year: 2006
Location : Europe
