HAAS 5-axis Universal Machining Centre (2021), top condition, POA

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Universal Machining Centers
Manufacturer:
HAAS
Year:
2021
Stock #:
4598
Description

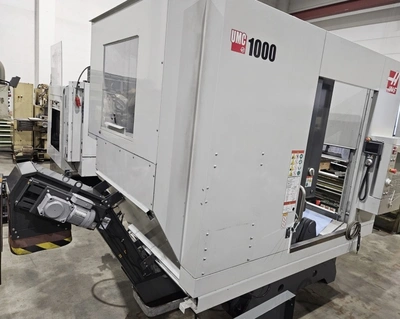

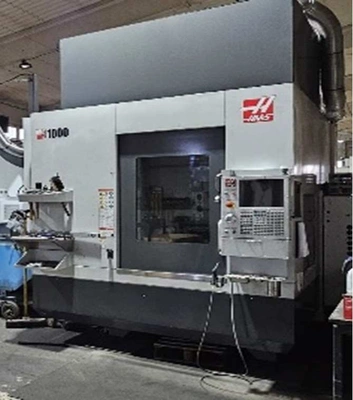

UMC-1000, table size / load ø635 mm / 454 kg, XYZ 1016×635×635 mm, spindle speed / power 8100 rpm / 22.4 kW, 30+1× ATC SK 40

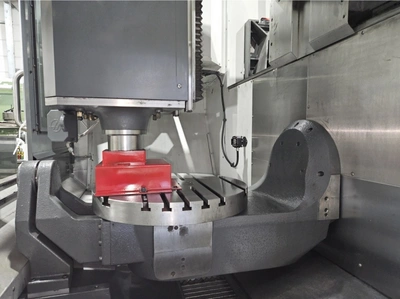

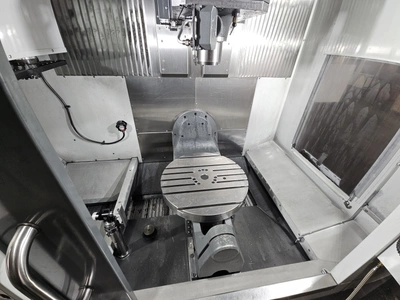

Table
Diameter ø635 mm
Max load 454 kg
Distance between spindle nose and table 102÷737 mm

Travels
X-axis 1016 mm
Y-axis 635 mm
Z-axis 635 mm
B-axis +120° ÷ - 35, max 50°/sec
C-axis 360°, max. 50°/sec
Rapid traverse XYZ 22.9 m/min

Spindle
Max speed 8100 rpm
Direct drive motor power 22.4 kW

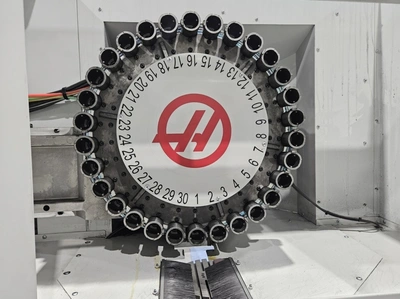

ATC
Tool positions 30+1
Tool taper SK 40
Max tool weight 5.4 kg
Tool change time 2.6 seconds

Weight of the machine ca. 7500 kg

Complete with:

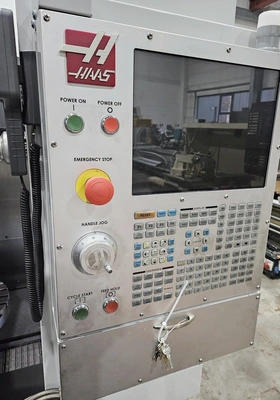

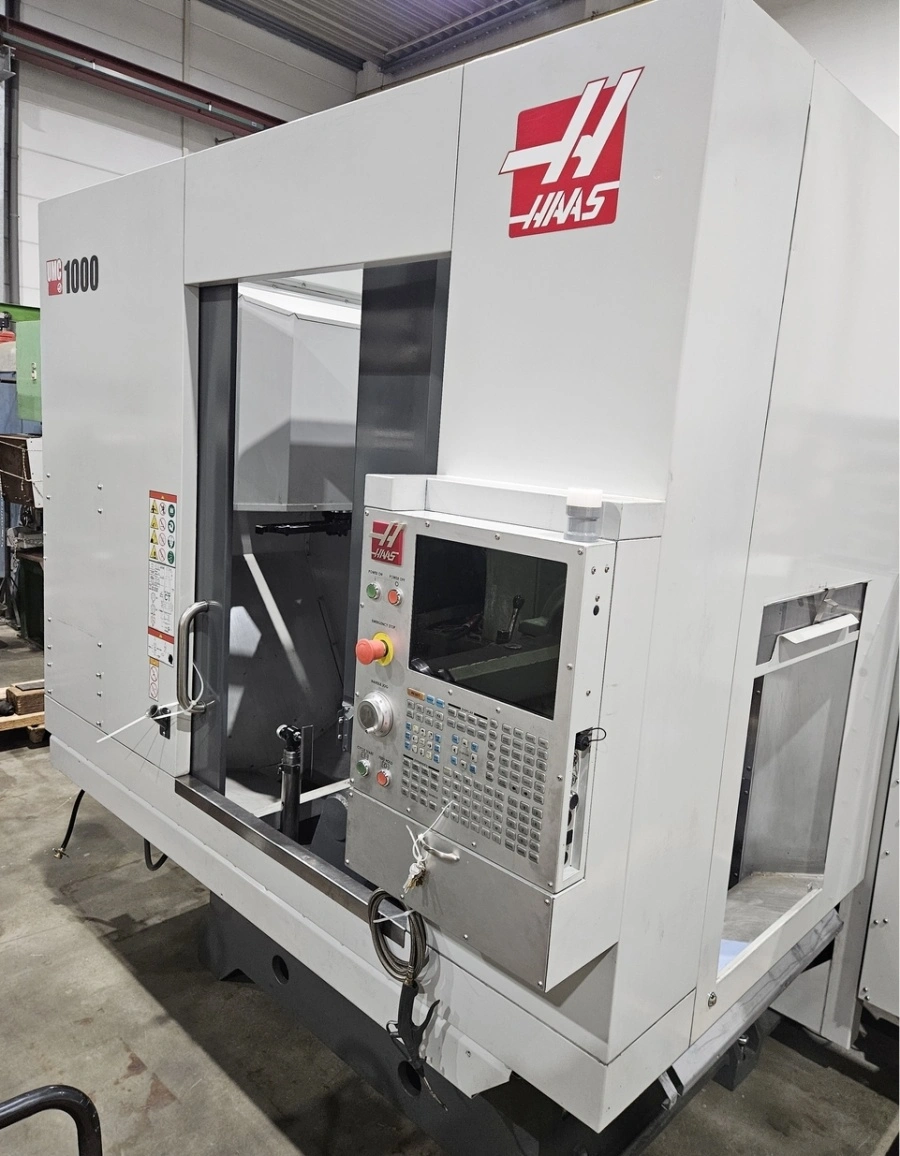

HAAS control with touchscreen control panel
Network interface and Wi-Fi connection
1 GB part program memory
Power failure detection module

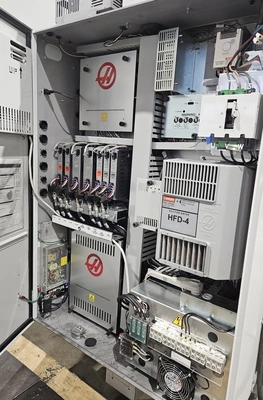

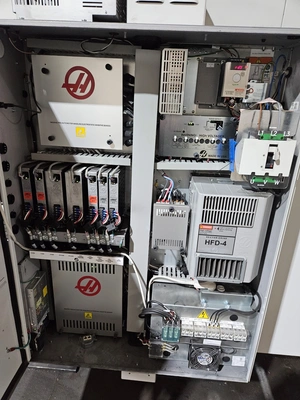

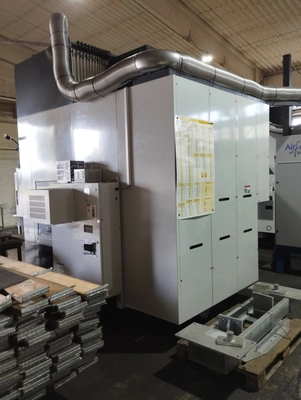

Control cabinet with air conditioning
Wireless probing system
Coolant system
Programmable coolant nozzle
Internal coolant supply, prepared for retrofitting
Chip conveyor
Control: CNC, HAAS
Manufactured 2021, ran 2022. Power on ca. 4300 hr, cycle start time ca. 2200 h.
Year: 2021
Location : Europe
