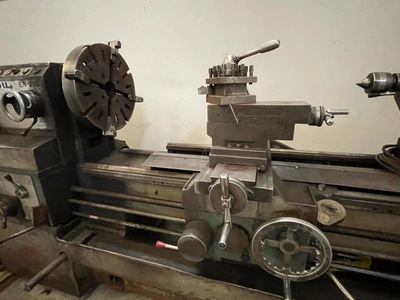

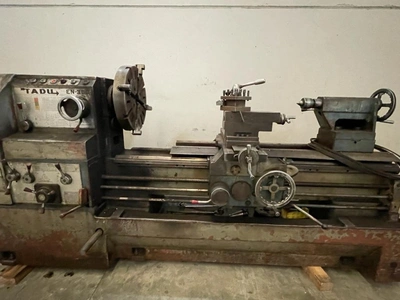

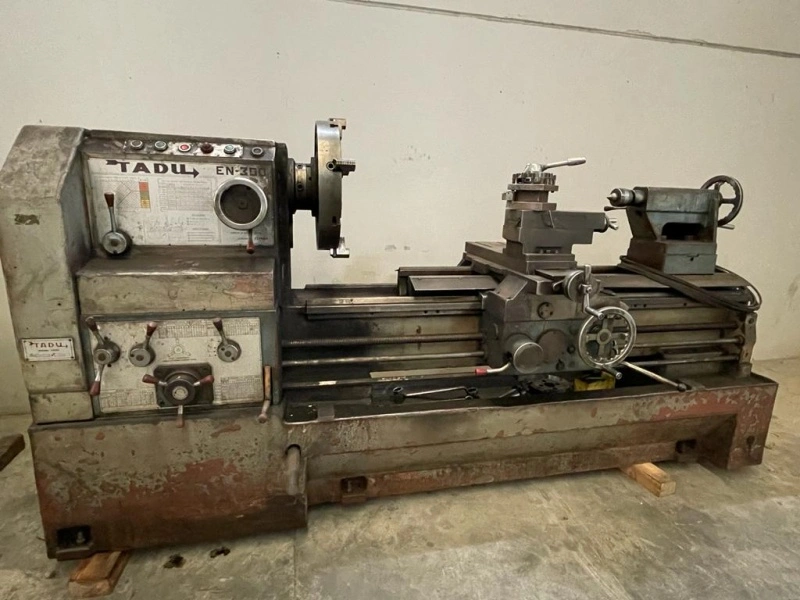

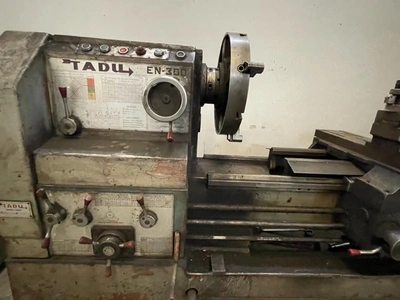

EN-300, swing over bed / carriage ø600 mm / ø490 mm, between centres 1500 mm, chuck ø500 mm, tailstock, thread counter
Swing over:
- bed ø600 mm
- cross slide ø490 mm
Distance between centres 1500 mm
Spindle speeds range 23÷1250 rpm
Spindle bore ø59 mm
Overall dimensions L×W×H 3000×1300×1500 mm
Weight 3030 kg
Equipped with:

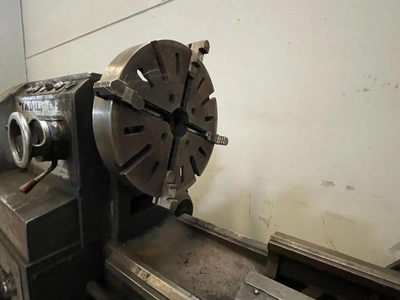

4-jaws chuck ø500 mm
4-posts standard turret toolholder
Thread counter
Control: Conventional
Price should be understood ExWorks (INCOTERMS®) loaded.
Location : Europe
