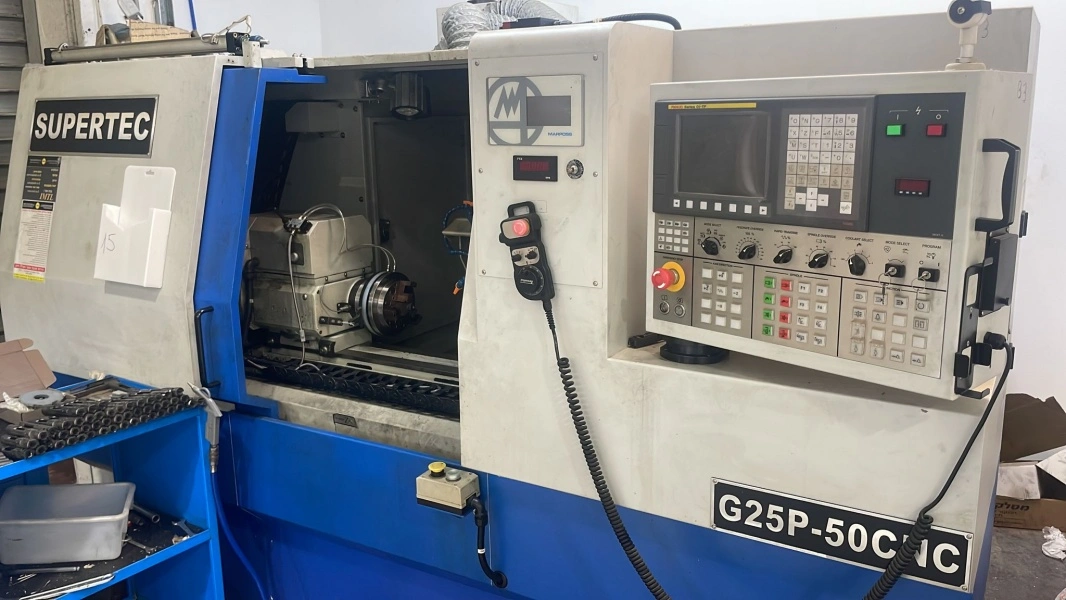

G25P-50 CNC, capacity ø230×500 mm, accessories, CE-mark
Capacity
Swing Over Table 254 mm (10″)
Max Grinding Diameter ø230 mm (9″)
Distance Between Centers 508 mm (20″)
Max Load Between Centers 80 kg (176 lbs)
Grinding Wheel
Dimensions Diameter × Bore × Width ø457 mm (18″) × ø127 mm (5″) × 50 mm (2″)
Speed 1,650 RPM
Max Peripheral Speed 118′ /sec
Wheelhead
Sliding Angle 90°
Automatic Rapid Traverse 6000 mm/min (236″/min)
Infeed Travel 160 mm (6.3″)
Least Input Increment 0.001 mm, (0.000040″)
Tailstock
Quill Travel 254 mm (1″)
Center Taper MT 3
Workhead
Spindle Speed 50÷500 rpm (variable)
Center Taper 5C (opt. MT 3)
Spindle Type Fixed and Rotary
Diameter of Bore ø20 mm (0.79″)
(Optional) Internal Grinding
Spindle Speed 14,000 rpm (opt. 25,000 rpm)
Grinding Bore ø24 mm (15/16″) ÷ ø70 mm (2 3/4″)
Max Grinding Length ø70 mm (2 3/4″)
Max Chucking Length 273 mm (10 3/4″)
Max Chucking Diameter ø110 mm (4 1/3″)
Table
Swiveling Angle 7°
Rapid Feedrate 0÷8000 mm/min (0 ÷ 315″ /min)
Least Input Increment 0.001 mm, (0.000040″)
Motor
Wheel Spindle Motor 5 HP (opt. 7 HP)
Mechanical Specifications:
Shipping Dimensions 2972 mm (117″) × 1854 mm (73″) × 2159 mm (85″) H
Shipping Weight approx. 3493 kg (7,700 lbs)
Standard Accessories:
FANUC Oi-TF Control
Grinding Wheel (ø405×ø127×50 mm) + Wheel Flange (ø127 mm)
Hydraulic Tailstock (MT3)
Coolant System with Magnetic Separator & Paper Filter (60 l/min, 140 l)
Transformer 15 kVA (380V)
Auto Door
Internal Grinding Attachment (25000 rpm)
MARPOSS OD Gauging Device
MARPOSS Touch Probe
Air 5C Chuck with Air Cylinder
Spare Wheel Flange (ø127 mm)
CE-mark
10 programmable speeds on wheelhead
One V and one flat guideway
Workhead swivels 90° CCW to 30° CWTable Dial Gauge
Infinite Variable Workhead
Coolant System with Mag. Sep and Paper Filter
Balancing Stand with Arbor
Diamond Dresser
Carbide Tip Centers
Semi-Enclosed Splash Guard
Wheel Extractor
Control: CNC, FANUC Oi-TF
Many pictures and videos available on request.
Year: 2017
Location : Not specified
