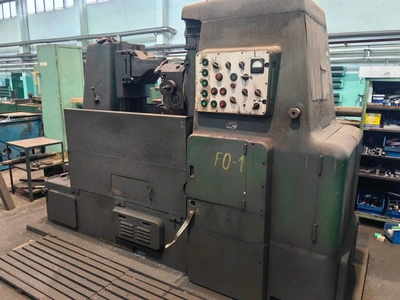

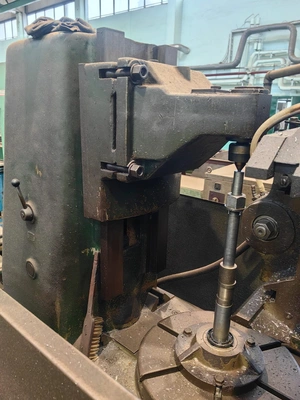

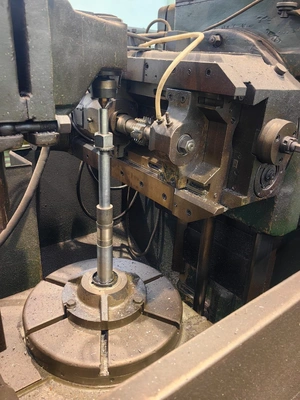

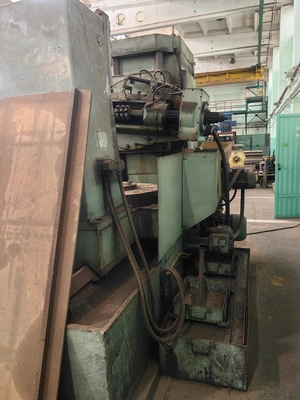

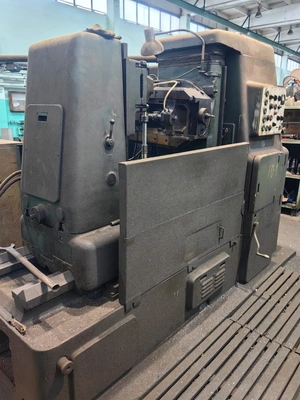

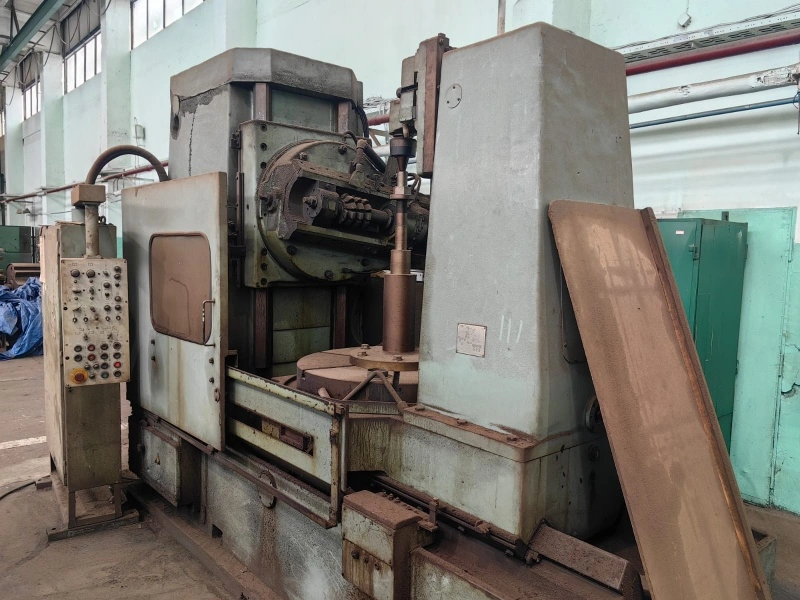

KOMSOMOLETZ Gear Hobber, in good used condition, POA

KOMSOMOLETZ Gear Hobber, in good used condition, POA

USD $25,139.41
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Gear Hobbers
Year:
1988
Stock #:
4144
Description

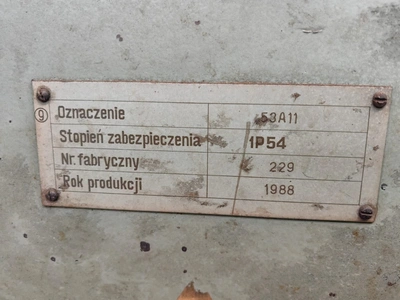

53A11, gear dia / module / helical angle ø1250 mm / 16 / 45°, table ø1000 mm, change gears
Capacity
Max gear diameter:
- without tailstock ø1250 mm
- with tailstock ø800 mm
Max module 16
Min teeth number 12
Max teeth angle ±45°

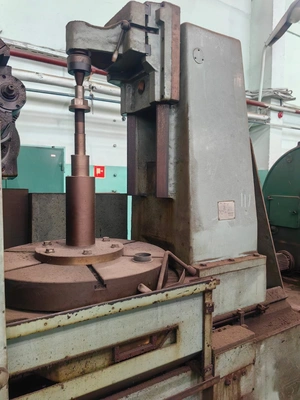

Table
Diameter 1000 mm

Frame
Distance b/n table axis and hob 100÷750 mm
Distance b/n table surface and hob axis 235÷835 mm

Travels
Max support vertical travel 650 mm
Max hob axial travel 245 mm

Feeds, mm/min:
- vertical 0,15÷40
- radial 0,06÷17,2
- tangential 0,04÷19,2

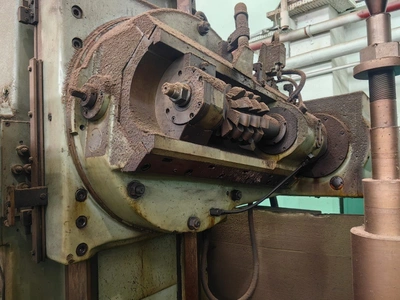

Hob
Max size D×L ø225×250 mm
Support taper Morse 6
Spindle speeds range 28÷270 rpm

Power, dimensions and weight
Main motor power 13/15 kW
Overall diamensions L×W×H 4020×2350×2780 mm
Weight 17,9 t

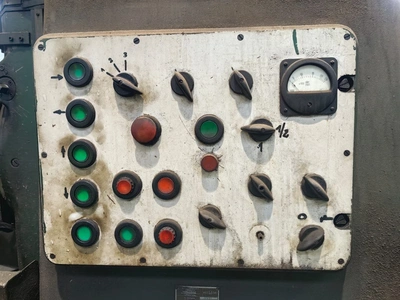

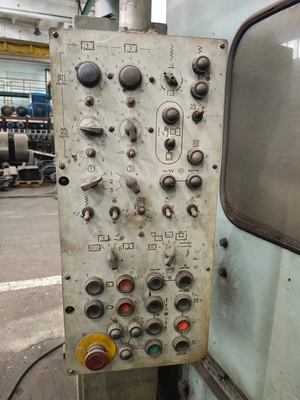

Control: Conventional
Year: 1988
Location : Europe
