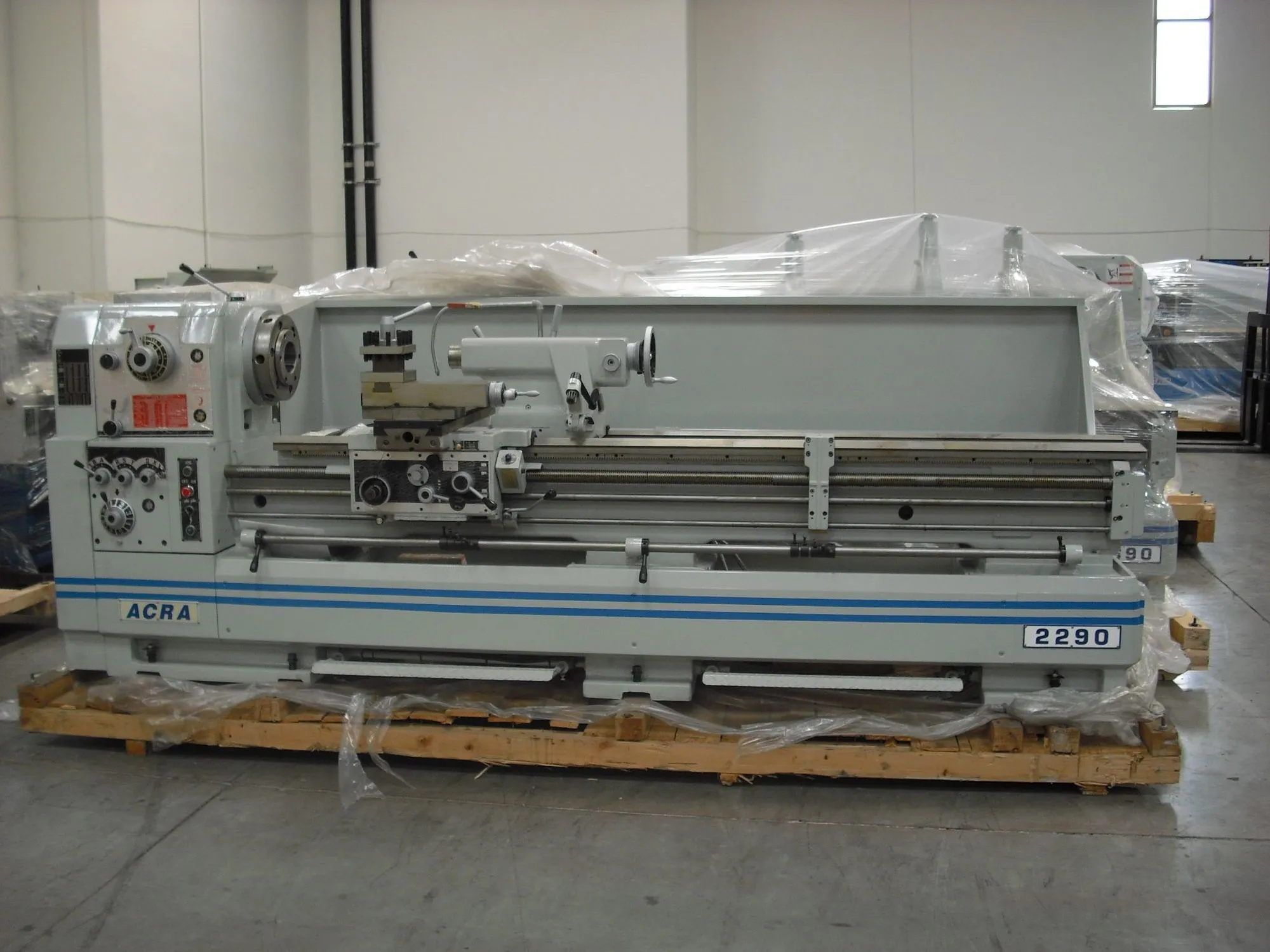

NEW 2025 ACRA 2290 ACH

OPTIONAL ACCESSORIES: PRICE
Steady Rest (1 3/5" - 10") .................................... $ 1,850.00
Large Steady Rest (7 1/2" - 15") ...........................$ 2,100.00
7" Follow Rest ........................................................$ 650.00
20" Face Plate ........................................................$ 650.00
Taper Attachment ....................................................$ 2,400.00
Newall Digital Read-Out-14" X 60" DP700............. $ 2,900.00
Newall Digital Read-Out-14" NMS300.................... $ 1,350.00
Newall Digital Read-Out-14" X 88" DP700...............$ 3,750.00
Newall Digital Read-Out-14" X 88" NMS300........... $ 1,650.00
Newall Digital Read-Out-14" X 120" DP700............. $ 4,495.00
Newall Digital Read-Out-14" X 120" NMS300......... $ 1,900.00

Acu-Rite Digital Read-Out-14" X 120" VUE............. $ 3,800.00

Digital Read-Out-14" X 120" 200S........................... $ 4,100.00
Sony........................................................................... P. O. R.
FAGOR...................................................................... P. O. R.
D.R.O. Installation..................................................... $ 375.00
Import Quick Change Tool Holder............................. $ 750.00
Live Center MT 5...................................................... $ 350.00
4 Jaw Chuck 20" (China)......................................... $ 1,500.00
4 Jaw Chuck 20" (Bison) ............................................ P. O. R.
Chuck Guard............................................................ $ 450.00
Turret Carriage Stop ................................................. $ 320.00
Micro Carriage Stop ................................................. $ 320.00
DIMENSIONS " X " X ", #7700 LBS
ELECTRICS 230/460V AC/3PH
SPINDLE SPEEDS 12 13-1200
SPINDLE NOSE D1-11
SPINDLE BORE 4-1/16"
DISTANCE BETWEEN CENTERS 120"
SWING OVER CROSS SLIDE 17 1/2"
SWING IN GAP 35 1/8"
SWING OVER BED 26"
