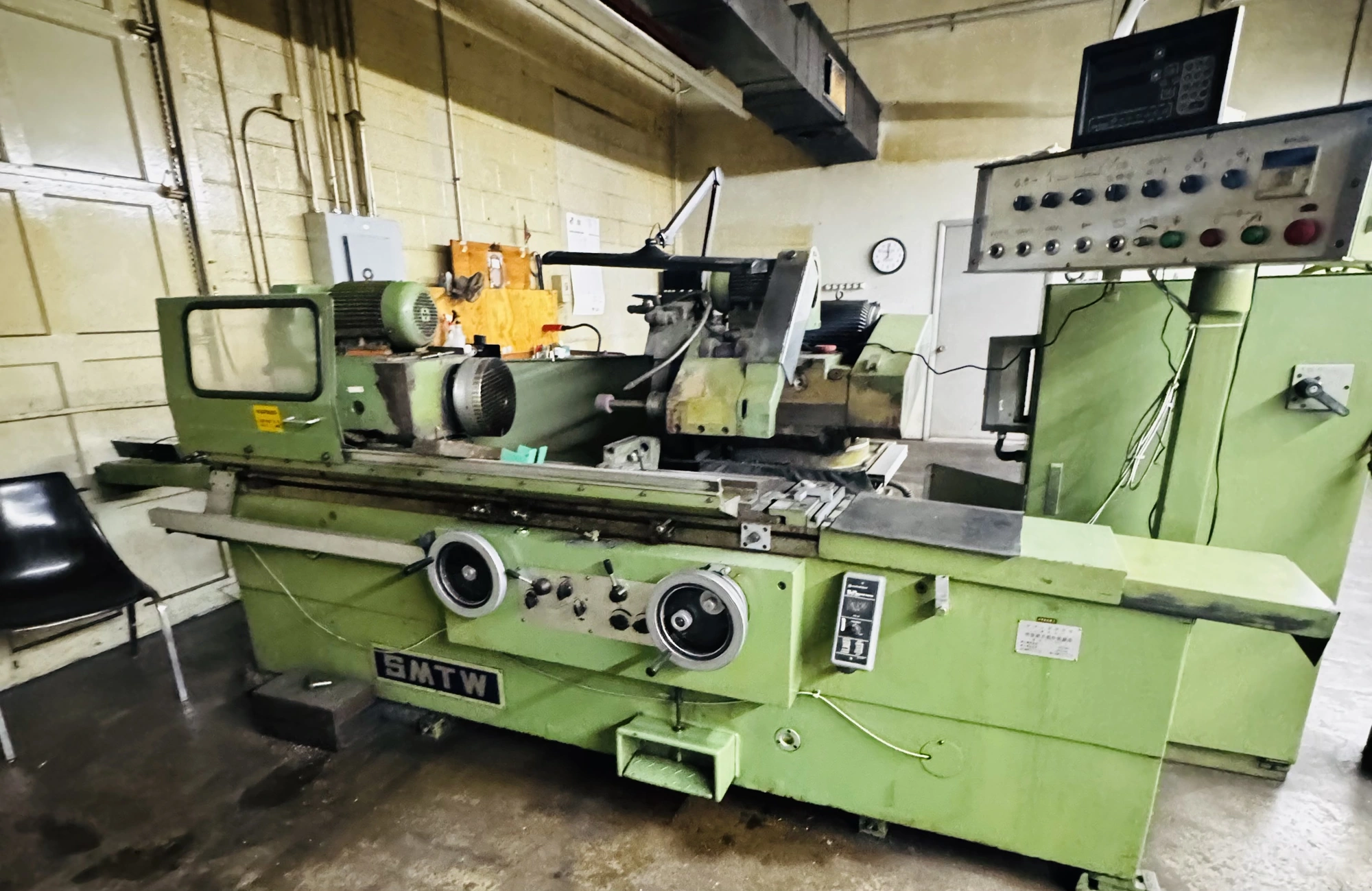

USED SMTW MG32A 32 X 1000

Internal Attachment, Maximum grinding diameter: 320mm, Maximum length: 1000mm

SMTW MG32AX1000 ID/OD Cylindrical Grinder

Max Grinding Diameter: 320 mm (approx. 12.6 inches)
Distance Between Centers: 1000 mm (approx. 40 inches)
Center Height: 180 mm
Swing Over Table: Approx. 320 mm
Grinding Wheel Size: Commonly 400mm
Workhead Speed: Variable, 20-250 RPM

Internal Grinding Capacity: Equipped with an internal grinding attachment for ID work
Key Features and Capabilities
Versatile Grinding: Capable of longitudinal (traverse) grinding and plunge grinding.
Universal Design: Features swiveling work head and wheel head bases, allowing for angle grinding, taper grinding, and internal diameter grinding.
Construction: Built with a heavily aged cast iron frame, which provides high rigidity, stability, and vibration damping.
Hydraulic System: Uses hydraulic power for table traversing and rapid infeed/outfeed of the wheel head.
