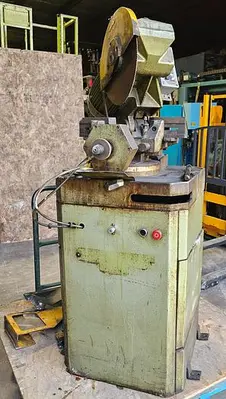

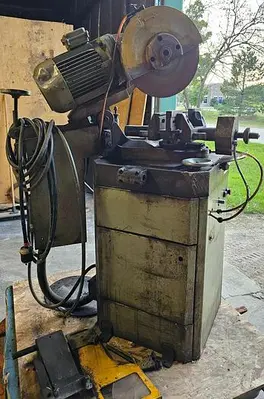

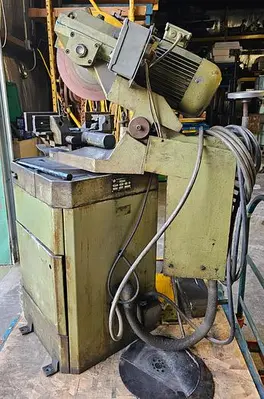

USED 1999 STARTRITE CP350SA

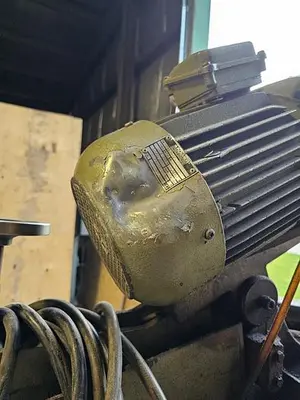

350mm Startrite Semi-Automatic Cold SawModel: CP350SA | Blade Size: 14" (350mm) | Type: Semi-Automatic Circular Cold SawOverviewThe Startrite CP350SA is a robust, high-precision semi-automatic cold saw designed for the clean, square cutting of ferrous and non-ferrous metals. The "Semi-Automatic" designation refers to its pneumatic/hydraulic control system: with a single press of the foot switch or button, the vise clamps the material, the blade starts and descends at a controlled rate, and then retracts to the home position after the cut is complete.This machine is ideal for production environments where burr-free, "milling-quality" cuts are required on tubes, pipes, and solid profiles. Unlike abrasive saws, this cold saw utilizes a slow-speed HSS blade and high-volume coolant to prevent heat buildup, ensuring the metallurgical integrity of the workpiece remains intact.Technical SpecificationsBlade Diameter: 14" (350mm)Cutting Capacity (90° Round): Approx. 4.5"Cutting Capacity (90° Square): Approx. 4.0" x 4.0"Mitering Capability: 45° Left / 45° Right (Swivel Head)Motor Power: 2-Speed Motor (Approx. 2.5 HP / 3 HP)Blade Speeds: 2-Speed (Typically 40 / 80 RPM for steel and stainless)Vise Operation: Pneumatic Dual-Clamping (Self-Centering)Coolant System: Integrated pump and reservoirElectrics: 440V | 3-Phase | 60HzWeight: Approx. 650 – 750 lbsKey FeaturesSemi-Automatic Cycle: Increases productivity and reduces operator fatigue by automating the clamping and stroke process.Dual Clamping Vise: Holds the material on both sides of the blade to ensure a burr-free cut and prevent the blade from binding at the end of the stroke.Oil-Bath Reduction Gearbox: Heavy-duty drivetrain ensures consistent torque and vibration-free cutting, leading to significantly longer blade life.Precision Mitering: The head swivels easily to 45° with positive mechanical stops, allowing for fast and accurate setup for frame and angle work.Cast Iron Construction: The massive saw head and base provide the rigidity necessary to maintain a squareness tolerance of ±.002" per diameter inch.

Blade Size: 14" (350MM)
Mitre Capability: 45*

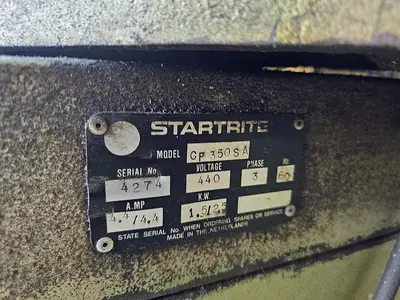

S/N: 4274

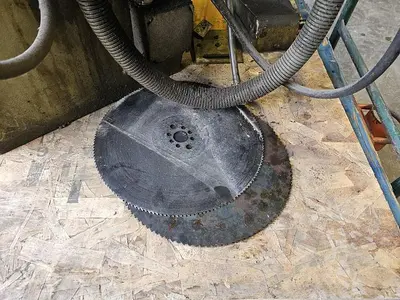

* Blade Diameter: 14" (350mm)
* Coolant System: Integrated pump and reservoir

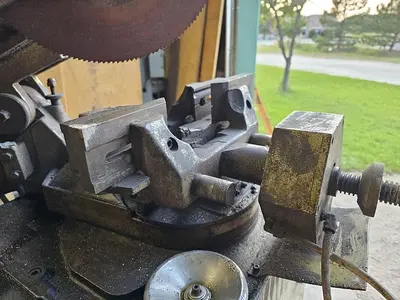

* Vise Operation: Pneumatic Dual-Clamping (Self-Centering)
