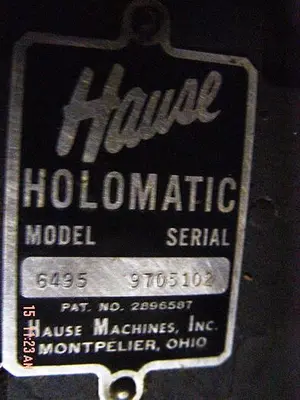

USED 1997 HAUSE 6495

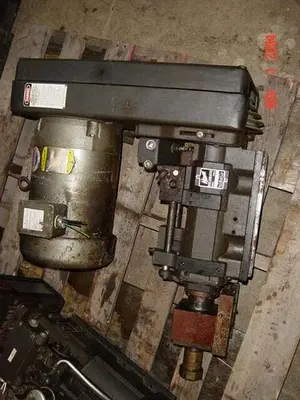

Hause Holomatic Model 6495 Hydraulic Drill HeadType: 4" Hydraulic Quill Unit | Thrust: 2,750 lbs | Capacity: 1-1/4" Mild SteelProduct OverviewThe Hause Holomatic 6495 is a premier industrial drilling unit designed for high-production automated environments. Engineered with a concentric construction and a massive 3-1/2" quill diameter, the 6495 provides the rigidity necessary for large-diameter drilling and heavy-duty tapping. Unlike standard pneumatic heads, this hydraulic-driven unit offers superior feed control and thrust, making it the industry standard for custom dial machines and automated transfer lines.Technical SpecificationsDrilling Capacity: Up to 1-1/4" diameter in mild steel.Maximum Thrust: 2,750 lbs at 500 P.S.I. (Advance).Stroke Length: 4" total travel (standard configuration).Feed Control: Patented pressure-compensated feed valve for ultra-smooth travel.Cycle Speed: 190 IPM rapid advance; rapid return capability.Repeatability: ± .001" depth accuracy (with short dwell).Centerline Height: 4-1/2".Key Performance FeaturesPrecision Feed Rate: The integrated feed valves allow for an adjustable advance rate from 1/4" to 125" per minute, ensuring optimized chip loads for various materials.Electrical Interlock: Equipped with built-in oil-tight limit switches for easy integration into PLC-controlled automation systems.Heavy-Duty Spindle: Features a spline-driven spindle designed to handle the high torque of 3 HP to 5 HP motors.Versatile Mounting: The unit is designed with a standard nose type that easily accepts multi-spindle heads for drilling multiple holes in a single cycle.
