USED 1985 EISELE VMS1PV

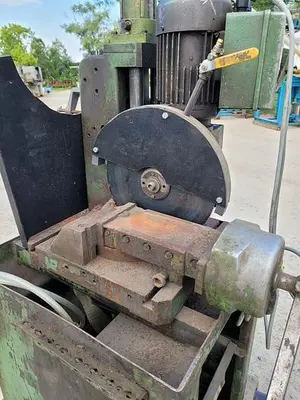

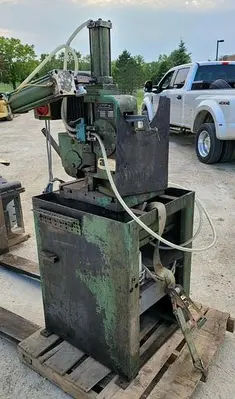

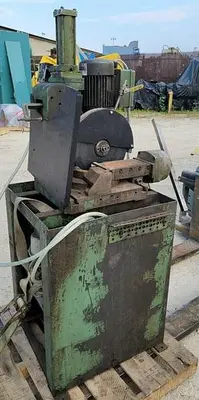

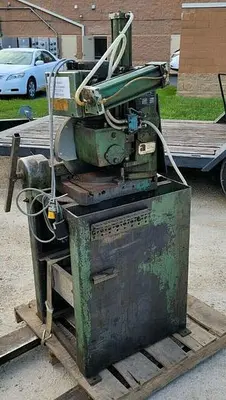

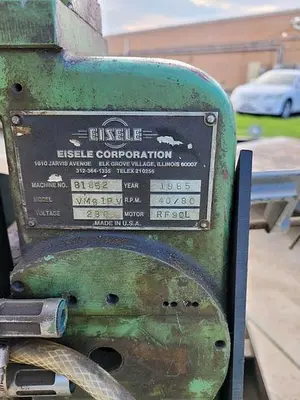

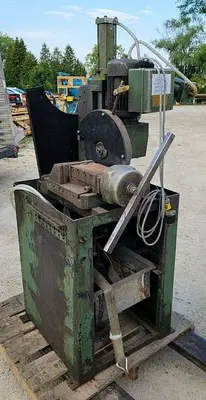

12" Eisele #VMS1PV Semi-Automatic Vertical Cold SawSerial Number: 81852 | Year of Mfg: 1985 | Origin: West GermanyOverviewAvailable is a West German-built Eisele VMS1PV, the gold standard in vertical-slide cold saws. This Semi-Automatic (PV) model is engineered for high-precision production environments where squareness and surface finish are non-negotiable. Unlike standard pivot-style saws, the VMS1PV utilizes a vertical guideway system, providing maximum rigidity and eliminating the "blade wander" common in mitering saws.With its robust worm-gear drive and pneumatic automation, this machine is ideal for cutting solid bar stock, heavy-walled tubing, and stainless steel with "tenths" accuracy and minimal vibration.SpecificationsBlade Capacity: 12" (300mm / 315mm)Cutting Capacity (90° Round): 4.0" (100mm)Cutting Capacity (90° Flat): 5.5" x 3.0" (140mm x 75mm)Miter Capacity: 45° Left / 90° / 45° RightBlade Speeds: 2-Speed (40 / 80 RPM)Operation: Semi-Automatic (Pneumatic Clamping & Head Stroke)Power: 230V | 3-Phase | 60HzWeight: Approx. 850 lbsKey Features & Included AccessoriesVertical Slide Design: The saw head travels on hardened and ground vertical guideways. This ensures the blade remains perfectly perpendicular to the workpiece throughout the entire stroke.Eisele Shock-Absorbing Gearbox: Features the legendary Eisele worm-gear system with internal rotation compensation. This reduces tooth-load vibration, significantly extending blade life and improving cut quality.Pneumatic Automation: Equipped with a pneumatic quick-acting vise and an adjustable pneumatic downfeed. The operator simply initiates the cycle via a foot switch/control, and the machine handles the clamp, cut, and retract sequence.Integrated Coolant System: High-volume submersible pump and internal reservoir provide flood cooling directly to the HSS blade for cool-to-the-touch parts and cleaner edges.Heavy Cast-Iron Base: Provides a stable, vibration-free platform for precision cutting in heavy industrial settings.

Modified item: No
Custom bundle: No
Item type: Cold Saw

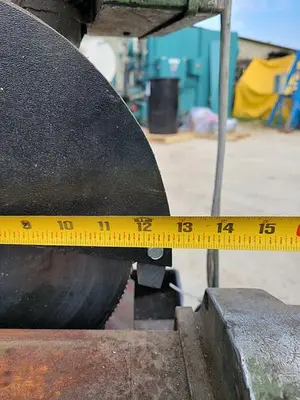

* Blade Capacity: 12" (300mm / 315mm)
* Weight: Approx. 850 lbs
